Installation guidelines
The reference to PGP914 throughout this manual includes the model PG9914.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.
Note: To comply with FCC and ISED Canada RF exposure compliance requirements, locate
the device at a distance of at least 20 cm from all persons during normal operation. Do not
co-locate the antennas used for this product, or operate them in conjunction with any other
antenna or transmitter.

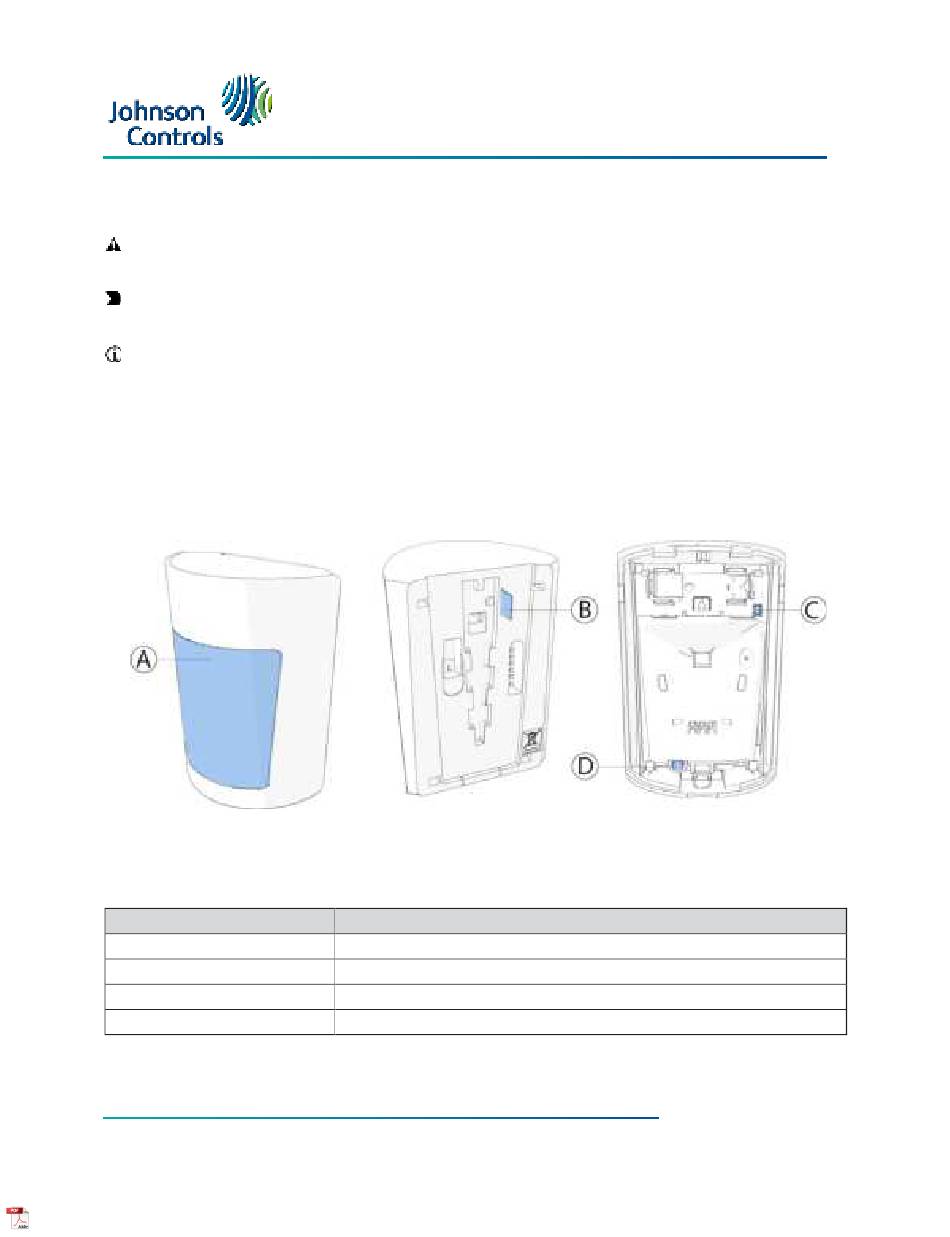

Figure 1: PGP914
Callout
A
B
C
D
PGP914 Wireless PIR Motion Detector
Description
Lens
Battery pull-tab
Enroll button
Tamper switch
D-308495 PGP914 Rev.0
Installation Guide
*D-308495*
D-308495
Advertisement
Table of Contents
Related Manuals for Johnson Controls PGP914
Summary of Contents for Johnson Controls PGP914
- Page 1 PGP914 Wireless PIR Motion Detector Installation Guide Installation guidelines The reference to PGP914 throughout this manual includes the model PG9914. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance.
-
Page 2: Configuring The Device Parameters
Note: If the device has been powered up for more than 2 hours it will be identified by the system only after the device has been reset. The PGP914 is enrolled with device ID 125-XXXX. In fall back mode it enrolls as PGx914 with device ID 126-XXXX. - Page 3 1°C (1.8°F) above the threshold for at least the Restore Delay duration. Note: The default threshold value for cold is 19°C (66°F). Optional settings: See Configuring the Temperature Alerts. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 4 1 °C (1.8 °F) below threshold for at least the Restore Delay duration. Note: The default threshold value for freezer is -10°C (14°F). Optional settings: See Configuring the Temperature Alerts. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 5 Push in the tab on the underside of the device and pull the cover upwards. See A2 in the previous figure. To close the device cover, clip the cover onto the device base and tighten the cover screw. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 6 Align the tabs on the sides of the pet mask with the holes on either side of the PIR sensor. See A2 in the following figure. Press down gently to install the pet mask. Figure 5: Installing the Pet Mask Close the device cover. See Figure 4. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
-
Page 7: Removing The Pet Mask
Peel the release liners off the two strips of double-sided adhesive tape and attach the tape to the back of the bracket. See Figure 7. Use option A for flat surface mounting and B for corner surface mounting. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0... - Page 8 Make sure to fasten the break-away segment to the frame. If the device is forcibly removed from the wall, this segment will break away from the base, causing the tamper switch to open. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 9 Break-away segment Align the device with the bracket. See A1 in the following figure. Slide the device upward until a click is heard. See A2 and A3 in the following figure. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
-
Page 10: Replacing The Battery
Remove the device cover. See Figure 3. Remove the battery. See A in the following figure. Insert the new battery while observing battery polarity. See B in the following figure. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0... -
Page 11: Local Diagnostics Test
The following table indicates received signal strength indication: Table 3: Signal strength indication LED response Reception Green LED blinks Strong Orange LED blinks Good Red LED blinks Poor No blinks No communication PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0... - Page 12 Note: It is recommended to have a strong signal strength and you must verify the signal strength using the control panel's diagnostic test. For detailed Diagnostics Test instructions, refer to the control panel installer guide. Figure 14: Coverage pattern walk test PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
-
Page 13: Specifications
Pet immunity Up to 38 kg (85 lb) Color White Compliance with standards The PGP914 complies with the following standards: PGP914 FCC (912 to 919 MHz): 47CFR part 15 ISED (912 to 919MHz): RSS-247 UL/ULC: UL 639, ULC S306 FCC and ISED Canada Compliance Statement This device complies with FCC Rules Part 15 and with ISED license-exempt RSS standard(s). - Page 14 The detector shall be installed and used within an environment that provides the pollution degree max 2 and over voltages category II in non-hazardous locations, indoor only. The equipment is PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
-
Page 15: Limited Warranty
This product is not to be thrown away with everyday waste. Directive 2012/19/EU Waste Electrical and Electronic Equipment. About PGP914 The PGP914 is a microprocessor-controlled wireless digital PIR detector, with optional pet immunity. The device has the following features: •... - Page 16 Software, without the written permission of an officer of DSC. You may not remove any proprietary notices, marks or labels from the Software Product. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 17 DSC shall not be responsible for problems caused by changes in the operating characteristics of the HARDWARE, or for problems in the interaction of the SOFTWARE PRODUCT with non-DSC- SOFTWARE or HARDWARE PRODUCTS. PGP914 Wireless PIR Motion Detector Installation Guide D-308495 PGP914 Rev.0...
- Page 18 SOFTWARE PRODUCT to fail to perform as expected. Website: www.dsc.com Tech. support: 1-800- 387-3630 D-308445 Rev. 0 (03/22) ©2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308495 PGP914 Rev.0...
