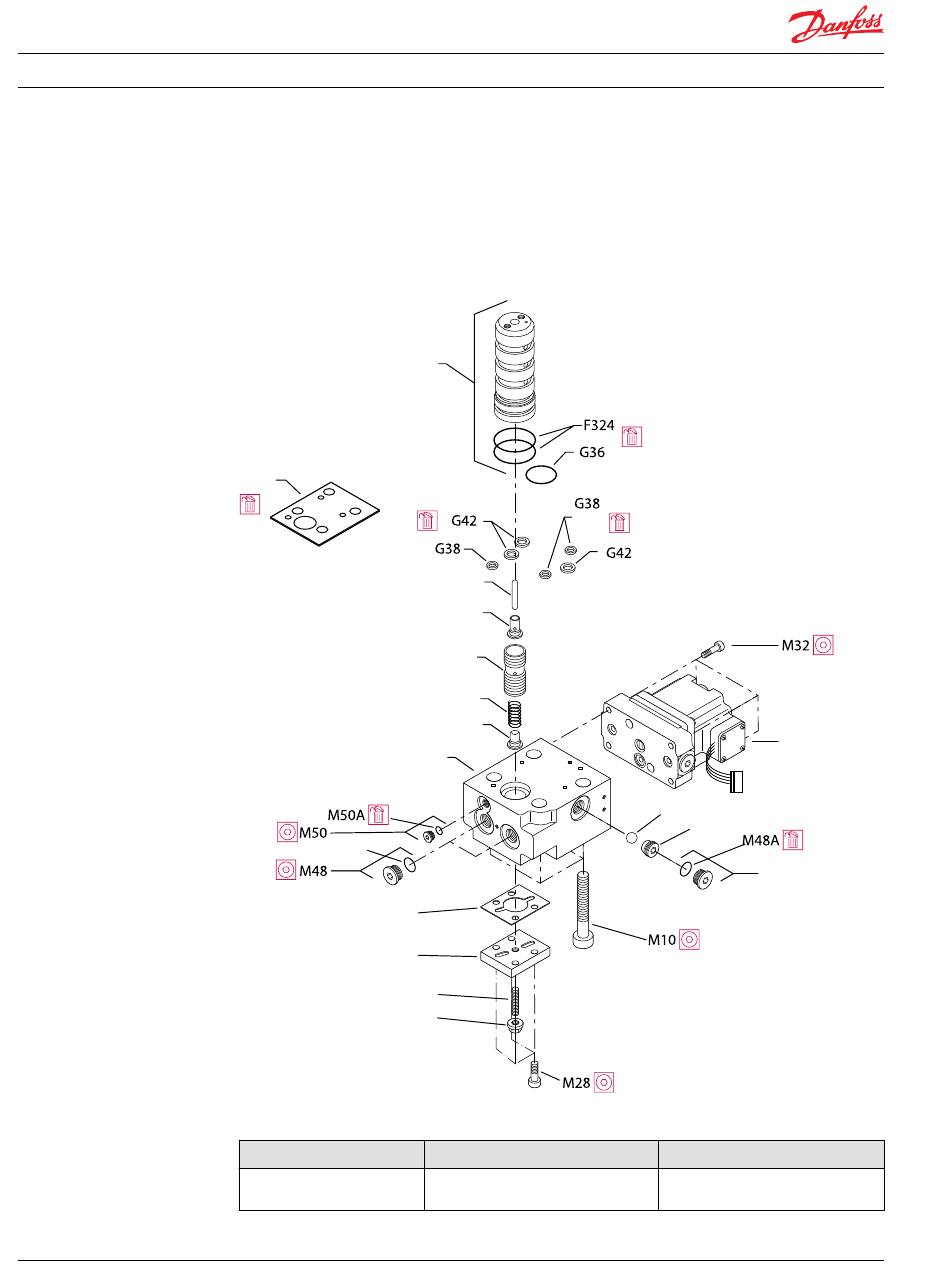

Series 51 Electrohydraulic Proportional Controls Service Manual
Disassembly
1. Using a 5/32 inch internal hex wrench remove screws (M32).
2. Remove the PCP (M30). The PCP has no repairable parts.
EE Controls
G420
M48A
M14
M12
M16H
Legend
Item
M10
(80, 110 cc)
11009448 • Rev BA • July 2014
F32
M26
M25
M24
M22
M20
M10
M18
Wrench size
8 mm internal hex
M30
M47
M46
M48
P101 934
Torque
78 Nm [58 lbf•ft]
