Service Manual
A7, L1, L2, L7 Controls

Schematic

Repair

Series 51 Electrohydraulic Proportional Controls Service Manual

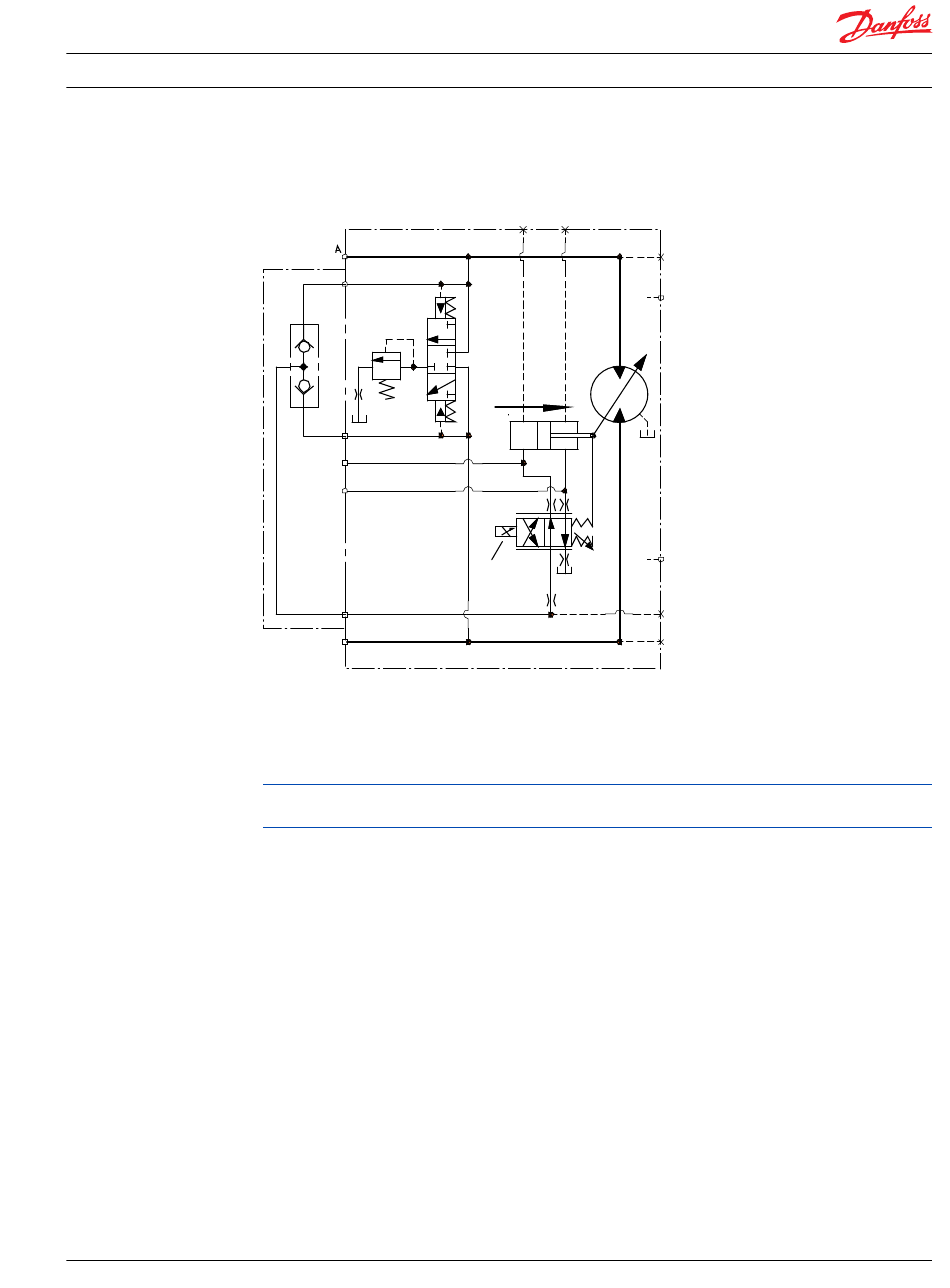

A7, L1, L2, L7 Schematic
Loop
flush
Check
valve
B
P101 904

Removing Solenoid

Solenoid (M1) is available as complete assembly only. Do not remove the solenoid unless it is being
replaced.
If replacing the solenoid (M1); remove plastic nut, remove coil, and use a 3/4 inch thin wrench to
remove solenoid.

Disassembly

1. Using a 1/8-inch internal hex wrench, remove plugs (M18).
2. Remove and discard O-rings (M18A).
11009448 • Rev BA • July 2014
M3
M4
Max.
displ.
Solenoid
M1
L1
L2
M5
M2
21
