Danfoss 51 Series Service Manual page 42
Electrohydraulic controls
Hide thumbs
Also See for 51 Series:
- Service manual (64 pages) ,
- Repair instructions (36 pages) ,
- Service kit instructions (2 pages)
Table of Contents
Advertisement
Service Manual
EP, EQ, ER, ES Controls
42

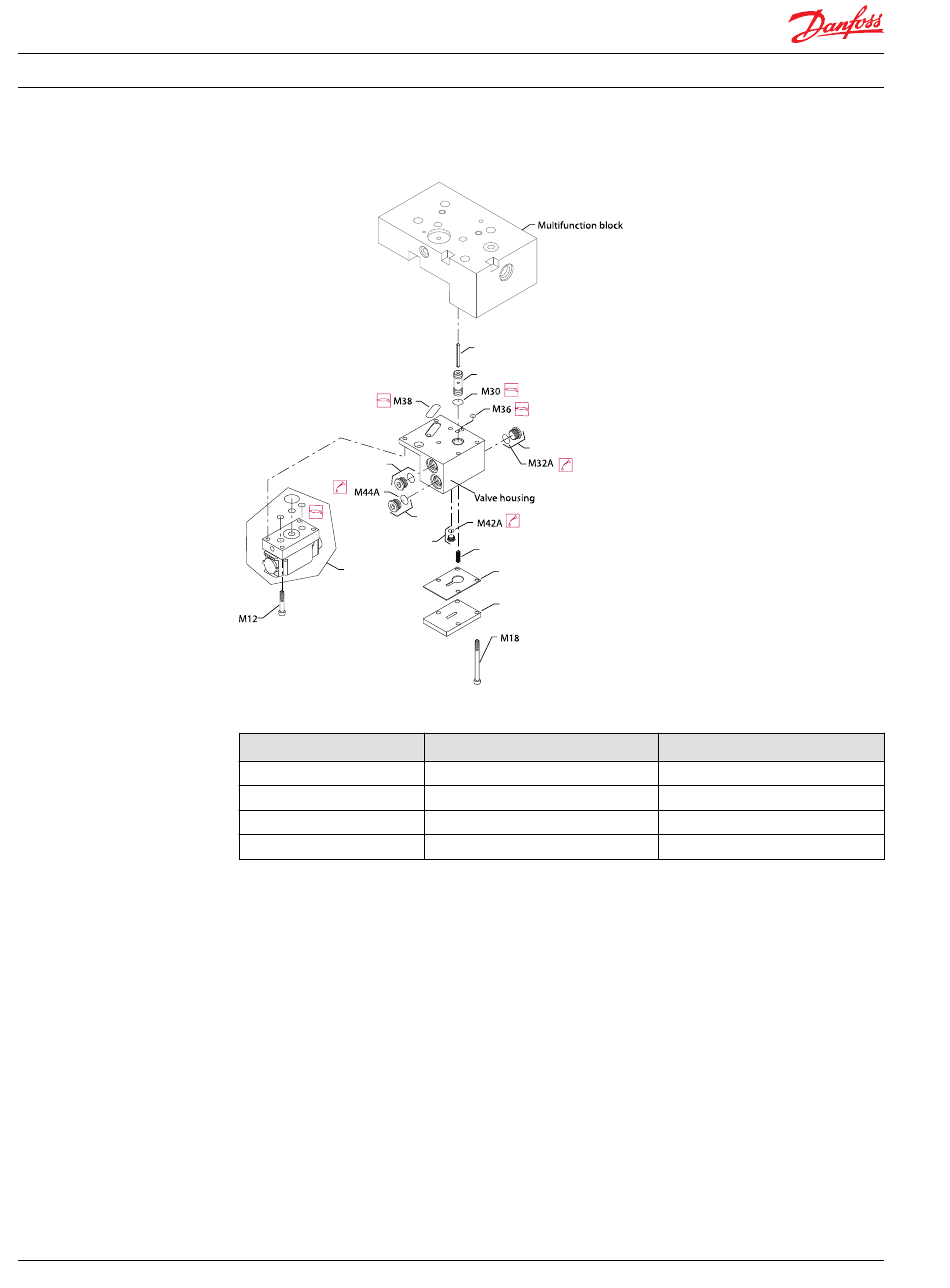

Series 51 Electrohydraulic Proportional Controls Service Manual
EP, EQ, ER, ES Control
M32
M1 (PCP)
Legend
Item
M18
M44, M32
M12
M42
11009448 • Rev BA • July 2014
M28
M24
M32
M44
M42
M26
M16
M14
Wrench size
4 mm internal hex
1/4 internal hex
5/32 internal hex
4 mm internal hex
P101 945
Torque
7 Nm [5 lbf•ft]
30 Nm [22 lbf•ft]
20 Nm [15 lbf•ft]
7 Nm [5 lbf•ft]
