Saddle Adjustment - Maxxus 4.2 Installation & Operating Manual

B37

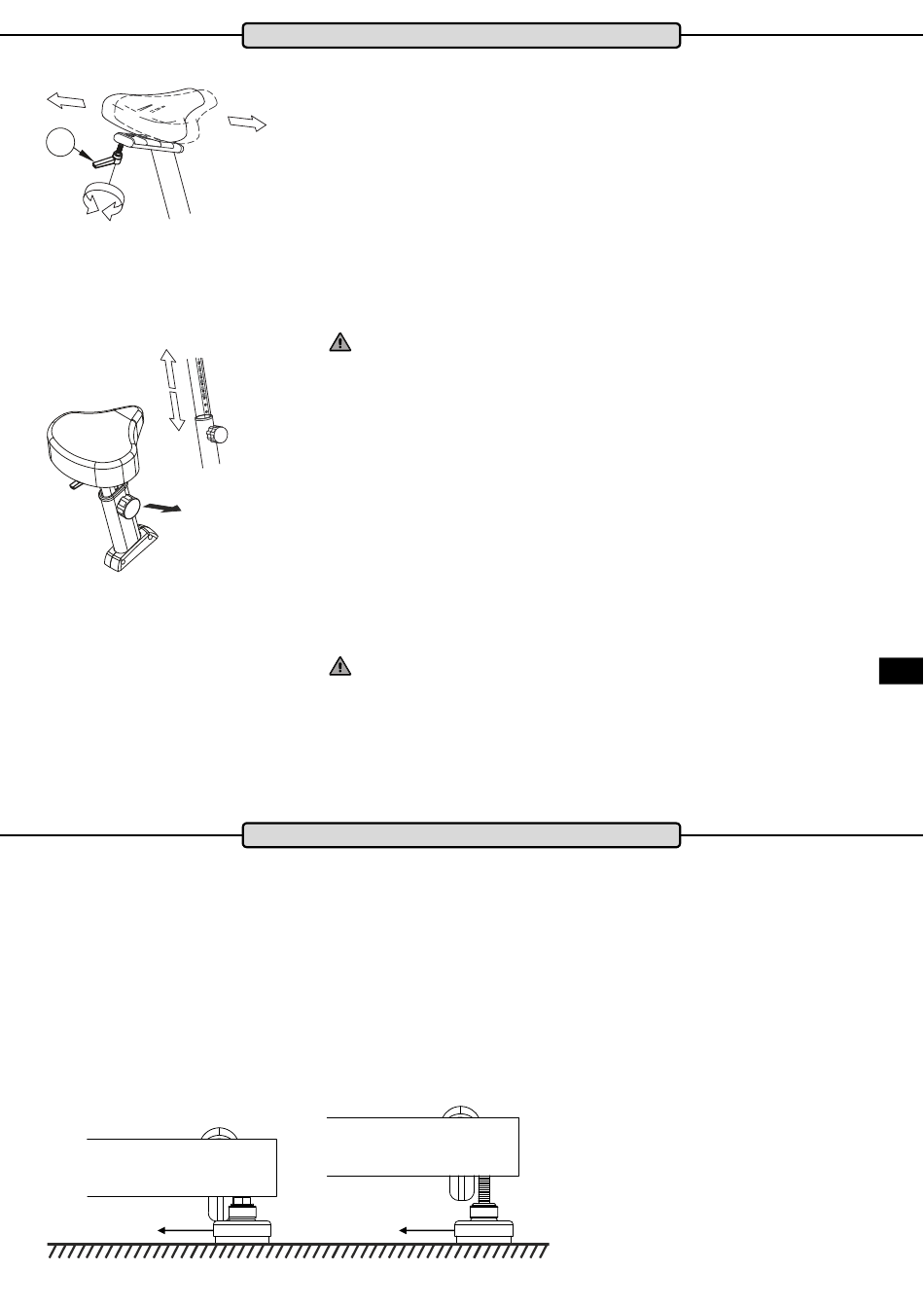

Position A
Adjustable foot

Saddle Adjustment

Horizontal Adjustment
You can adjust your saddle horizontally to set your optimum distance to the
handlebars. Loosen the hand lever (B37) below the saddle by turning it an-
ti-clockwise. Move the saddle to the desired horizontal position and retighten
the hand lever (B37) clockwise.
Vertical Adjustment
You can adjust the saddle position vertically to set your optimum distance to
the pedals. Loosen the knob located on the saddle support of the main frame
by turning it anti-clockwise.
WARNING:
Please note that the knob operates a quick-release system. You only have
to turn it anti-clockwise 2-3 times to unlock it, then pull on the knob to quick
release the saddle support. Hold the knob in this pulled position and then set
the desired saddle height. Let go of the knobl to engage the locking mech-
anism again. To do this, you may need to move the seat tube slightly up or
down to engage the mechanism in the corresponding seat support hole.
Tighten the knob clockwise again.
Setting the optimum saddle height:
Make sure you are wearig the shoes you want to wear during your work-
out. Comfortable running shoes or sports shoes are ideal. Adjust the pedal
position so that the right pedal arm is pointing vertically down and the right
pedal is at the lowest point of its radius of motion. Now sit on the saddle and
place the heel of your right foot on the right pedal. Your leg should be almost
completely straight. Adjust the saddle height until your right leg is almost fully
extended and then put the ball of the foot on the pedal. Now your leg should
be slightly bent. This is the ideal height adjustment for your saddle.
WARNING:
Never train with a seat height adjustment that fully extends your legs at the
lowest position of the pedals.
Levelling
Make sure that your exercise equipment is always level. In order to compen-
sate or minor bumps or slopes, adjustable eet are tted right and let on the
front and rear stands and on the sliding. To ensure that the device stands
level, rst turn all eet to the lowest position (position A). I necessary, adjust
the feet so that the training device is level and stable.
I the adjustment range o the adjustable eet is not sufcient to allow level
standing of the training device, please check the surface of the location. If
necessary choose a dierent location where a sae and level position o the
training device is ensured.
Position B
Adjustable foot
