Summary of Contents for Maxxus SpeedBike SX3

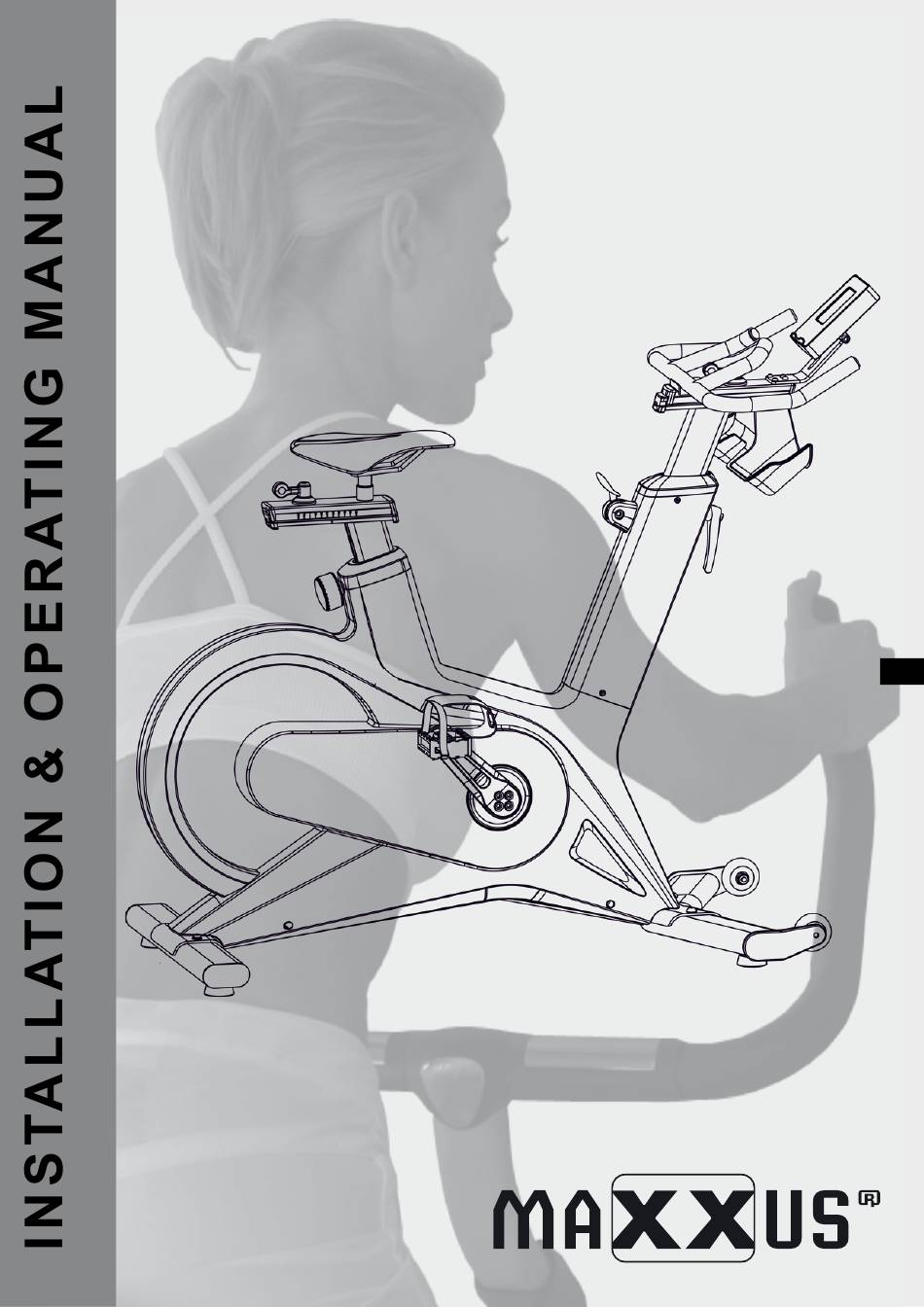

- Page 1 SpeedBike...
- Page 2 This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.
-
Page 3: Safety Instructions
Safety Instructions Before you start exercising, be sure to read the entire user guide, especially the safety information, the maintenance & cleaning in- formation and the training information. Take care too that everyone who uses this training device is also familiar with this information and observes it. -
Page 4: Overall View Of The Device

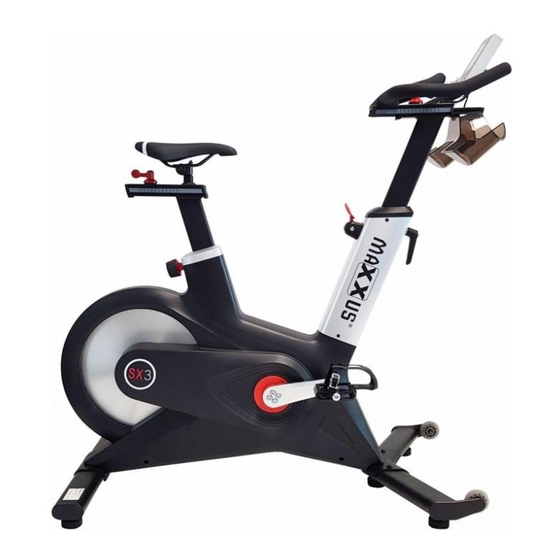

Overall View of the Device Description Description Cockpit Stand with transport rollers Lever to adjust the position of the handlebars Pedal Handlebars Stand, rear Handlebar Tube Knob to adjust the height of the seat Emergency Stop Lever Seat tube Bottle Holder Lever to adjust the seat backwards and forwards. -
Page 5: Scope Of Delivery
Scope of Delivery Description Qty. Description Qty. Base Frame Handlebar Tube Cockpit Seat Tube Bottle Holder Pedals Seat Cockpit Bracket Stand, front Set of Screws Stand, rear Handlebars... - Page 6 Scope of Delivery Description Qty. Description Qty. Allen Screw M5x12 Spring Washer M10 Washer M5 Safety Nut M10 Washer, Plastic Allen Key 4mm Spring Washer Allen Key 5mm Allen Screw M5x16 Allen Key 6mm Allen Screw M5x20 Allen Key 8mm Allen Screw M10x60 Phillips Screwdriver Washer M10...
- Page 7 Assembly Step 1: Mounting the Front Stand Attach the front stand (5) with two Allen screws M10x60 (A1), two spring washers M10 (A3) and two washers Ø10 (13) to the front mount ofn the base frame (1). Then fix the rear standpipe (6) also with two hexagon socket screws M10x60 (A1), two spring washers M10 (A3) and two washers Ø10 (13) to the rear mount of the base frame (1).
- Page 8 Assembly Step 3: Assembly of the Handlebar Unit Step 3.1: Assembly of the Cockpit Undo the screws on the back of the cockpit. Connect the cable protruding out of the handlebar tube (8) to the cockpit and then fix the cockpit back onto the cockpit bracket with the screws previously undone. Step 3.2: Assembly of the Bottle Holder Fix bottle holder (3) using two Allen screws M5x16 (C5), two spring washers M5 (C4), two washers M5 (C2) and two plastic washers M5 (C3) from below to the front end of the sliding bracket of the handlebars.
-
Page 9: Mains Connection
Assembly Step 5: Assembly of the Seat and Seat Tube Place the seat (4) onto the pivot of the seat tube (9) and tighten the screws of the seat bracket. Then insert the seat tube (9) into the mount on the base frame (1) and adjust it to the desired height using the knob. -
Page 10: Maintenance And Care
Transport In order to transport your training device simply and safely, the front stand is equipped with transport rollers. To move the exerciser, stand in front of the handlebars and grab them with both hands. Pull the training device gently towards you and lower the handlebars until the rear stand no longer has contact with the ground and the main weight of the exerciser is resting on the transport rollers. - Page 11 Adjusting Position of the Seat & Handlebars Vertical Seat Adjustment You can change the position of the seat vertically, i.e. adjust the height. With this you can find the optimal distance to the pedals. Loosen the knob on the seat tube. Adjust the seat to the desired height and then tighten up the knob again.
- Page 12 Adjusting Position of the Seat & Handlebars Seat Position Stand next to the bike and adjust the seat to a height a width of two-fingers below your hip joint. Then sit on the seat and put your feet onto the pedals. Your knees should still be bent at a small angle when the pedal is at its lowest point.
- Page 13 The energy consumption displayed is an approximation and not an exact value. **Note on heart rate measurement The watt display is not calibrated. An optionally available heart rate transmitter belt is required for this purpose. MAXXUS recommends the use of the POLAR T34.
- Page 14 Cockpit Switching on the Cockpit Connect the cable of the mains adapter to the connection socket on the training device. Now connect the mains adapter to a mains socket. The cockpit will switch on automatically. Switching on the Cockpit in stand-by mode If you do not disconnect the mains adapter from the training device or the socket after you have finished your training, the cockpit switches off automatically after approx.
- Page 15 Cockpit Training Profile (P01-P10) These are permanent pre-set training profiles. Step 1: Program Selection Switch on the cockpit. Select the desired training profile P00. The Program will be shown in the “SPEED/RPM” win- dow at the top right of the display. Now select the desired training profile from P01 to P10 using the keys.
- Page 16 Cockpit Personal Training Profiles (U01-U02) Here there are two free memory slots in which the user can permanently save their own individual training profiles. Step 1: Program Selection Switch on the cockpit. Select the desired training profile P00. The Program will be shown in the “SPEED/RPM” win- dow at the top right of the display.
-
Page 17: Recovery - Recovery Pulse Measurement
Cockpit Step 3: Training Time Input Press the MODE key. The TIME window will start to flash. If you wish to enter the training time as your training target enter a time from 10 to 99 Minutes using the keys. Step 4. -
Page 18: Service Menu
Cockpit Service Menu Step 1: Selecting a Service Menu Switch on the cockpit. Now press the START, MODE & RESET keys simultaneously for approx. 3 seconds. “EM” will appear in the display. Now press the MODE key. Selecting the Different Menu Points Select the different menu points by pressing the keys. -
Page 19: Error Message
Disconnect the mains adapter from the mains socket for approx. 2 minutes and then switch the cockpit back on again. If the error message appears again, please contact the MAXXUS Service Department. Error Message E81 Error description: Malfunction of the resistance setting. - Page 20 Step 3.4: As soon as the connection is established, the following display appears. You can now start training Please note that MAXXUS Group GmbH & Co. KG is not the producer or provider of the Zwift APP. If you have any questions or problems with the APP, please contact Zwift directly.
-
Page 21: Pulse & Heart Rate
Pulse & Heart Rate 100% of maximum heart rate of maximum heart rate of maximum heart rate of maximum heart rate Calculating your personal heart rate when training Calculate your personal heart rate when training as follows: 220 - Age = maximum heart rate This value represents your maximum heart rate and serves as a basis from which to calculate your personal training heart rate. - Page 22 Using a chest belt (we recommend the exclusive use of an uncoded POLAR® chest belt) allows you to wireless- ly measure heart rate. The chest belt is available online as an accessory from www.maxxus.com. This optimal, ECG-accurate type of measurement takes the heart rate by means of a transmitter chest belt directly from the skin.
-
Page 23: Training Recommendations
Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up. - Page 24 Training Recommendations Hydration Adequate hydration is essential before and during exercise. During a training session of 30 minutes it is possible to lose up to 1 litre of liquid. To compensate for this fluid loss apple spritzer mixed in the ratio of one-third apple juice to two-thirds mineral water is ideal since it contains electrolytes and minerals to replace those that the body loses through sweat.
-
Page 25: Technical Details
Technical Details Cockpit: Displays: − Time − Calorie Consumption − Speed − Heart Rate − Distance (when using the hand sensors) − Wheel Revolutions per Minute − Heart Rate (when using an optional chest belt) Technical Details: Braking System: Motor controlled magnetic brake system Resistance Levels: 1 to 32 Levels, electronically adjustable Drive Type:... -
Page 26: Recommended Accessories
My training device makes noises during training – is this normal? Your MAXXUS® training device is equipped with high-quality ball-bearings and a grooved belt. In addition, it also has a high-quality magnetic braking system which is completely wear and friction free. All these extremely high-quality components ensure that all functional noises are very much reduced. -
Page 27: Spare Parts List
Spare Parts List Part No. Description Specification Qty. ET-600340-1 frame ET-600340-2 console ET-600340-3 bottle cage ET-600340-4 saddle ET-600340-5 front foot set ET-600340-6 rear foot set ET-600340-7 handlebar set ET-600340-8 handlebar adjustmenttube set ET-600340-9 saddle post set ET-600340-10 pedal ET-600340-11 console base ET-600340-13 handlebar slider ET-600340-14... - Page 28 Spare Parts List Part No. Description Specification Qty. ET-600340-A21 gear set S3721 ET-600340-A22 handlebar limit S3722 ET-600340-A23 resistance adjustmentarm S3723 ET-600340-A24 spring top bead 07.04.THDZ ET-600340-A25 polished rod lock screw 04.10.LSGG0830 ET-600340-A26 semicircular head innerhexagonal screw M6x10 ET-600340-A27 left shell S3640 ET-600340-A28 right shell...
- Page 29 Spare Parts List Part No. Description Specification Qty. ET-600340-A71 pull-out knob LX067 ET-600340-A72 reducing sleeve S3644 S3645 ET-600340-A76 nozzle a S3642 380x340x480 ET-600340-A77 nozzle b S3643 380x340x580 ET-600340-A78 saddle lock pad S3635 ET-600340-A79 semicircular head crossflower screw M4x12 ET-600340-A80 washer Ø4 ET-600340-A82 speed sensor...
-
Page 30: Terms And Conditions Of Warranty
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners. -
Page 31: Service Contract
I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately. - Page 32 Maxxus Group GmbH & Co. KG Nordring 80 D-64521 Groß-Gerau Germany E-Mail: info@maxxus.de www.maxxus.com...
