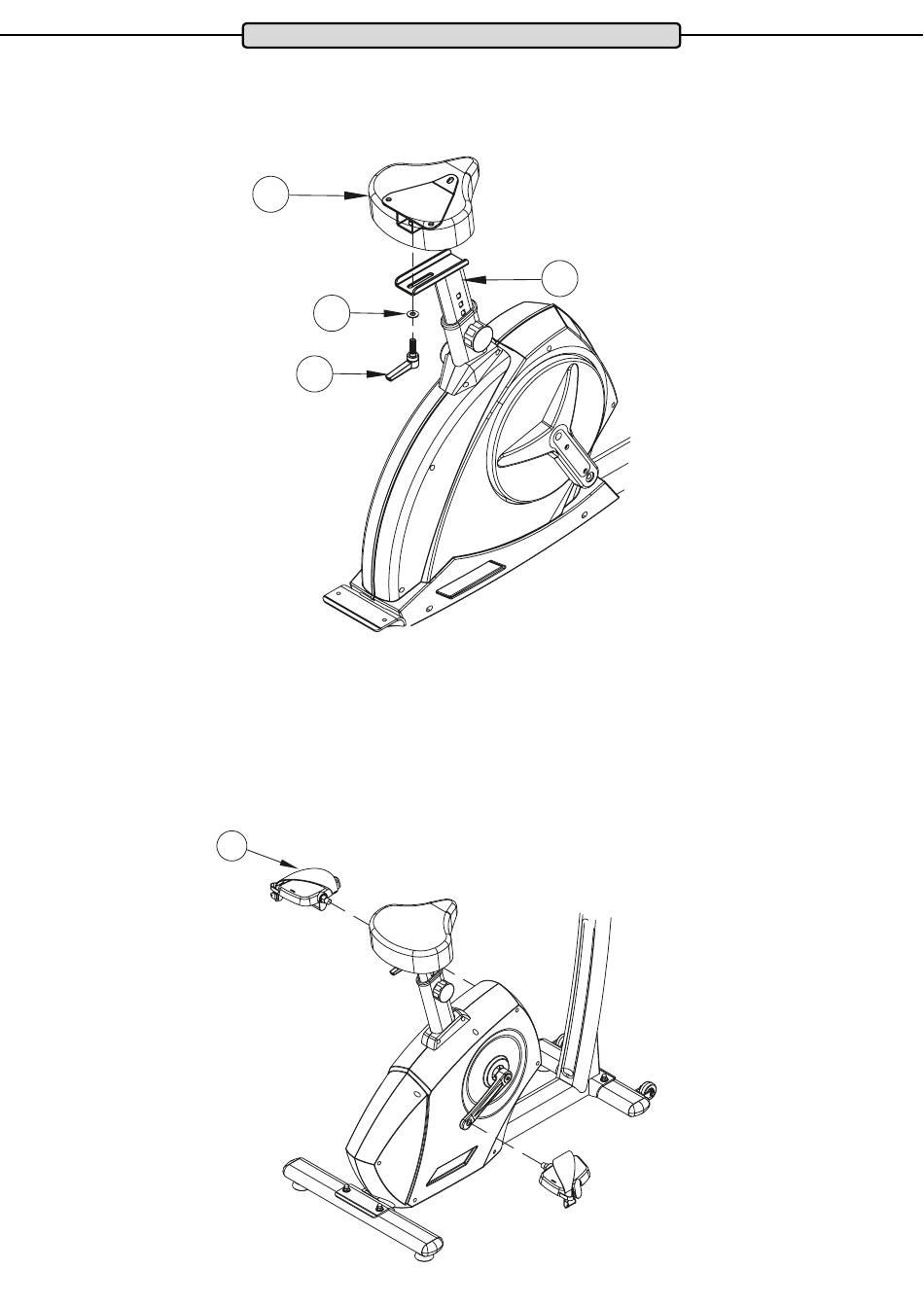

Step 8: Mounting the Saddle

Attach the saddle (I) to the adjustable bracket of the seat support (A03) with the locking screw (B37) and the

washer (B36).

A03

B36

B37

Step 9: Mounting the Pedals

Insert the right pedal (F) thread into the right pedal arm socket and tighten it clockwise. Insert the left pedal (F)

thread into the left pedal arm socket and tighten it anti-clockwise.
