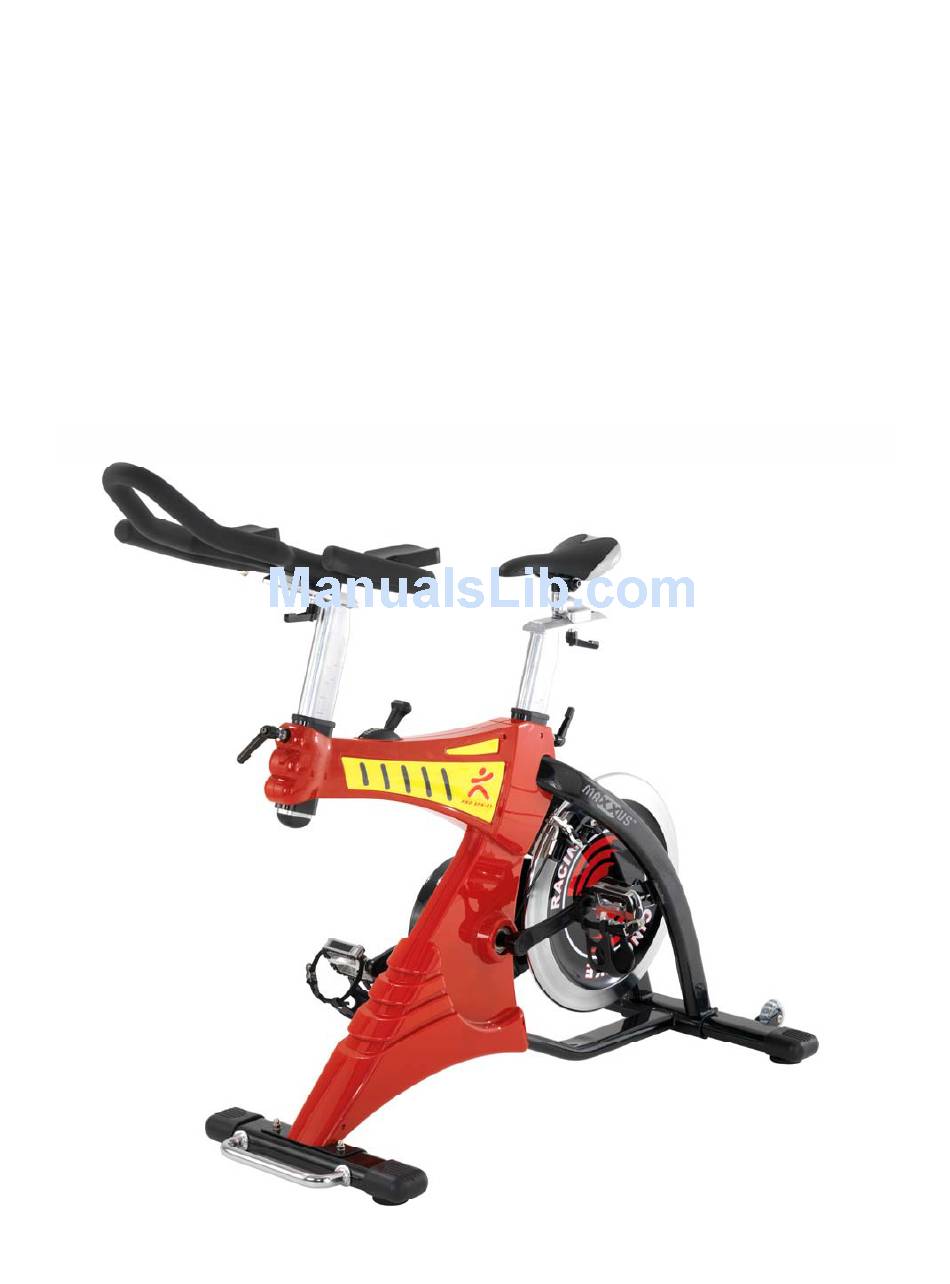

- Page 1 ® MAXXUS PRO SPK-21 FITNESS CYCLE OWNER’S MANUAL...
-
Page 2: Table Of Contents
Dear customer, ® Thank you for purchasing MAXXUS Pro SPK-21 Fitness Cycle. This product was designed to meet your workout needs and provide you with a healthier life. Before you begin using this product, please read the Owner’s Manual completely and thoroughly and follow the instructions of all WARNING and CAUTION labels. -
Page 3: Safety Instructions
____________________________________________________________ SAFETY INSTRUCTIONS Before you start to assemble and operate this product, please carefully read the Owner’s Manual in its entirety. Please follow all instructions in this Owner’s Manual as described. Be sure to read through the Safety Instructions below and keep this Owner’s Manual for future reference. -
Page 4: Parts List
____________________________________________________________ PARTS LIST Item Description Quantity Item Description Quantity Main Frame Rear Foot Bar Adjustable Bolt Front Foot Bar Lock Nut U-Zone Bar Function Set Seat Post Stopper Set Handle Post Tension Lever Seat Slider Screw Handle Bar Inner Chain Cover End Cap Screw Adjustable Pad... -
Page 5: Exploded Drawing
____________________________________________________________ EXPLODED DRAWING... -
Page 6: Packing Parts List
____________________________________________________________ PACKING PARTS LIST... -
Page 7: Assembly
____________________________________________________________ ASSEMBLY ● Read the Owner’s Manual in its entirety before assembly. ● Remove all parts from the box. Check to confirm receipt of all parts and quantities shown in the Packing Parts List on ● page 5. (Note: Some parts may be pre-assembled.) STEP 2 Slide the Front Foot Bar (3) to the front of the Main Frame (1) adding two Washers (14), two... - Page 8 ____________________________________________________________ ASSEMBLY STEP 4 Attach the Left Pedal (55) and Right Pedal (56) to the Left Crank (53) and Right Crank (54) as shown in Figure 2. ** Tighten the Left & Right Pedals used in STEP 4 with the Spanner Tool (67). STEP 5 Insert the Seat Post (5) into the tube of the Main Frame (1) with Knob (60) as shown in Figure 3.
- Page 9 ____________________________________________________________ ASSEMBLY STEP 8 Insert the bolts on the underside of each Elbow Pad (70). Next, slide the other end of the bolts into the holes on the Handle Bar (8) and screw on one nut (69) on each side as shown in Figure 4. There are two holes on either side of the handle bar (8) for elbow pad (70) adjustments.
-
Page 10: How To Use The Bike
____________________________________________________________ HOW TO USE THE BIKE After assembling the bike and tightening all appropriate components as instructed, you can now begin using bike. Handle bar, seat, and elbow pad adjustments allow users to adjust the bike to fit one's size and body frame. -
Page 11: Serial Number Label
(1) year from the date of purchase. This warranty is not transferable to anyone who subsequently purchases the product from the original purchaser. During the warranty period, MAXXUS has the option to replace or repair a part(s) that was discovered damaged or has become damaged due to a manufacturer defect only, and may be done so with serviceable used parts that are equivalent to the new parts in performance.
