Maxxus 4.2 Installation & Operating Manual page 8

Assembly

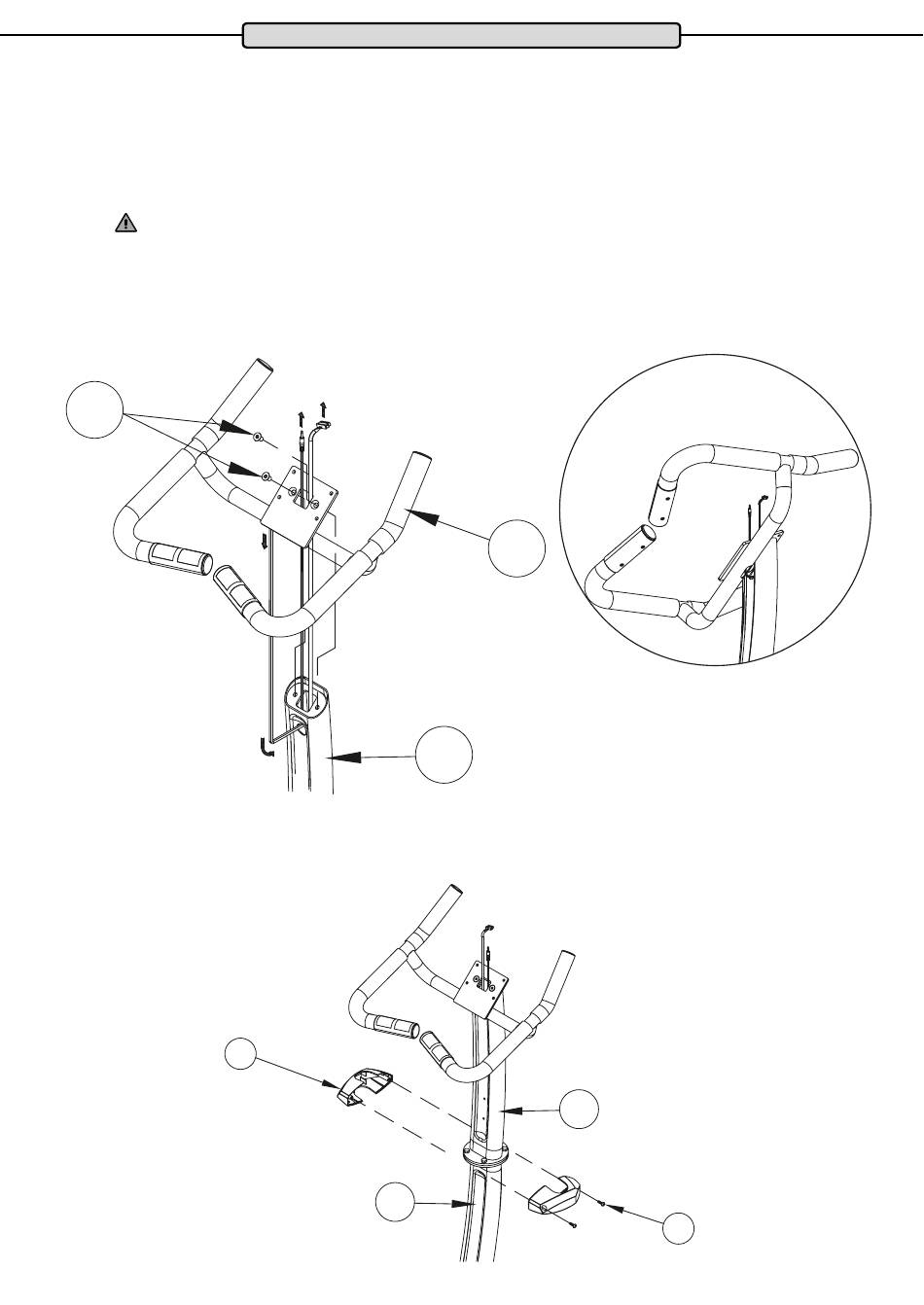

Step 4: Mounting the Handlebars
Pass the hand pulse measurement cable, which extends from the bottom of the handlebar (E), in through the
upper, front opening of the steering column (D) and then out from the upper opening. Now lead the two cables
(hand pulse measurement & connection cable) upwards from below through the opening in the handlebar (5).
ATTENTION: Pull out the cables only as far as necessary to connect them to the cockpit later.
Now x the handlebar (E) with two Allen bolts M8 (4) to the steering column (D).
WARNING:
When attaching the handlebar (E), be careful not to crush or damage the cables.
4
E
D
Step 5: Assemble the Steering Column Cover
Place the two parts of the steering column cover (H) on the right and left of the joint between the steering col-
umn (D) and the base frame (A). Secure with two self-tapping screws (9).
H
D
A
9
8
