- Page 1 MAXXUS 90 PRO Bike...
- Page 2 This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.
-
Page 3: Safety Instructions

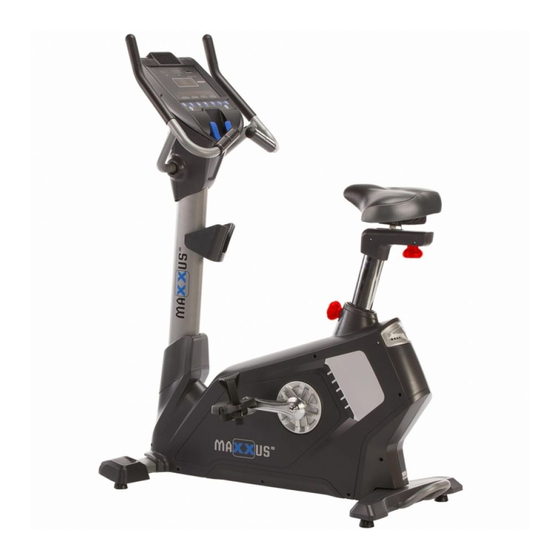

− It is recommended permanently to place a MAXXUS® Floor Protection Mat under the device to protect damageable floors such as wood, laminates, floor tiles etc. Please ensure that the mat cannot slip or slide. - Page 4 Overview of the Device Tablet holder Cockpit Handlebars Pulse sensors Seat Handlebar Shaft Pedal Stand with Transport Rollers Stand with transport handle...
- Page 5 Fixing Materials Part 29 Part 31 Part 30 Part 32 Washer Ø8 Spring washer Ø8 Washer Ø10 Spring washer Ø10 3 pieces 3 pieces 6 pieces 6 pieces Part 24 Part 26 Part 20 Part 11 Sheet metal screw 4x16 Phillips screw M5x15 Phillips screw M4x10 Hexagon socket screw M8x20...
- Page 6 Assembly Carefully unpack all parts of the delivery. Two people are required because some parts of your training device are bulky and heavy. Before starting the assembly, check the completeness of the fixing materials (screws, nuts, etc.) and the components against the parts and fixing material lists on the previous pages of this manual. Carefully carry out the installation, as damage or defects that have arisen due to assembly errors are not covered by the warranty under any circumstances.
- Page 7 Assembly Step 3: Mounting the handlebar shaft Slide the handlebar stem cover (52) onto the handlebar shaft(2) from below. Make sure that the covers are correctly aligned. Insert the M12x70 set screws (15) into the seat of the base frame (1) for the handlebar shaft and tighten them slightly so that they grip.
- Page 8 Assembly Step 5: Mounting the handlebar Connect the two cables of the hand pulse measurement (84) that protrude from the handlebar shaft (2) with the cable ends (85) that protrude from the handlebar (9). The order of the connection is irrelevant as the cables are identical.
- Page 9 Assembly Step 7: Mounting the saddle Insert the sliding rail of the saddle (69) on the rail of the saddle tube (5) and fix it with the hand wheel (70). Step 8: Fitting the side saddle covers Insert the right and left saddle covers (63-left/64-right) underneath the saddle on the saddle tube and fix them with two pan-head screws M4x10 (20) each.
- Page 10 Assembly Step 10: Mounting the tablet holder Attach the tablet holder (88) to the back of the cockpit with three self-tapping screws 4x16 (24). Self Generator operation This training device is equipped with a generator system to produce electricity. Similar to a bicycle dynamo, the energy generated during training is converted into electricity and used to power the cockpit and the braking system.
-
Page 11: Seat Adjustment
Seat Adjustment Horizontal Adjustment You can adjust your seat horizontally to set your optimum distance to the handlebars. Loosen the hand lever (B37) below the seat by turning it an- ti-clockwise. Move the seat to the desired horizontal position and retighten the hand lever (B37) clockwise. -
Page 12: Care, Cleaning & Maintenance
Transport, Location & Storage Transport In order to transport your training device simply and safely, the front stand is equipped with transport rollers. To move the exerciser, stand in front of the handlebars and grab them with both hands. Pull the training device gently towards you and lower the handlebars until the rear stand no longer has contact with the ground and the main weight of the exerciser is resting on the transport rollers. - Page 13 Cockpit The cockpit constantly shows the current training values. TIME Specification of the training time. For a given training session, the computer counts down the time to “00:00.” The training time can be set from “01:00” to “99:59” minutes. DISTANCE Specification of the training distance in kilometres.
-
Page 14: Switching On The Device
Cockpit PROGRAM (P) Button for selecting the different training programmes. RECOVERY (R) Recovery pulse measurement button BODY FAT Button for measuring the body fat percentage in %. Minus/Plus - Keys Before the training: Entering values During the training: Changing the brake levels MODE (M) Key for confirming inputs START/STOP... - Page 15 Cockpit Manual training (MANUAL P00) Step 1: Programme selection After you have started pedalling and the instrument panel has switched on, "P00" appears in the RPM window. PRESS START FOR QUICKSTART OR MODE FOR SETUP" appears in the lower display. Now press the MODE button. Step 2: Entering the user age The lower display shows "USE LEVEL +/- KEYS TO ADJUST AGE".
- Page 16 Cockpit Training profiles (PROGRAM P01 - P12) Step 1: Programme selection After you have started pedalling and the instrument panel has switched on, "P00" appears in the RPM window. PRESS START FOR QUICKSTART OR MODE FOR SETUP" appears in the lower display. Now press the PROGRAM button repeatedly until the desired training profile P01 to P12 is displayed in the RPM window.
- Page 17 Cockpit Program P7 Program P10 Program P8 Program P11 Program P9 Program P12 Own training profile (USER U01 - U04) Step 1: Programme selection After you have started pedalling and the instrument panel has switched on, "P00" appears in the RPM window. PRESS START FOR QUICKSTART OR MODE FOR SETUP"...
- Page 18 Cockpit Heart Rate Controlled Training (H.R.C.) These programmes are training programmes in which the cockpit regulates the braking resistance independently depending on the target heart rate defined by the user. Since the cockpit is dependent on permanent and precise data transmission of the heart rate, the use of these programmes is only possible with a transmitter chest strap.
-
Page 19: Recovery - Recovery Pulse Measurement
Cockpit Body Fat Analysis & Body Mass Index (BMI) In this programme, the computer determines the amount of fat in the body as a percentage of body weight. Step 1: Programme selection After you have started pedalling and the instrument panel has switched on, press the BODY FAT button. Step 2: Entering the user gender The lower display shows "USE LEVEL +/- KEYS TO ADJUST SEX". -
Page 20: Pulse & Heart Rate
Pulse & Heart Rate 100% of maximum heart rate of maximum heart rate of maximum heart rate of maximum heart rate Calculating your personal heart rate when training Calculate your personal heart rate when training as follows: 220 - Age = maximum heart rate This value represents your maximum heart rate and serves as a basis from which to calculate your personal training heart rate. - Page 21 Heart Rate Measurement using a Chest Belt Many MAXXUS® training devices are already fitted with a receiver as standard. Using a chest belt (we recommend the exclusive use of an uncoded POLAR® chest strap) allows you to wire- lessly measure heart rate. The chest belt is as accessories available.
-
Page 22: Training Recommendations
Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up. - Page 23 Training Recommendations Hydration Adequate hydration is essential before and during exercise. During a training session of 30 minutes it is possible to lose up to 1 litre of liquid. To compensate for this fluid loss apple spritzer mixed in the ratio of one-third apple juice to two-thirds mineral water is ideal since it contains electrolytes and minerals to replace those that the body loses through sweat.
-
Page 24: Technical Details
Technical Details Cockpit Display of: − Time − Pulse Rate (when using the hand sensors) − Speed − Watts − Distance − Heart rate (when using an optional chest belt) − Revolutions per minute − Resistance level − Calorie consumption Technical details: Brake system: Motor-controlled permanent magnetic brake system... -
Page 25: Recommended Accessories
All these extremely high-quality components ensure that all func- tional noises are very much reduced. Your MAXXUS® training device is one of the quietest products available in the fitness market. - Page 26 Exploded Drawing...
- Page 27 Spare Parts List Part Description size/type Main frame Upright post Front stabilizer Rear stabilizer Saddle post Saddle sliding block belt pinch roller adjusting screw connection plate Handlebars Allen hexagon socket cap full thread screw M6x10 Allen hexagon socket cap full thread screw M8x20 Allen C.K.S.
- Page 28 Spare Parts List Part Description size/type CRANK L B11/228.3x78.5x51 CRANK R B11/228.3x78.5x51 Console 45-1 Console housing down 45-2 Console housing up 45-3 IPHONE Holder 45-4 Air outlet 45-5 Arch pressing plate One-way spontaneous electric Belt pulley axle Ø108x192 Belt pulley Ø308.9x22.2 Motor belt 480PJ8...
- Page 29 Spare Parts List Part Description size/type Magnet wiring L-600mm Accumulator E11/L-100 Console wiring Console handle pulse wiring Handle pulse wiring B11/L-1000mm Handle pulse 133mm Battery holder B11/591x154.5x50 IPAD holder Notes...
-
Page 30: Terms And Conditions Of Warranty
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners. -
