Assembly

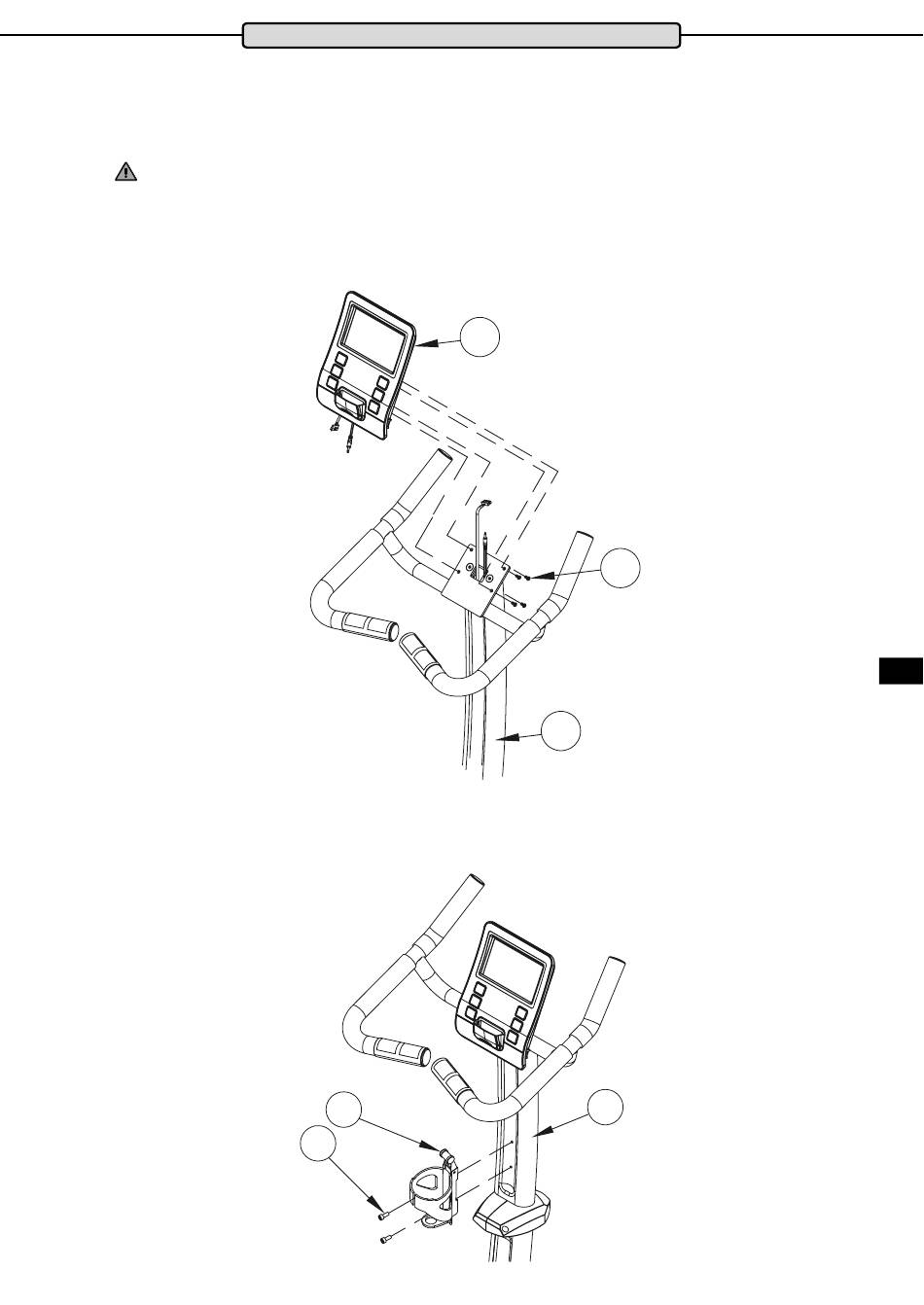

Step 6: Mounting the Cockpit

Loosen and remove the four pan head screws (11) preassembled on the back of the cockpit (J). Connect the

cables that protrude from the cockpit (J) with the cables that protrude from the handlebars. Carefully check the

cable connections. Carefully push the excess cables back into the handlebar stem (D). Now secure the cockpit

(J) to the handlebar shaft with the four pan head screws (11).

Warning:

When attaching the cockpit (J), make sure that you do not crush or damage the cables.

ENG

Step 7: Mounting the Botle Holder

Loosen and remove the two M5 Allen screws (12) on the handlebar stem (D) and use them to attach the bottle

holder (G) to the handlebar stem (D).
