Endless Pools FASTLANE PRO Owner's Manual page 36

EYrskYmd Oqn Rvhl Tmhs HmrsYkkYshnm
°
Rdbshnm 0/ HMRS:KK:SHNM NE SGD GXCQ:TKHB ONVDQ TMHS

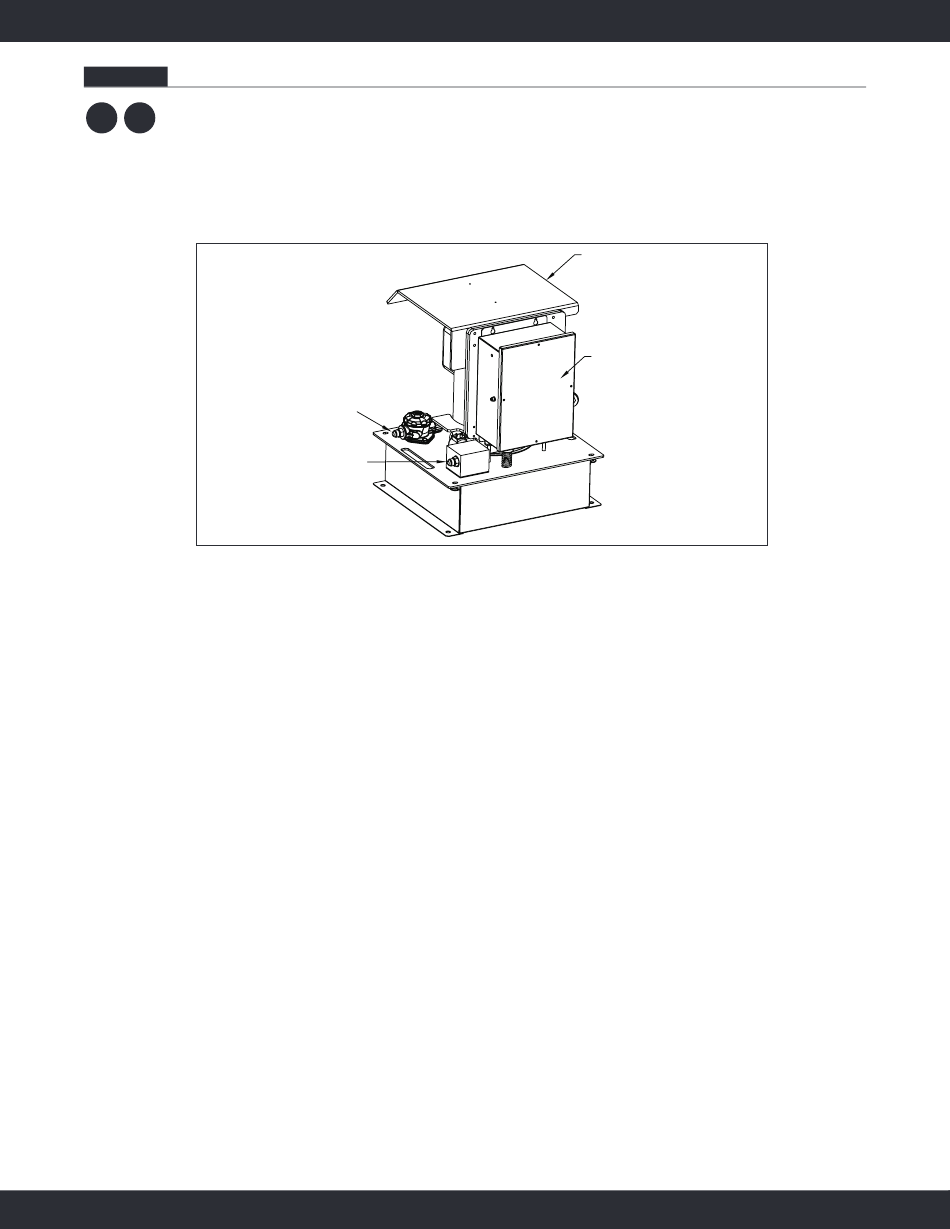

10.1 The Hydraulic Power Unit should be placed on a ;at, level sur2ace. I2 placing the unit outside, it is
C
V
Ehf- 0/-0
10.2 With a minimum of two people, carefully position the Power Unit in the desired location. Verify that
10.3 Have an electrician make the electrical connections using the whip provided. Make this connection
24
recommended that the optional weather guard be purchased (Fig. 10.1), but should not be subject to
driving rain. I2 placing the unit indoors and at a level below the pool deck, such as a basement, a ;oor
drain is mandatory to accommodate the unlikely event of a hole developing in the hydraulic hose
creating a siphon. Whether placed indoors or out, this is an air-cooled unit and must have ample venti-
lation. Therefore, a minimum of 12" (30cm) air space must be provided on all sides of the power unit
motor. In addition, while frequent access is not required, it is imperative the power unit is accessible.
Access to the power unit controller is essential.
Jnv,Oqdrrtqd
Bnmmdbshnm
Ghfg,Oqdrrtqd
Bnmmdbshnm
the hose connections are pointed in the direction you desire and controller is accessible.
by hard wiring to a disconnect or using an appropriate lock tight plug and socket. The Power Unit
requires a single-phase 220V 30-amp GFCI (32-amp RCD) protected power supply. Verify the incom-
ing voltage and wiring. Refer to the wiring diagram in Section 11A for 60Hz wiring connections and
Section 11B for 50Hz wiring connections. The white wire will not be used in 50Hz applications.
NoshnmZk
VdZsgdq
FtZqc
GxcqZtkhb
Onvdq Tmhs
Bnmsqnkkdq
