Endless Pools FASTLANE PRO Owner's Manual page 21

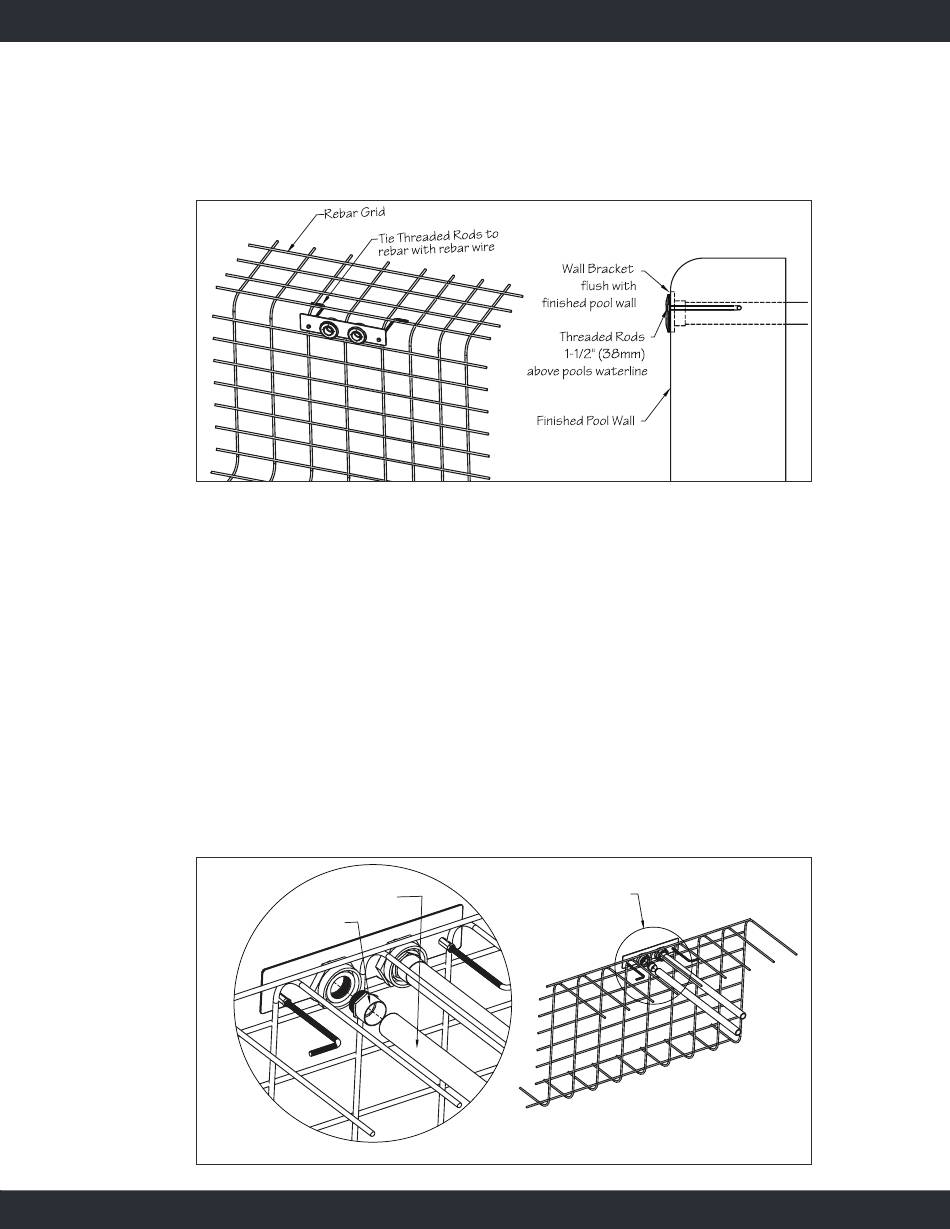

The bracket is to be installed into the pool wall so that the two threaded rods are 1-1/2" (38mm) above the
intended waterline, which is typically halfway up the skimmer. The bottom straight edge of the bracket should
be aligned with the expected waterline. Level and position the bracket so that the PVC surface of the bracket
will be ;ush with the $nished sur2ace o2 the pool wall. The threaded rods attached to the bracket must be tied
back to the rebar of the pool with rebar wire. Once encased in concrete, these rods will serve as a suitable
hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the $nished pool and will be
used to hang the Fastlane Pro (Fig 4.18).
Ehf- 3-07
The location of the Hydraulic Power Unit should be determined at this point in the installation. Unroll lengths of
1-1/2" (38mm) ;exible PVC pipe 2rom the back o2 the wall mount bracket to the Power Unit. Any bends in the
;exible pipe MUST be gradual sweeps and not sharp to allow the hydraulic hoses to easily be fed through each
conduit.
I6 the Hydraulic Power Unit is within 25' (7,6m) o6 the pool: Each length o2 ;exible pipe should exit the
ground within 4' (1,2m) of the Power Unit. Approximately 4' (1,2m) of hydraulic hose is required to make the
hydraulic connections at the Power Unit.
I6 the Hydraulic Power Unit is more than 25' (7,6m) away 6rom pool: 25' (7,6m) o2 ;exible pipe, a junction
box, and an additional length o2 ;exible pipe MUST be employed. It is at the junction box where a step up to a
larger diameter hydraulic hose occurs to reduce pressure loss and a potential reduction in performance. In this
case, the length o2 ;exible pipe between the wall mount bracket and junction box MUST be 24' 6" (7,5m). This
will allow the hydraulic hoses to terminate just inside the junction box. An additional length o2 ;exible pipe
coming out of the junction box should exit the ground within 4' (1,2m) of the Power Unit. See Section 5: Junction
Box for detailed information.
Apply Te;on thread sealant to the threads o2 the 1-1/2" (38mm) MPT x FSLIP adapters and thread them into the
thru-wall $ttings on the backside o2 the wall mount bracket. Glue the ;exible pipe into the adapters (Fig. 4.19).
/)/-1 &25ll(
OUB Ekdw Ohod
/)/-1 &25ll(
LOS w ERkho
8cWosdq
CDS8HJ 8
Ehf- 3-08
8cWosdq Wmc Ekdw Ohod
&Rdd CdsWhk 8(
EYrskYmd Oqn Rvhl Tmhs HmrsYkkYshnm
°
1/
