Endless Pools FASTLANE PRO Owner's Manual page 24

EYrskYmd Oqn Rvhl Tmhs HmrsYkkYshnm
°
3-C- EHADQFK:RR ONNK
I2 the pool being constructed is $berglass, please 2ollow the instructions below:
The Mounting Kit for Fiberglass pools includes:
(1) PVC Wall Bracket
(2) Bonding Clamp
(2) 3/8" (9,5mm) Stainless Steel Threaded Mounting Rod
(6) 3/8" (9,5mm) Stainless Steel Jam Nut
(6) 3/8" (9,5mm) Stainless Steel Flat Washer
(2) 3/8" (9,5mm) Stainless Steel Lock Washer
(2) 1-1/2" (38mm) Thru-Wall Fitting
(2) 1-1/2" (38mm) MPT x 1" (25mm) FPT Bushing Reducer
(2) 1" (25mm) Liquid Tight Fitting
Remove the hardware from the PVC bracket. In this application the bracket will serve primarily as a tem-
plate. Position the bracket on the pool wall where the Fastlane Pro will be placed. Align the etched mark on
the bracket with the expected waterline, which is typically halfway up the skimmer opening. The bracket
must be level on the pool wall. Temporarily adhere the bracket to the pool wall using duct tape. Trace the

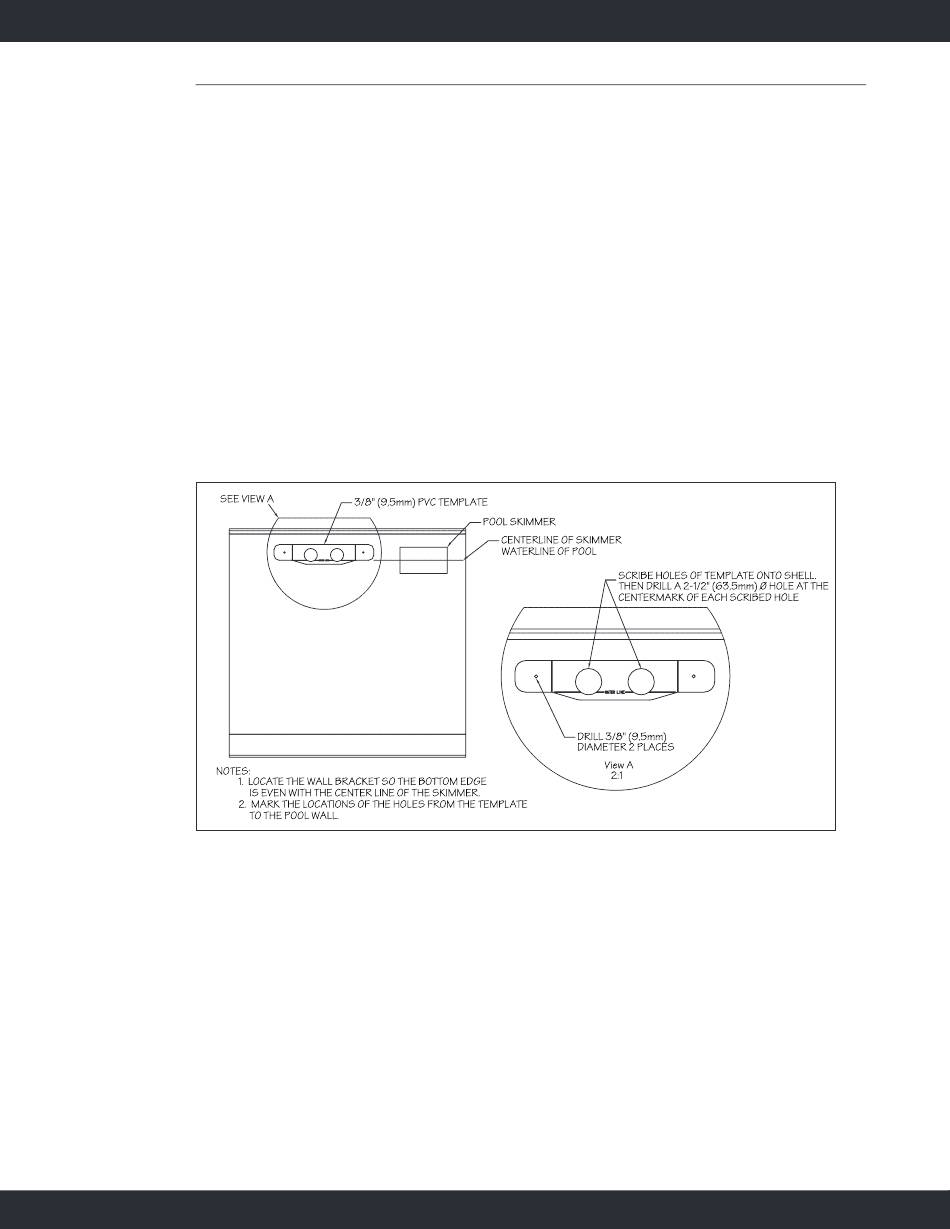

outlines o2 the thru-wall $ttings and threaded rod openings on to the pool wall (Fig. 4.24).
Ehf- 3-13
Once the openings are marked, the bracket can be removed from the pool wall. Use a 2-1/2" (63,5mm)
hole saw to drill the thru-wall holes. Use a 3/8" (9,5mm) drill bit for the threaded rod holes.
