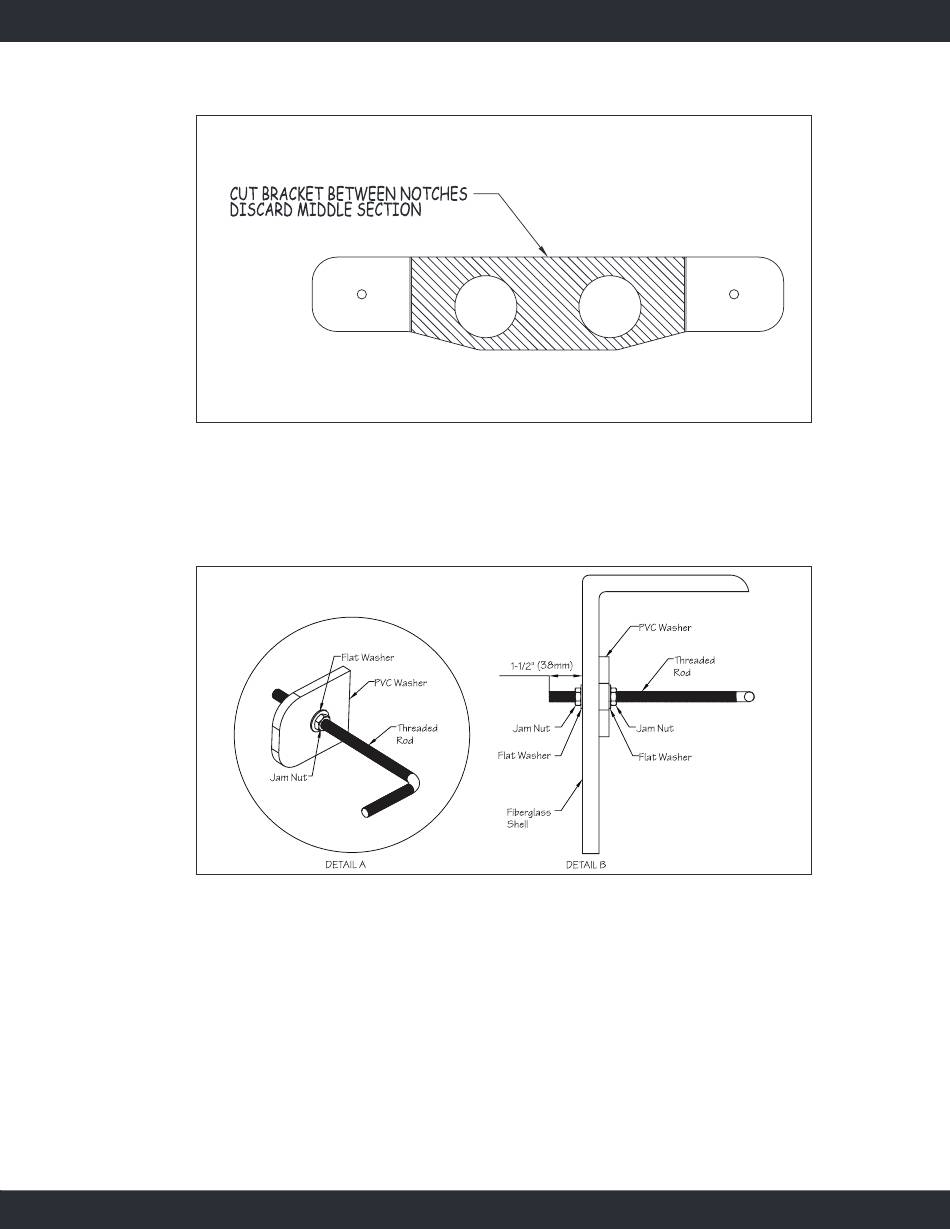

Cut the center portion out of the bracket using the etched marks in the brackets as a guide. The two end
portions will be used as washers on the backside of the pool wall (Fig. 4.25).
Ehf- 3-14
Insert the threaded rod into each PVC washer making sure there is a ;at washer and jam nut on the back-
side of the PVC washer (Fig. 4.26 DETAIL A). Position and install each PVC washer and threaded rod as-
sembly against the backside of the pool wall. Adjust the hardware on the threaded rods so that they extend
approximately 1-1/2" (38mm) into the pool. Install an additional ;at washer and jam nut onto each threaded
rod on the inside of the pool (Fig. 4.26 DETAIL B).
