If the pool being constructed is gunite with a vinyl liner, please follow the instructions below.
The Mounting Kit for Steel/Polymer pools with vinyl liner includes:
(1) PVC Wall Bracket
(2) Bonding Clamp
(2) 3/8" (9,5mm) Stainless Steel Threaded Mounting Rod
(2) 3/8" (9,5mm) Stainless Steel Coupler
(2) 3/8" (9,5mm) Stainless Steel Threaded Stud
(4) 3/8" (9,5mm) Stainless Steel Jam Nut
(2) 3/8" (9,5mm) Stainless Steel Flat Washer
(2) 3/8" (9,5mm) Stainless Steel Lock Washer
(2) 3/8" (9,5mm) Rubber Washer
(2) 3/8" (9,5mm) Stainless Steel with Neoprene (Sacri$cial Washer)
(2) 3/8" (9,5mm) Stainless Steel Hex Head Bolt (Sacri$cial Bolt)
(2) 1-1/2" (38mm) Star Thru-Wall Fitting
(2) 1-1/2" (38mm) MPT x FSlip Adapter
(2) 1-1/2" (38mm) MPT x 1" (25mm) FPT Bushing Reducer
(2) 1" (25mm) Liquid Tight Fitting
(1) Clear Silicone

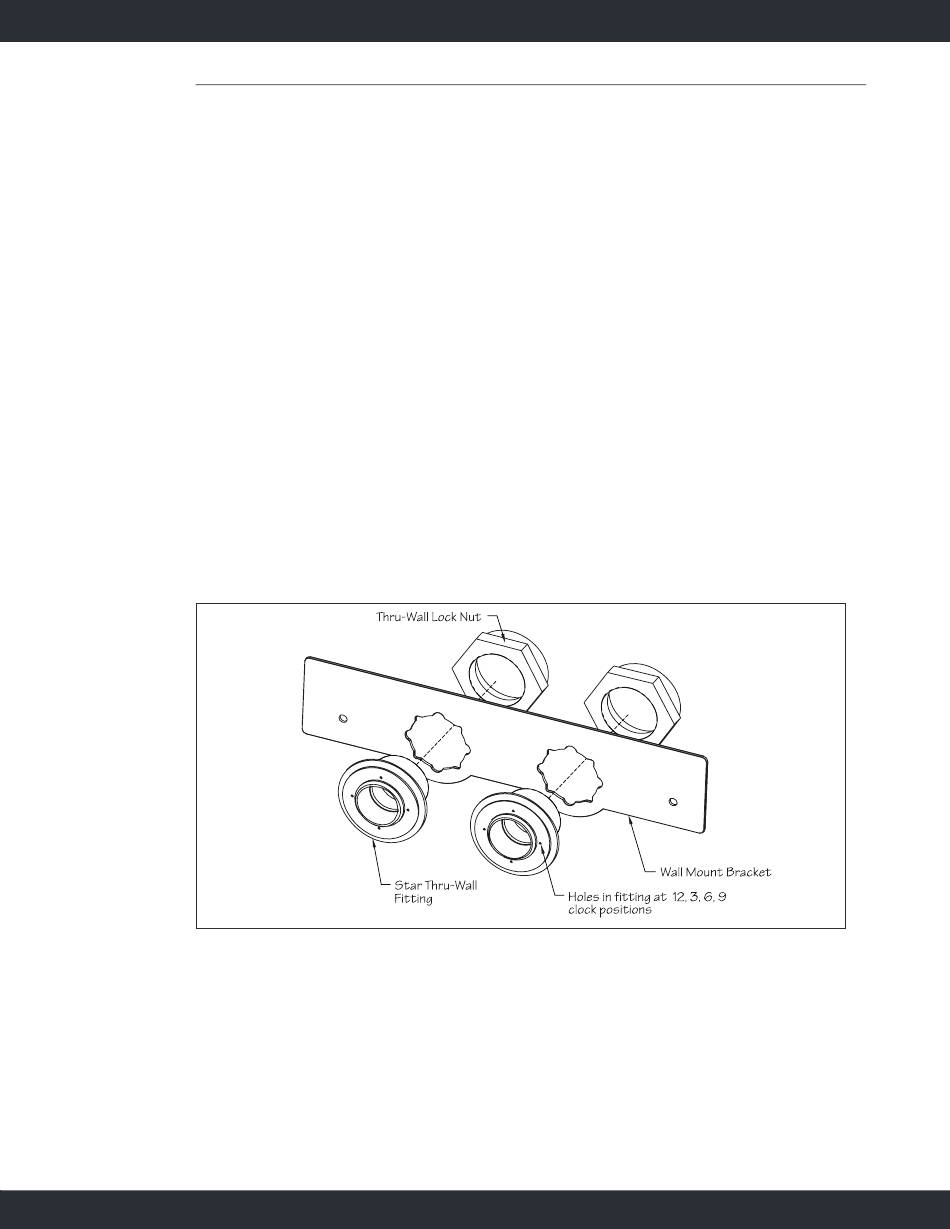

Install the star thru-wall $ttings in the cutouts o2 the wall mount bracket making sure the holes in the $t-
tings are oriented in the 12, 3, 6, and 9 (clock positions) as shown in Figure 4.15.
