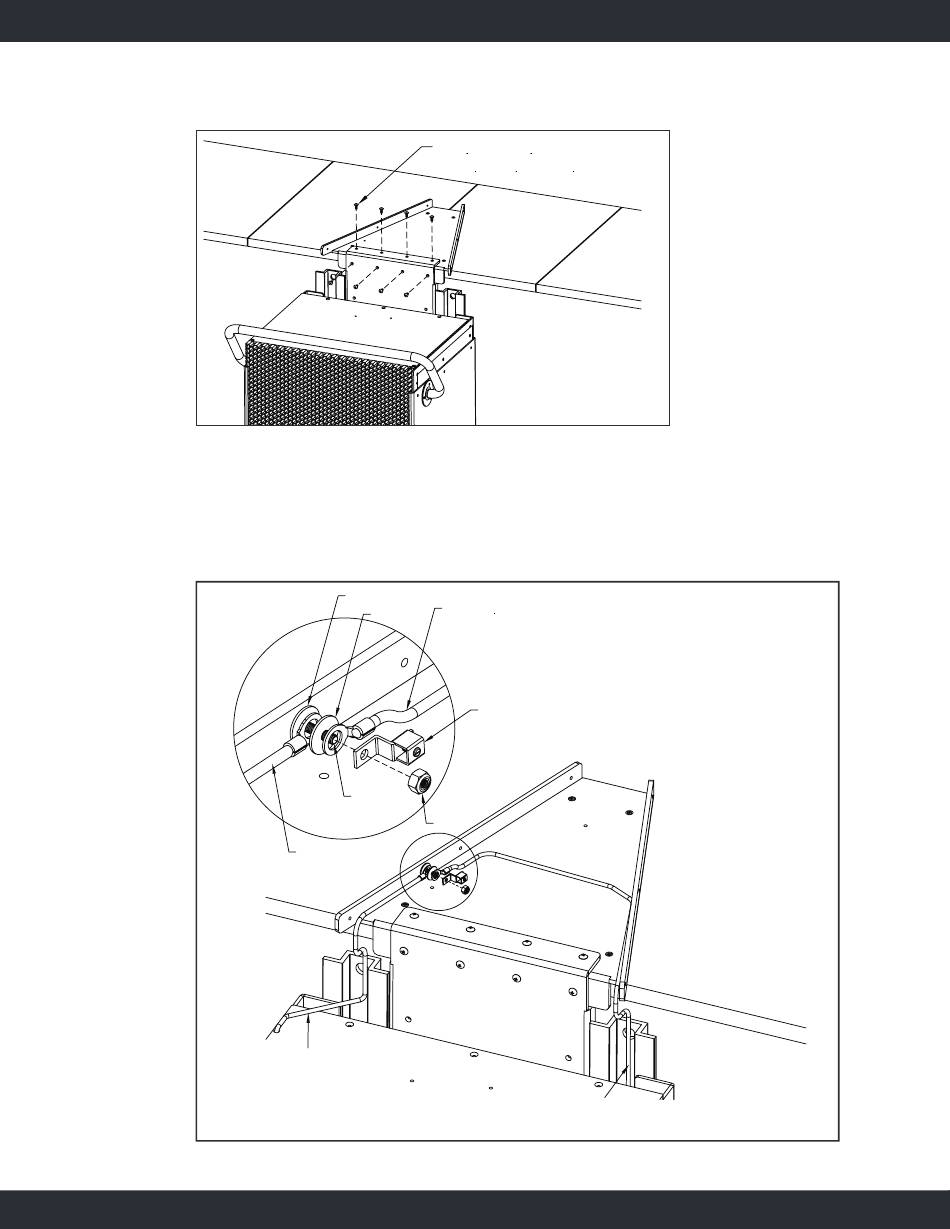

9.3 With a minimum of two people, carefully lower the Fastlane Pro into the pool. Align the holes in the
Ehf- 8-2
9.4 The next step is bonding the Fastlane Pro. Hardware for bonding the swim unit is included in hardware
Ehf- 8-3
22
hanger bracket with the holes in the deck plate bottom. Use the provided 1/2" (13mm) screws to attach
the Fastlane Pro to the pool wall (Fig. 9.3).
kit. Insert the machine screw into the countersunk hole on the left side of the deck plate bottom. On
the inside of the deck plate, place a washer on the screw. Attach the bonding wire from the grab to the
screw followed by another washer. On the right side of the unit, route the bonding wire, pre-attached to
the swim unit, to the machine screw. Attach the copper bonding lug and nut to secure the bonding wires.
IT IS CRITICAL THAT THE BONDING WIRES ARE ATTACHED PROPERLY (Fig. 9.4).
