Endless Pools FASTLANE PRO Owner's Manual page 14

EYrskYmd Oqn Rvhl Tmhs HmrsYkkYshnm
°
3-A- RSDDK.ONKXLDQ ONNK VHSG UHMXK KHMDQ
If the pool being constructed is a steel or polymer pool with a vinyl liner, please follow the instructions
below.
The Mounting Kit for Steel/Polymer pools with vinyl liner includes:
(1) PVC Wall Bracket
(2) Bonding Clamp
(2) 3/8" (9,5mm) Stainless Steel Threaded Mounting Rod
(2) 3/8" (9,5mm) Stainless Steel Coupler
(2) 3/8" (9,5mm) Stainless Steel Threaded Stud
(4) 3/8" (9,5mm) Stainless Steel Jam Nut
(2) 3/8" (9,5mm) Stainless Steel Flat Washer
(2) 3/8" (9,5mm) Stainless Steel Lock Washer
(2) 3/8" (9,5mm) Rubber Washer
(2) 3/8" (9,5mm) Stainless Steel with Neoprene (Sacri$cial Washer)
(2) 3/8" (9,5mm) Stainless Steel Hex Head Bolt (Sacri$cial Bolt)
(2) 1-1/2" (38mm) Star Thru-Wall Fitting
(2) 1-1/2" (38mm) MPT x FSlip Adapter
(2) 1-1/2" (38mm) MPT x 1" (25mm) FPT Bushing Reducer
(2) 1" (25mm) Liquid Tight Fitting
(1) Clear Silicone

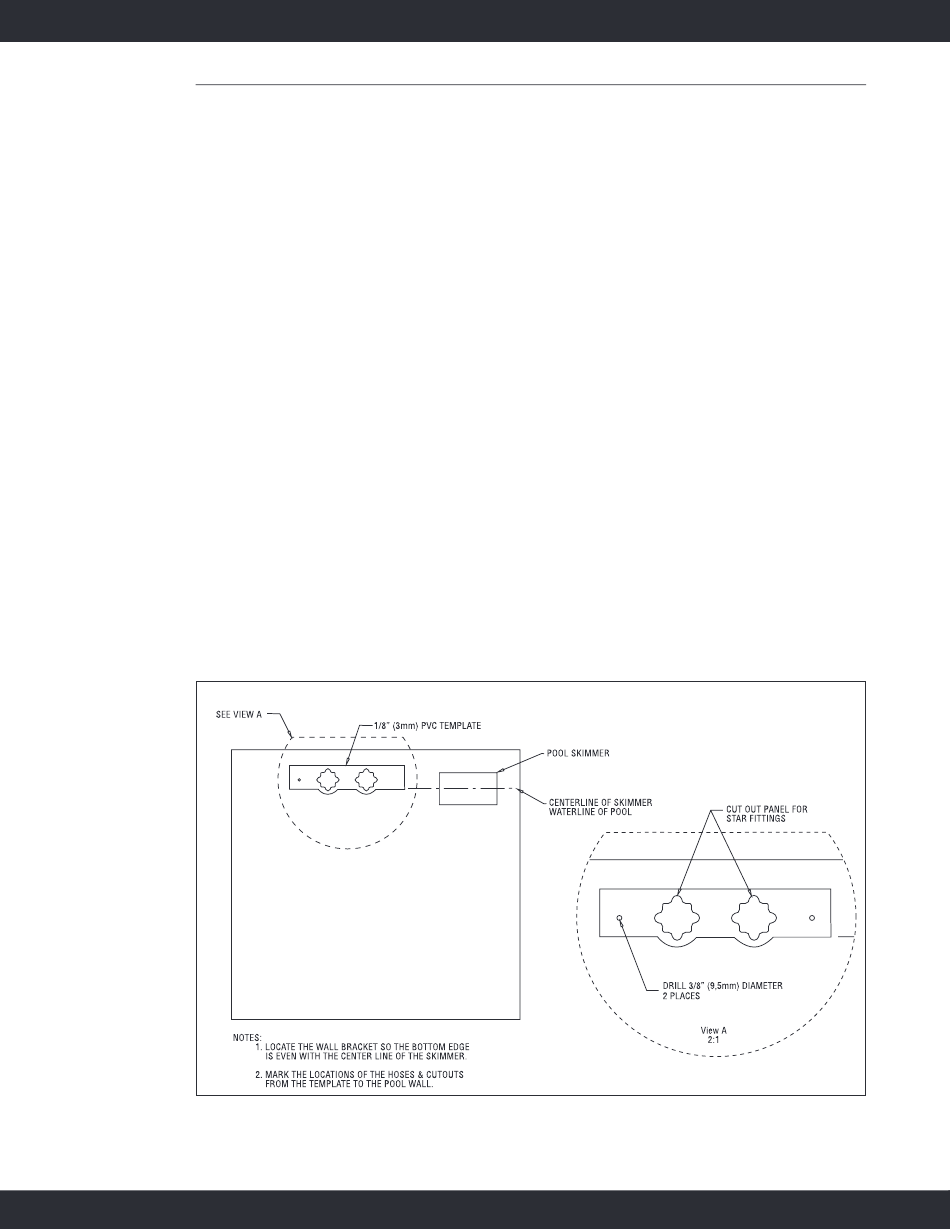

Position the PVC template where the Fastlane Pro will attach to the pool wall and align the bottom of the
template with the expected water level in the pool (which will typically be located at the centerline of the
skimmer) as shown in Figure 4.6. Use duct tape to temporarily adhere the PVC template to the pool wall.
Be certain that the PVC template is level in the pool. Trace the outline o2 the star thru-wall $ttings and
threaded rod hole penetrations that are cut in the PVC template onto the pool wall. Remove the PVC tem-
plate 2rom the pool wall. Cut or punch the openings 2or the star thru-wall $ttings and threaded rod holes.
