Endless Pools FASTLANE PRO Owner's Manual page 11

EYrskYmd Oqn Rvhl Tmhs HmrsYkkYshnm
°
The bracket is to be installed into the pool wall as shown in Figure 4.2 so that the two threaded mounting
rods are 1-1/2" (38mm) above the intended waterline of the pool, which is typically halfway up the skim-
mer. The "Waterline" mark on the bracket will sit along the intended waterline.
Level and position the bracket so that the PVC sur2ace o2 the bracket will be ;ush with the $nished sur2ace
of the pool wall as shown in Figures 4.2. and 4.5. The area below the bracket should be no more than 5
degrees less than the vertical down to at least 39" (99cm) below the waterline. The Fastlane Pro is 21"
(53,3cm) wide. Consequently, the 21" (53,3cm) section of wall where the bracket is located should be
straight or near straight.

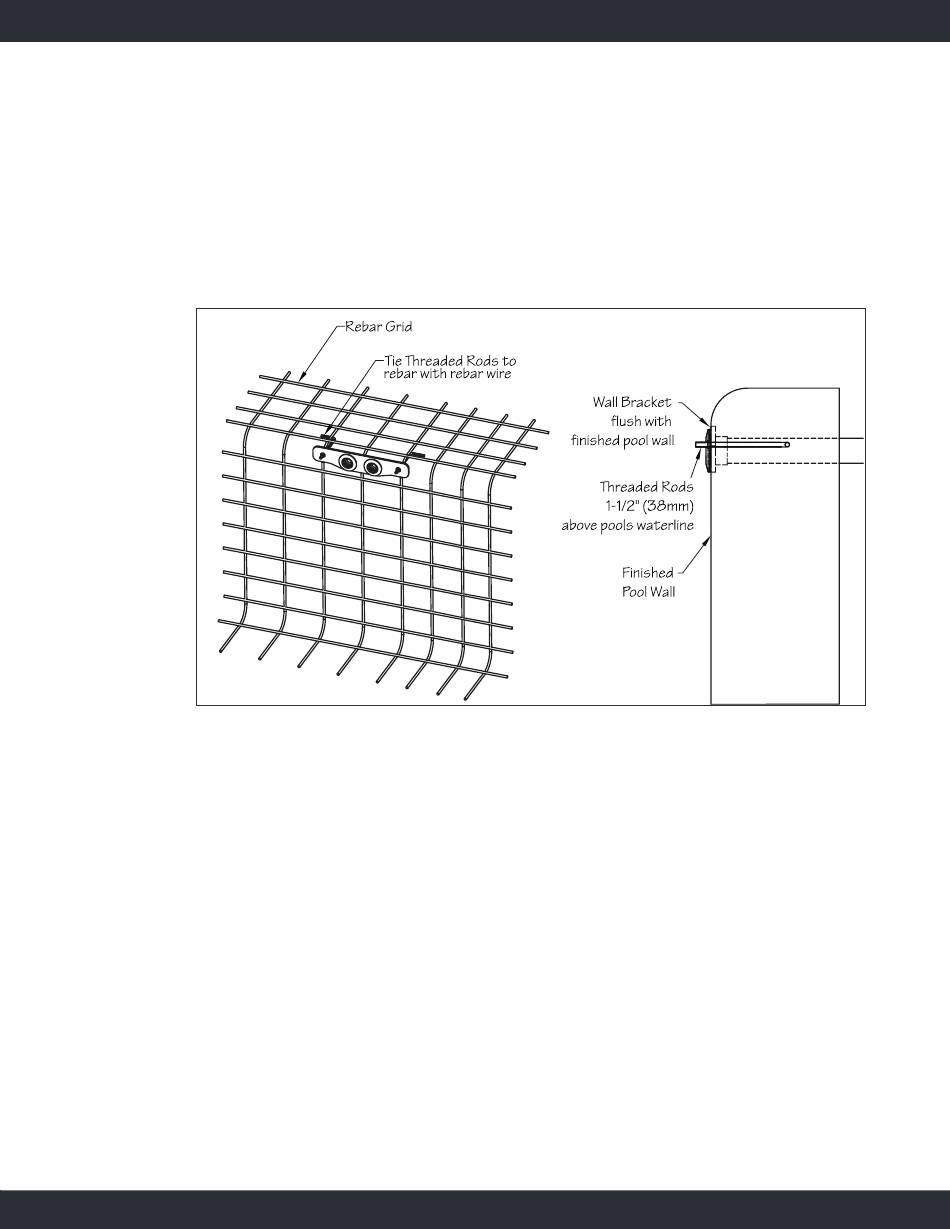

The threaded rods attached to the bracket MUST be tied back to the rebar of the pool with rebar wire. Once
encased in concrete, these rods will serve as a suitable hanger. The threaded rods must penetrate 1-1/4" to
1-1/2" (31,8mm x 38mm) into the $nished pool and will be used to hang the Fastlane Pro.
Ehf- 3-1
0/
