Potentiometer Torch (8-Pole) - EWM Tetrix DC Smart 2.0 T4.05 Operating Instructions Manual

Functional characteristics
TIG welding
5.1.8.7

Potentiometer torch (8-pole)

The welding machine needs to be configured for operation with a potentiometer
torch > see 5.1.8.8 chapter.

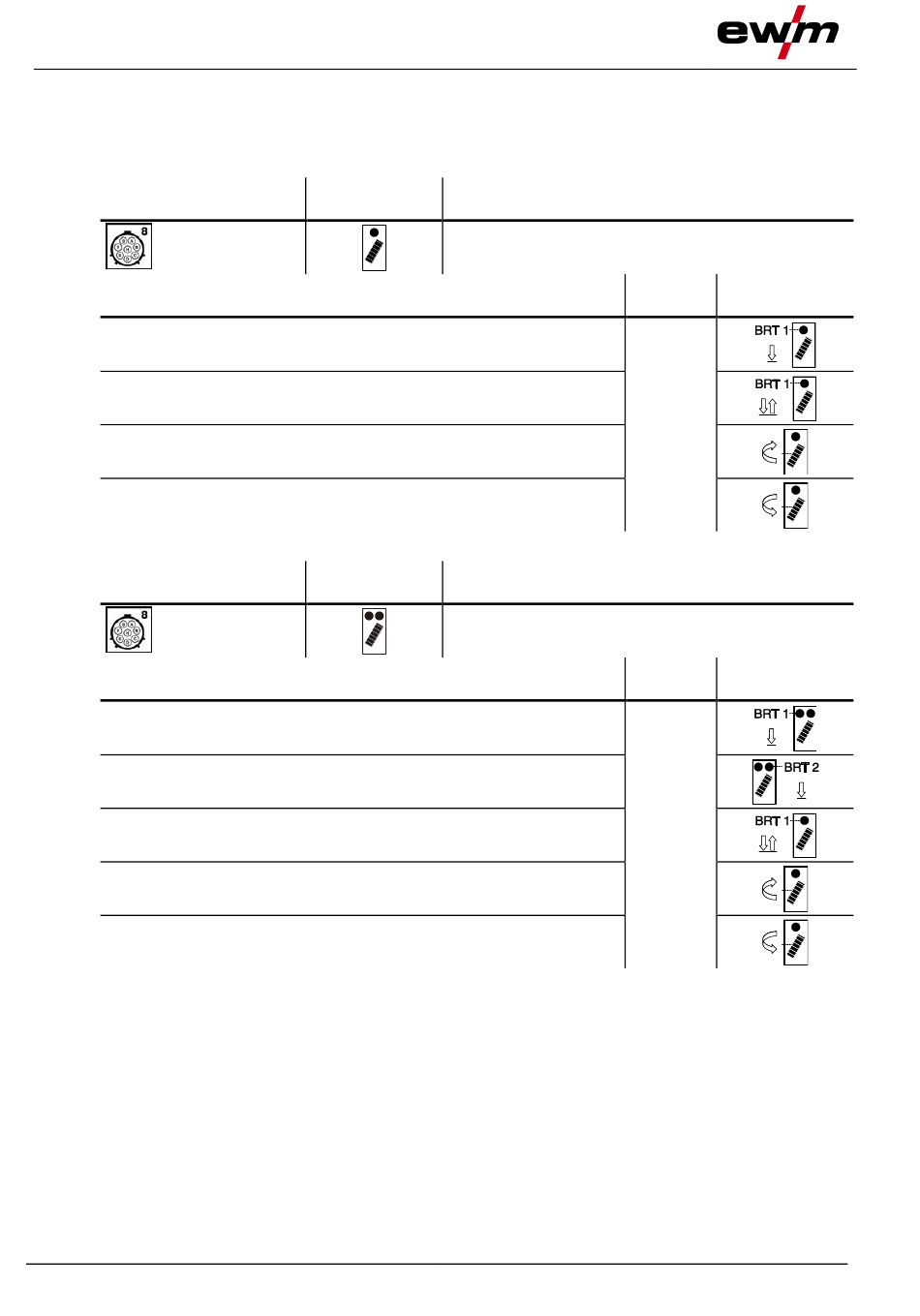

Potentiometer torch with one torch trigger
Figure
Functions
Welding current on/off
Secondary current (tapping function
Increase welding current
Decrease welding current
Potentiometer torch with two torch triggers
Figure
Functions
Welding current on/off
Secondary current
Secondary current (tapping function
Increase welding current
Decrease welding current
1
> see 5.1.8.1 chapter
38
Operating ele- Explanation of symbols
ments
BRT 1 = torch trigger 1
)
1
Operating ele- Explanation of symbols
ments
BRT 1 = torch trigger 1
BRT 2 = torch trigger 2
)
1
Mode Operating ele-
ments
3
Mode Operating ele-
ments
3
