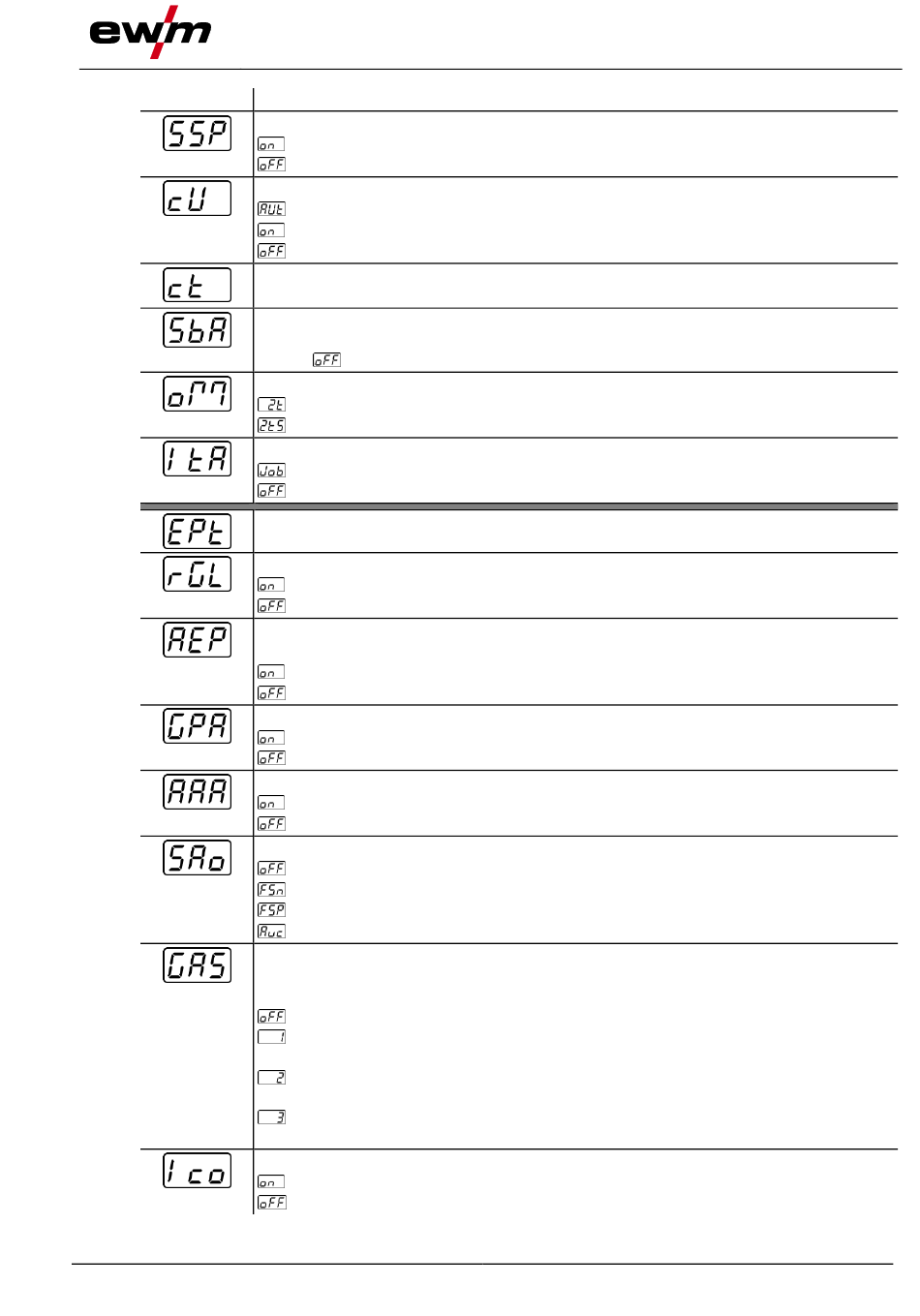

Display
099-00T405-EW501
14.02.2022
Setting/selection
Process activation setting > see 5.1.4.5 chapter
-------Separate process activation (ex works)
-------Permanent process activation
Torch cooling mode
-------Automatic operation (ex works)
-------Permanently enabled
-------Permanently disabled
Welding torch cooling, post-flow time
Setting 1–60 min. (ex works 5 min.)
Time-based power-saving mode > see 5.3 chapter
Time to activation of the power-saving mode in case of inactivity.
Setting = disabled or numerical value 5-60 min..
Operating mode switching via interface for automated welding
------Non-latched
-------Special non-latched
Re-ignition after arc interruption > see 5.1.3.3 chapter
-------JOB-dependent time (ex works 5 s).
-------Function disabled or numerical value 0.1–5.0 s.
Expert menu
AC average value controller
-------Function enabled (ex works)
-------Function disabled
Reconditioning pulse (tungsten ball stability)
Cleaning effect of the tungsten ball at the end of welding.
-------Function enabled (ex works)
-------Function disabled
Automatic gas post-flow function > see 5.1.1.1 chapter
-------Function on
-------Function off (factory setting)
activArc voltage measuring
-------Function enabled (ex works)
-------Function disabled
Error output to interface for automated welding, contact SYN_A
-------AC synchronisation or hot wire (ex works)
-------Error signal, negative logic
-------Error signal, positive logic
-------AVC (Arc voltage control) connection
Gas monitoring
Depending on where the gas sensor is situated, the use of a pilot static tube and the
welding process monitoring phase.
-------Function disabled (ex works).
-------Monitoring during the welding process. Gas sensor between gas valve and
welding torch (with pilot static tube).
-------Monitoring prior to the welding process. Gas sensor between gas valve and
welding torch (without pilot static tube).
-------Permanent monitoring Gas sensor between gas cylinder and gas valve (with
pilot static tube).
AC commutation optimisation
-------Function enabled
-------Function disabled (ex works)
Functional characteristics
1
1
1
Machine configuration menu
