EWM Tetrix DC Smart 2.0 T4.05 Operating Instructions Manual page 52

Functional characteristics

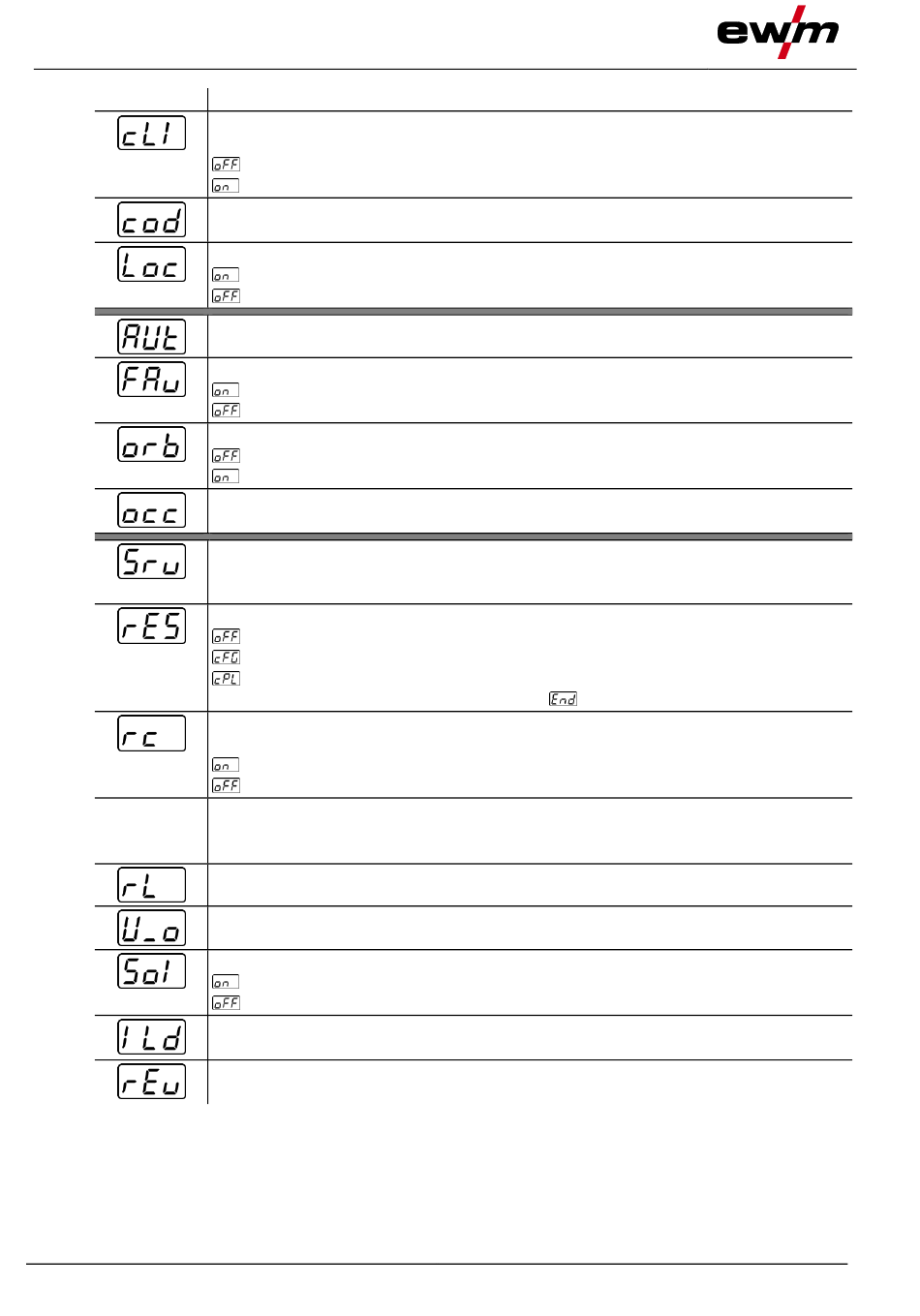

Machine configuration menu
Display
for AC welding machines only.
1
not used
2
for components for automated welding (RC) only.
3
52
Setting/selection
Minimum current limit (TIG) > see 5.1.2 chapter
Depending on the set tungsten electrode diameter
------- Function disabled
------- Function enabled (ex works)
Access control – access code
Setting: 000 to 999 (000 ex works)
Access control > see 5.4 chapter
------- Function enabled
------- Function disabled (ex works)
Automation menu 3
Fast take-over of control voltage (automation)
------- Function enabled
------- Function disabled (ex works)
Orbital welding 3
------- Function disabled (ex works)
------- Function enabled
Orbital welding
3
Correction value for orbital current
Service menu
Any changes to the service menu should be agreed with the authorised service person-
nel.
Reset (to factory setting)
------- Disabled (ex works)
------- Reset the values in the machine configuration menu
------- Complete reset of all values and settings
Resetting is performed when exiting the menu (
Automated/Manual (rC on/off) operating mode
Select machine/function control
------with external control voltages/signals
------with machine control
Software version query
System bus ID and version number are separated by a dot.
Example: 07.0040 = 07 (system bus ID) 0.0.4.0 (version number)
Cable resistance alignment > see 5.1.11 chapter
Only qualified service personnel may change the parameters!
TIG HF start (soft/hard) switching
------- soft ignition (factory setting).
------- hard ignition.
Ignition pulse limit
Setting 0 ms–15 ms (increments of 1 ms)
PCB state – qualified service personnel only!
3
).
3
