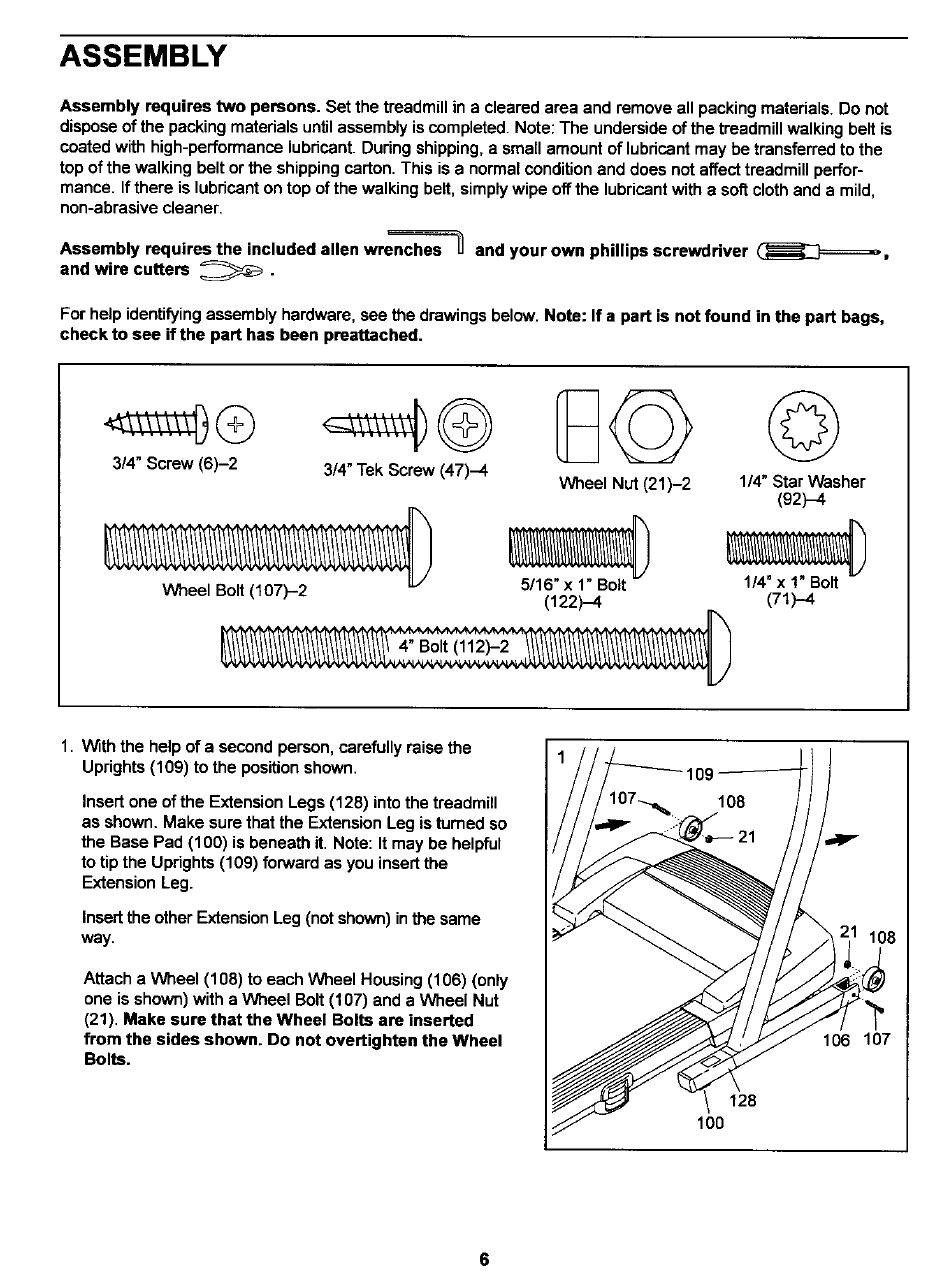

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials untilassembly is completed. Note: The underside of the treadmillwalking belt is
coated with high-performance lubricant.During shipping, a small amount of lubricantmay be transferredto the
top of the walking belt or the shippingcarton. This is a normal conditionand does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simplywipe off the lubricantwith a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wre_ and your own phillips screwdriver (_======_,
and wire cutters _.
For help identifyingassembly hardware, see the drawings below. Note: If a part is not found in the part bags,
check to see if the part has been preattached.
3/4" Screw (6)-2
3/4" Tek Screw (47)-4
Wheel Bolt (107)-2
Wheel Nut (21)-2
5/16" x 1" Bolt
( 122)-4
©
1/4" Star Washer
(92)-4
1/4" x 1" Bolt
(71)-4
1. With the help of a second person, carefully raise the
Uprights (109) to the position shown.
Insert one of the Extension Legs (128) into the treadmill
as shown. Make sure that the Extension Leg is turned so
the Base Pad (100) is beneath it. Note: It may be helpful
to tip the Uprights (109) forward as you insertthe
Extension Leg.
Insert the other ExtensionLeg (not shown) in the same
way.
Attach a Wheel (108) to each Wheel Housing (106) (only
one is shown) with a Wheel Bolt (107) and a Wheel Nut
(21). Make sure that the Wheel Bolts are inserted
from the sides shown. Do not overtighten the Wheel
Bolts.
109
128
100
106 107
