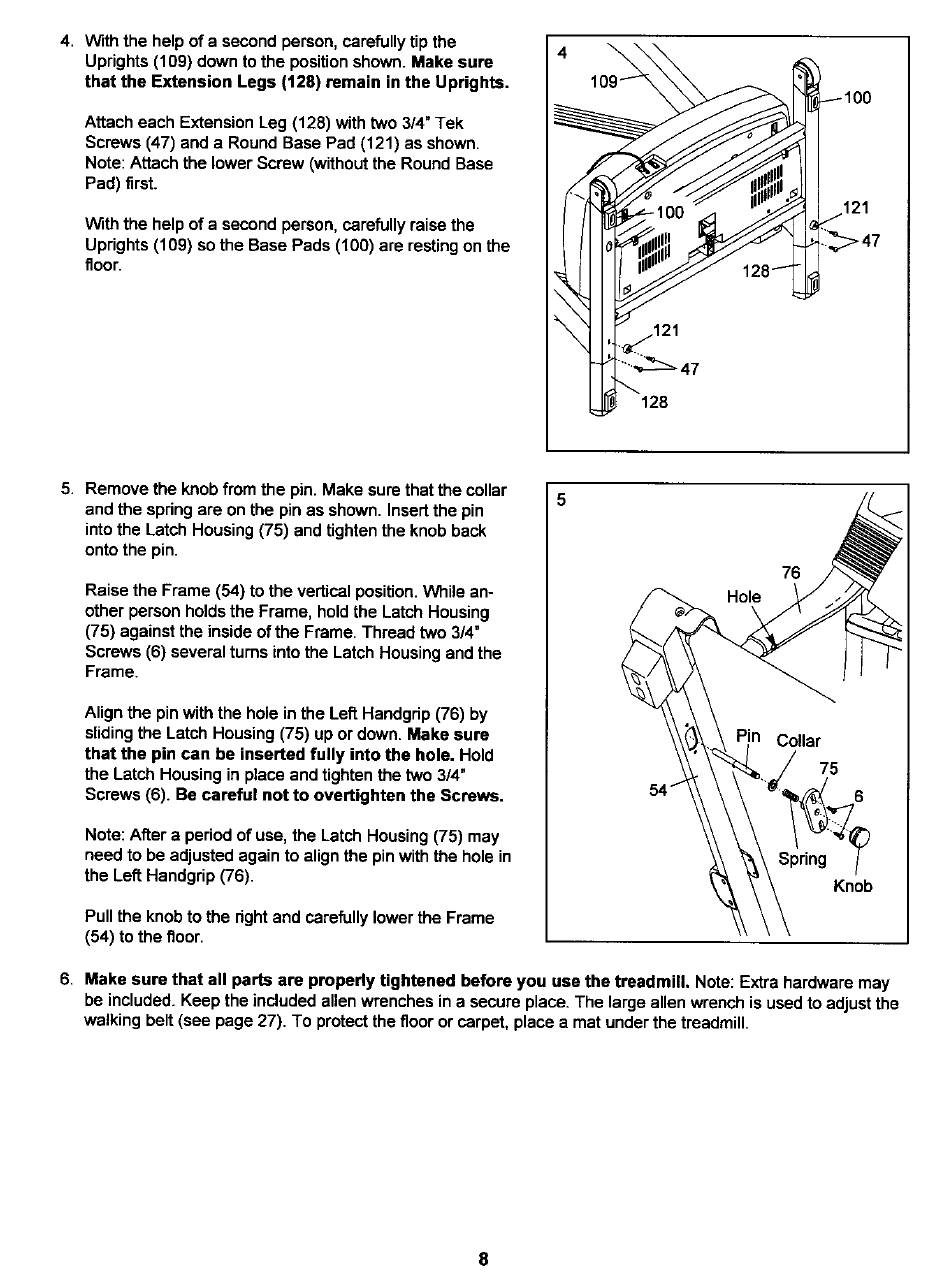

4. With the help of a second person, carefully tip the
Uprights (109) down to the positionshown. Make sure
that the Extension Legs (128) remain in the Uprights.
Attach each Extension Leg (128) with two 3/4" Tek
Screws (47) and a Round Base Pad (121) as shown.
Note: Attach the lower Screw (withoutthe Round Base
Pad) first.
With the help of a second person, carefully raise the
Uprights (109) so the Base Pads (100) are resting on the
floor.
4 \
5. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insertthe pin
into the Latch Housing (75) and tighten the knob back
onto the pin.
Raise the Frame (54) to the vertical position.While an-
other person holds the Frame, hold the Latch Housing
(75) against the inside of the Frame. Thread two 3/4"
Screws (6) several turns into the Latch Housing and the
Frame.
Align the pin with the hole in the Left Handgrip (76) by
sliding the Latch Housing (75) up or down. Make sure
that the pin can be inserted fully into the hole. Hold
the Latch Housing in place and tighten the two 3/4"
Screws (6). Be careful not to overtighten the Screws.
Note: After a period of use, the Latch Housing (75) may
need to be adjusted again to align the pin with the hole in
the Left Handgrip (76).
Pull the knobto the right and carefully lower the Frame
(54) to the floor.
Hole
76
Collar
75
Spring
6
Knob
6. Make sure that all parts are properly tightened before you use the treadmill, Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjustthe
walking belt (see page 27). To protectthe floor or carpet, place a mat under the treadmill.
8
