ICON PROFORM SPORT 7.0c User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

proformfitness.ca
Model No. PFTL50920C.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to iconservice.ca.
CUSTOMER CARE
Call toll-free 1-888-936-4266
Mon.–Fri. 7:30 a.m.–4:30 p.m. ET
(excluding holidays)
or email us at
customerservice@iconcanada.ca
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFORM SPORT 7.0c and is the answer not in the manual?

Questions and answers

عبدالقادر
January 21, 2025

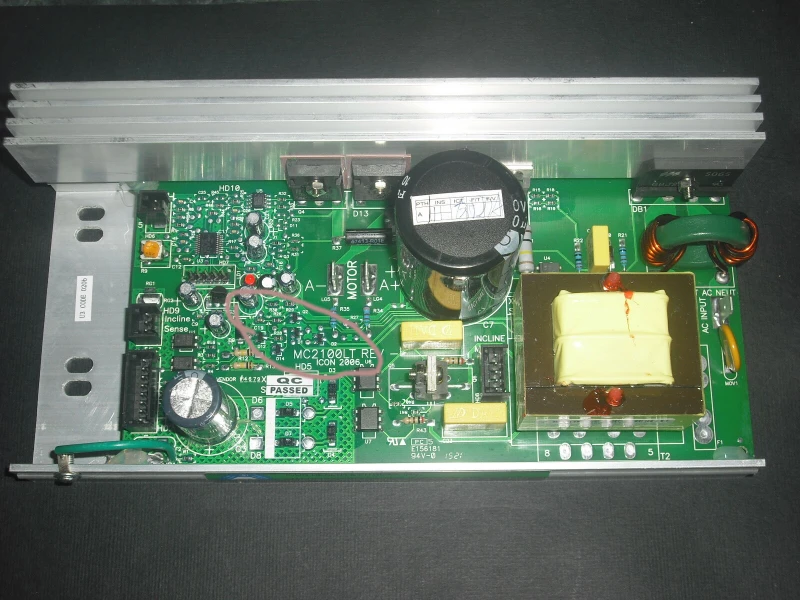

مخطط وحدة تحكم

User image 678eec2db2926
0

Related Manuals for ICON PROFORM SPORT 7.0c

Summary of Contents for ICON PROFORM SPORT 7.0c

  • Page 1 proformfitness.ca USER’S MANUAL Model No. PFTL50920C.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to iconservice.ca. CUSTOMER CARE Call toll-free 1-888-936-4266 Mon.–Fri.

  • Page 2: Table Of Contents

    Note: The decals may not be shown at actual size. 305284 PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The Bluetooth word mark and logos are registered trademarks of Bluetooth SIG, Inc.

  • Page 3: Important Precautions

    To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 19. Always stand on the foot rails when starting frame securely in the storage position. Do or stopping the walking belt. Always hold the not operate the treadmill while it is folded. handrails while using the treadmill. 26. Do not change the incline of the treadmill by 20.

  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new PROFORM reading this manual, please see the front cover of this ® SPORT 7.0C treadmill. The SPORT 7.0C treadmill manual. To help us assist you, note the product model provides an impressive selection of features designed number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 8: Assembly

    ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 7. • Place all parts in a cleared area and remove the • Assembly requires the following tools: packing materials. Do not dispose of the packing the included hex keys materials until you finish all assembly steps.
  • Page 9 2. Make sure that the power cord is unplugged. Remove the tie securing the Upright Wire (80) to the front of the Base (88). Next, identify the Right Upright (79). Have a second person hold the Right Upright near the Base (88).
  • Page 10 4. Set the Right Upright (79) on the Base (88) as shown. Make sure not to pinch the Upright Wire (80). Then, slide the Right Upright so that the 3/8" x 2 3/8" Screw (2) in the Base is inserted into the slot (E) in the Right Upright. Do not tighten the Screw yet.
  • Page 11 6. Remove and save the four indicated 5/16" x 3/4" Screws (13). 7. Attach a Handrail (72) to the Right Upright (79) with two 5/16" x 2" Screws (5) and two 5/16" Star Washers (7); start both Screws, and then tighten them. Do not pinch the Upright Wire (80).
  • Page 12 8. Attach the other Handrail (72) to the Left Upright (78) with two 5/16" x 2" Screws (5) and two 5/16" Star Washers (7); start both Screws, and then tighten them. Then, remove and discard the two indicated screws (F). 9.
  • Page 13 10. Set the Console Base (74) face down on a soft surface to avoid scratching the Console Base. Remove and discard the two indicated screws (G). Then, remove the Crossbar (75). Next, identify the Left and Right Trays (85, 86). Attach the Trays to the Console Base (74) with eight #8 x 1/2"...
  • Page 14 12. With the help of a second person, hold the con- sole assembly (H) near the Handrails (72). Connect the ground wire (I) from the console assembly (H) to the Console Ground Wire (76) on the Crossbar (75). Next, insert the Upright Wire (80) through the two indicated looped ties (J).
  • Page 15 14. Attach the Crossbar (75) to the console assem- bly (H) with four #8 x 3/4" Screws (11); start all four Screws, and then tighten them. Do not overtighten the Screws. Firmly tighten the four 5/16" x 3/4" Screws (13). 15.
  • Page 16 16. Orient the Storage Latch (52) as shown. Attach the Storage Latch to the Left Upright (78) with two #10 x 3/4" Screws (9). Do not overtighten the Screws. 17. Tighten all eight indicated Screws (2, 3, 4) from steps 4 and 5. 2, 3, 4 2, 3, 4 18.

  • Page 17: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD capable of carrying 15 or more amps. To avoid overloading the circuit, do not plug other electrical Use a Surge Suppressor devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into Your treadmill, like other electronic equipment, can be an outlet on the same circuit.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can even listen to your favorite workout music or audio books with the console’s sound system while you The treadmill console offers a selection of features exercise. designed to make your workouts more effective and enjoyable.
  • Page 19 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before you turn on the power. If you do See HOW TO TURN ON THE POWER at the left.
  • Page 20 4. Change the incline of the treadmill as desired. Vertical Distance (VRT FT or VRT M)—The distance you have walked or run in vertical feet or To change the incline of the treadmill, press the vertical meters. Incline increase and decrease buttons or one of the numbered Incline buttons.
  • Page 21 6. Turn on the fan if desired. HOW TO USE AN ONBOARD WORKOUT The fan features several 1. Insert the key into the console. speed settings. Press the Fan buttons repeatedly to See HOW TO TURN ON THE POWER on page 19. select a fan speed or to turn the fan on or off.
  • Page 22 HOW TO CONNECT YOUR TABLET TO THE To stop the workout at any time, press the Stop button. To restart the workout, press the Start but- CONSOLE ton. The walking belt will begin to move at 1 mph. When the next segment of the workout begins, the The console supports Bluetooth connections to tablets treadmill will automatically adjust to the speed and via the iFit app and to compatible heart rate monitors.
  • Page 23 4. Record and track your workout information. THE SETTINGS MODE Follow the instructions in the iFit app to record and 1. Select the settings mode. track your workout information. To select the settings mode, press the Settings 5. Disconnect your tablet from the console if button.
  • Page 24 Display Test—This screen is intended to be used Demo Mode—The currently selected demo mode by service technicians to identify whether the option will appear in the display. The console display is working correctly. features a demo mode, designed to be used if the treadmill is displayed in a store.

  • Page 25: Ic Information

    THE OPTIONAL CHEST HEART RATE MONITOR THE OPTIONAL TABLET HOLDER Whether your The optional goal is to tablet holder (M) burn fat or to will hold your strengthen your tablet securely cardiovascular in place and system, the key enable you to achieving the to use your best results is...

  • Page 26: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at to zero before you fold the treadmill. Then, remove the left.

  • Page 27: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE b. After the power cord has been plugged in, make sure that the key is inserted into the console. Regular maintenance is important for optimal per- formance and to reduce wear. Inspect and properly c. Check the power switch located on the treadmill tighten all parts each time the treadmill is used.
  • Page 28 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is not centered between the foot rails a. Use only a surge suppressor that meets all of the IMPORTANT: If the walking belt rubs against specifications described on page 17. the foot rails, the walking belt may become b.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.
  • Page 30 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 31: Part List

    PART LIST Model No. PFTL50920C.1 R0620A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Ground Screw 3/8" Pin 3/8" x 2 3/8" Screw 9/32" Plastic Bushing 3/8" x 1 1/4" Screw Controller Plate 3/8" x 1 1/2" Screw Plastic Tie 5/16"...

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL50920C.1 R0620A...
  • Page 33 EXPLODED DRAWING B Model No. PFTL50920C.1 R0620A...
  • Page 34 EXPLODED DRAWING C Model No. PFTL50920C.1 R0620A 24 36...
  • Page 35 EXPLODED DRAWING D Model No. PFTL50920C.1 R0620A...

  • Page 36: Ordering Replacement Parts

    This warranty extends only to the original purchaser (customer) and is not transferrable. ICON’s obliga- tion under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service providers. All repairs for which warranty claims are made must be preauthorized by ICON.
