USER'S MANUAL
Model No. GGTL39613.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today, go
to www.workoutwarehouse.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.workoutwarehouse.com.
Or call 1-877-776-4777
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOLD'S GYM TRAINER 420 and is the answer not in the manual?

Questions and answers

lee l voyles
March 19, 2025

my model GGTL396131 was working them it stopped working and would noy power up

2 comments:
Mr. Anderson
March 19, 2025

Your ICON GOLD'S GYM TRAINER 420 model GGTL396131 may not be powering up due to the following reasons:

1. Demo Mode Activated – If the console display remains lit after removing the key, the treadmill might be in demo mode. Hold down the Stop button for a few seconds to turn it off.

2. Power Cord Issues – Ensure that the power cord is plugged into a surge suppressor and that the suppressor is connected to a properly grounded outlet.

3. Surge Suppressor Compatibility – Use only a surge suppressor that meets the treadmill’s specifications.

4. AFCI Outlet Tripping – If the treadmill is connected to an AFCI-equipped outlet and the circuit breaker trips repeatedly, you may need an arc filter.

Check these points to troubleshoot the issue.

This answer is automatically generated

lee l voyles
March 19, 2025

@lee l voyles i did try not using anything but it straight inyo an outlet

Barb
April 11, 2025

Gold's Trainer 420 - powers up but no screen back light. All functions work. Magnetic key is in place. Have done resets half a dozen times. Powerbar functional. The only thing that doesn't work besides the backlight on the screen is the treadmill won't go when you press START. I had it for 3 years worked perfectly. Got injured, had surgery, couldn't walk for 2 years and the treadmill sat unplugged for that duration. Today, the two things I mentioned, the backlight and the START not working. Any ideas?

1 comments:
Mr. Anderson
April 11, 2025

Possible causes for the backlight and START function not working after being unplugged for two years include:

1. Power cord issue: Ensure the power cord is plugged in properly. If it is, unplug it, wait five minutes, and plug it back in.

2. Key not inserted correctly: Remove the key from the console and reinsert it.

3. Console damage or moisture: If liquids came into contact with the console, it may be damaged.

4. Electrical components wear: Not unplugging the treadmill during long-term storage can cause premature wear of electrical components.

5. Demo mode: The console may be in display demo mode, which keeps lights on but disables functions.

If these steps do not resolve the issue, service may be required.

This answer is automatically generated

ALICIA A WALKER
January 22, 2025

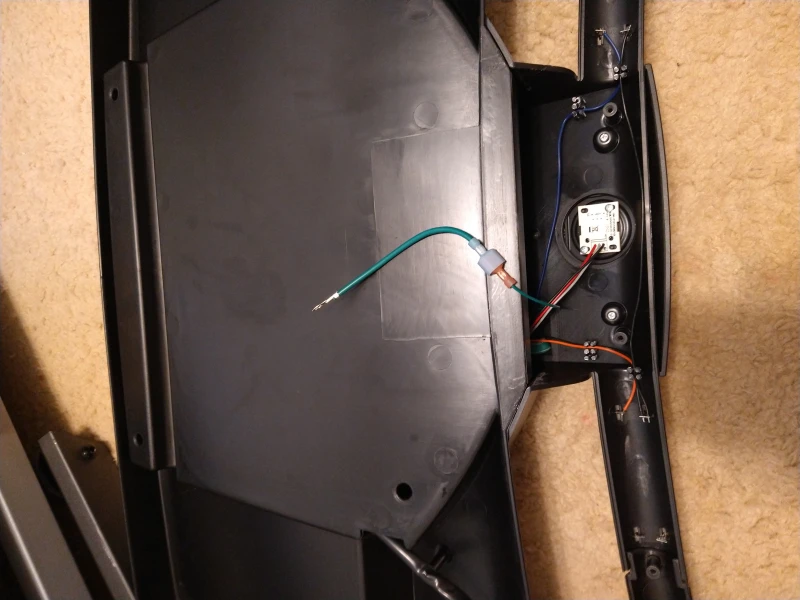

Where do I connect the ground wire from the console to the cross bar? The diagram shows to connect it to another wire on the cross bar but I don't have one.

User image 679150f080d35
1 comments:
Mr. Anderson
May 14, 2025

Connect the console ground wire to the ground wire on the Console Crossbar (61).

This answer is automatically generated

عبدالقادر
January 21, 2025

وحدة تحكم 36

User image 678ef6756d5df
1 comments:
Mr. Anderson
May 14, 2025

The controller (part 36) in the ICON TRAINER 420 manages and regulates the treadmill's electrical and motor functions, allowing the user to control speed, incline, and other settings.

This answer is automatically generated

عبدالقادر
January 21, 2025

معرفة مخطط أرقام غيار من فضلك

User image 678eeb446a866
1 comments:
Mr. Anderson
May 14, 2025

The parts diagram for the ICON TRAINER 420 is shown in the EXPLODED DRAWING sections labeled A, B, and C for Model No. GGTL39613.1 R0315A. These diagrams visually display the assembly of the treadmill, including the placement and relationship of parts such as the console, frame, motor, handrails, and hardware components. Each part is numbered to correspond with the PART LIST for identification.

This answer is automatically generated

عبدالقادر
January 21, 2025

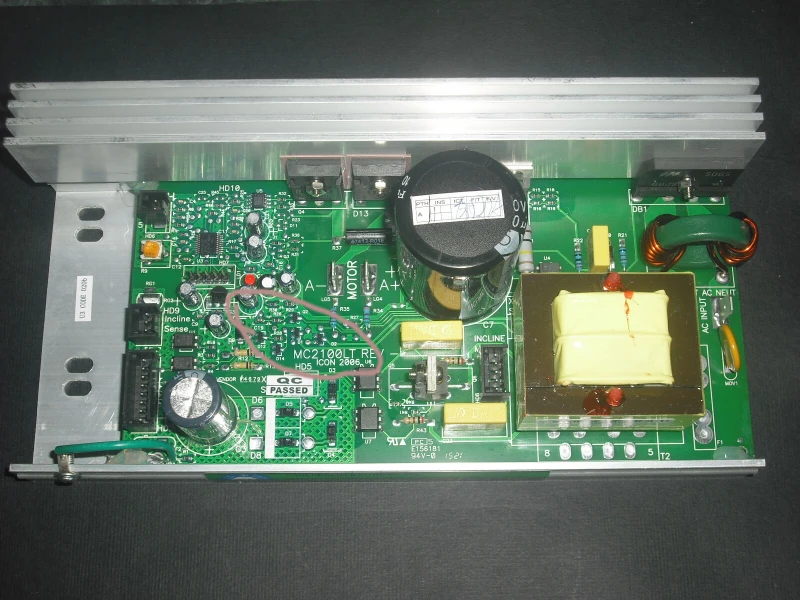

مخطط لمعرفة أرقام غيار

User image 678eea4a326ff
1 comments:
Mr. Anderson
May 14, 2025

The parts diagram for the ICON TRAINER 420 includes exploded drawings labeled A, B, and C for model number GGTL39613.1 R0315A. These diagrams show the layout and placement of various components such as screws, bolts, console parts, handrails, frame parts, and washers, each identified by numbered labels.

This answer is automatically generated

Gene M.
July 26, 2025

Where do I oil my treadmill? It is squeaky

Gary Walls
June 29, 2025

Can you reset a golds gym 420 treadmill treadmill as soon as I turn it on starts to incline

Subscribe to Our Youtube Channel

Summary of Contents for ICON GOLD'S GYM TRAINER 420

  • Page 1 www.workoutwarehouse.com USER’S MANUAL Model No. GGTL39613.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.workoutwarehouse.com/ registration. CUSTOMER CARE For service at any time, go to www.workoutwarehouse.com.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .
  • Page 3: Important Precautions

    To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 20. Keep fingers, hair, and clothing away from 25. When folding or moving the treadmill, make the moving walking belt. sure that the storage latch is holding the frame securely in the storage position. 21. The treadmill is capable of high speeds. Adjust the speed in small increments to 26.
  • Page 5 STANDARD SERVICE PLANS...
  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new GOLD’S GYM reading this manual, please see the front cover of this ® TRAINER 420 treadmill. The TRAINER 420 treadmill manual. To help us assist you, note the product model provides an impressive selection of features designed number and serial number before contacting us.
  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.
  • Page 8: Assembly

    ASSEMBLY • To hire an authorized service technician to • Left parts are marked “L” or “Left” and right parts assemble the treadmill, call 1-800-445-2480. are marked “R” or “Right.” • Assembly requires two persons. • To identify small parts, see page 7. •...
  • Page 9 3. Identify the Right Upright (76). Have a second person hold the Right Upright near the Base (74). Wire See the inset drawing. Tie the wire tie in the Right Upright (76) securely around the end of the Upright Wire (63). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the Right Upright.
  • Page 10 5. Hold the Right Upright (76) against the Base (74). Be careful not to pinch the Upright Wire (63). Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star Washer (3) into the top hole in the Right Upright (76).
  • Page 11 7. Set the console assembly face down on a soft surface to avoid scratching the console Console assembly. Assembly Remove and discard the two indicated screws (C). Then, remove the Console Crossbar (61). 8. Remove and discard the four screws (D) from the Left and Right Handrails (59, 64).
  • Page 12 9. Attach the Console Crossbar (61) to the Left and Right Uprights (66, 76) with four #10 x 3/4" Screws (8) and four #10 Star Washers (23); start all four Screws, and then tighten them. Firmly tighten the two 5/16" x 3/4" Screws (5) and the two 5/16"...
  • Page 13 11. Insert the wires into the Right Handrail (64) through the indicated hole as you set the con- Console Assembly sole assembly on the Uprights (66, 76). Make sure that no wires are pinched. Attach the console assembly with ten #8 x 3/4" Screws (4);...
  • Page 14: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.
  • Page 15 CONSOLE DIAGRAM FEATURES OF THE CONSOLE To turn on the power, see page 16. To use the man- ual mode, see page 16. To use a preset workout, see The treadmill console offers a selection of features page 18. To use the information mode, see page 19. To use the sound system, see page 19.
  • Page 16 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before you turn on the power. If you do See HOW TO TURN ON THE POWER at the left.
  • Page 17 4. Change the incline of the treadmill as desired. burned, or the speed of the walking belt. Press the Priority Display button repeatedly until the upper To change the incline of the treadmill, press the display shows the information that you are most Incline increase and decrease buttons or one of the interested in viewing.
  • Page 18 HOW TO USE A PRESET WORKOUT and the next segment of the profile will begin to flash. If a different speed and/or incline setting is 1. Insert the key into the console. programmed for the next segment, the speed and/ or incline setting will flash in the display to alert you.
  • Page 19 THE INFORMATION MODE power switch into the reset position, and insert the key into the console. However, when you remove the The console features an information mode that keeps key, the displays will remain lit, although the buttons track of treadmill usage information and allows you to will not function.
  • Page 20: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL Before folding the treadmill, adjust the incline to Before moving the treadmill, fold it as described at the zero. If you do not do this, you may damage the left.
  • Page 21: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE SYMPTOM: The power turns off during use Regularly clean the treadmill and keep the walking a. Check the power switch (see drawing c at the left). belt clean and dry. First, press the power switch into If the switch has tripped, wait for five minutes and the off position and unplug the power cord.
  • Page 22 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center or slips when walked on a. Use only a surge suppressor that meets all of the a. If the walking belt is off-center, first remove the specifications described on page 14.
  • Page 23: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 24: Part List

    PART LIST Model No. GGTL39613.1 R0315A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Ground Screw Right Foot Rail 3/8" x 3 1/4" Screw Idler Roller 3/8" Star Washer Left Rear Foot #8 x 3/4" Screw Wire Tie 5/16"...
  • Page 25: Exploded Drawing

    EXPLODED DRAWING A Model No. GGTL39613.1 R0315A...
  • Page 26 EXPLODED DRAWING B Model No. GGTL39613.1 R0315A...
  • Page 27 EXPLODED DRAWING C Model No. GGTL39613.1 R0315A...
  • Page 28: Ordering Replacement Parts

    ICON’s option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. If replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge.
