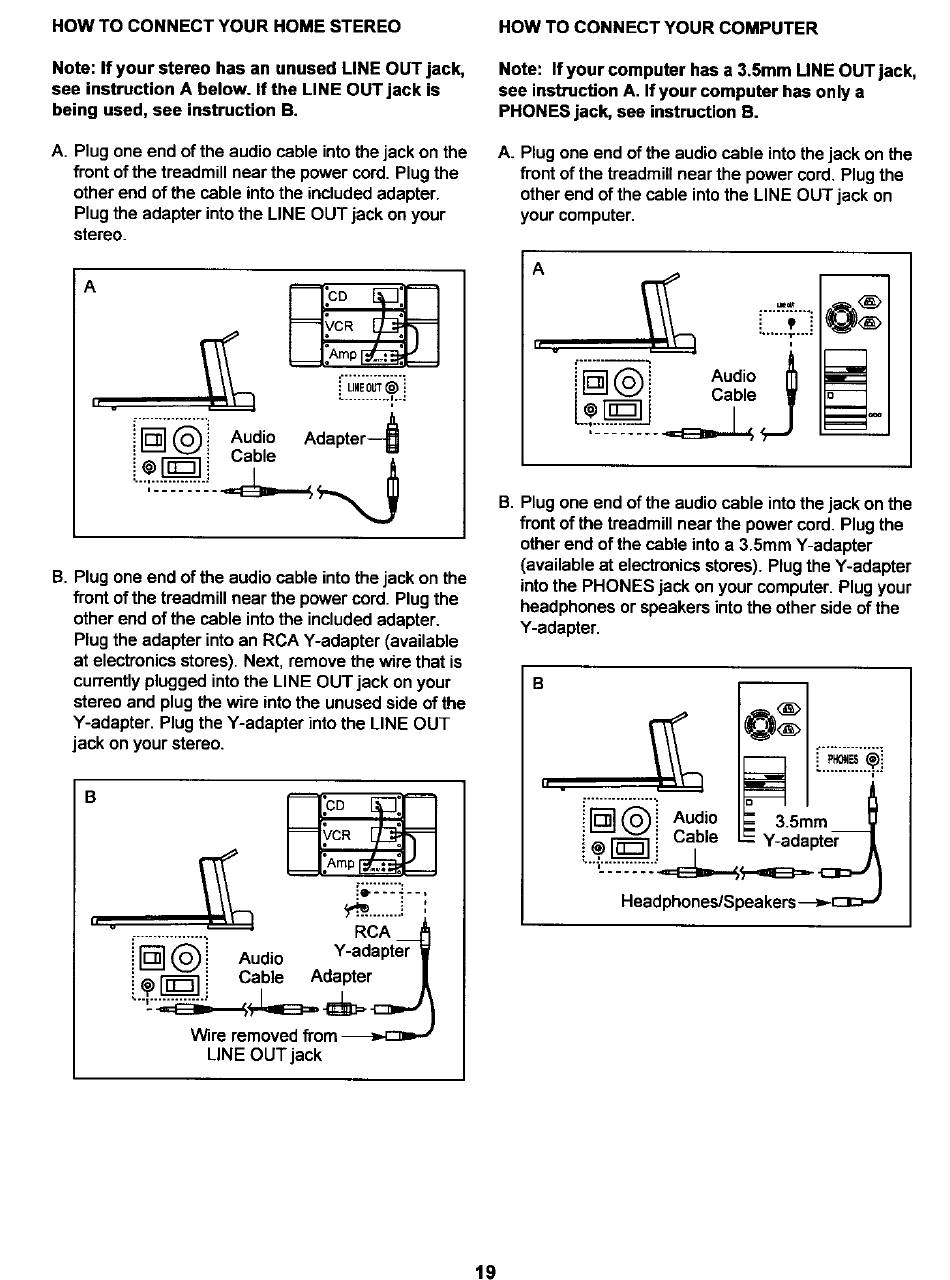

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack Is
being used, see instruction B.
A. Plug one end of the audio cable intothe jack on the
front of the treadmill near the power cord. Plug the
other end of the cable intothe included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
h
uN_ O UT @ i
_. ........... I..J
Au°,o A°a0'o 4
B. Plug one end of the audio cable intothe jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronicsstores). Next, remove the wire that is
currentlyplugged intothe LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter intothe LINE OUT
jack on your stereo.
B
II v
_;.:_...:,,_.,
_...........i
RCA
i r_ @i Audio Y-adapt_-
i _ _ _ Cable Adapter
Wire removed from
LINE OUT jack
HOW TO CONNECT YOUR COMPUTER
Note: Ifyour computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable intothe jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LiNE OUT jack on
your computer.
IA
i. ,..-
,,.,....r ..-
'' " i'1:::'_1"_! Audio [_ --
B. Plug one end of the audio cable intothe jack on the
front of the treadmillnear the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers intothe other side of the
Y-adapter.
B
h .
............... i,,..-..?.
Audio = 3. m. V
@---,r_l i Cable "Y-adapter
