Goodrive800 Pro Series Regenerative Rectifier Hardware Manual
Dimension drawings
Appendix C Dimension drawings

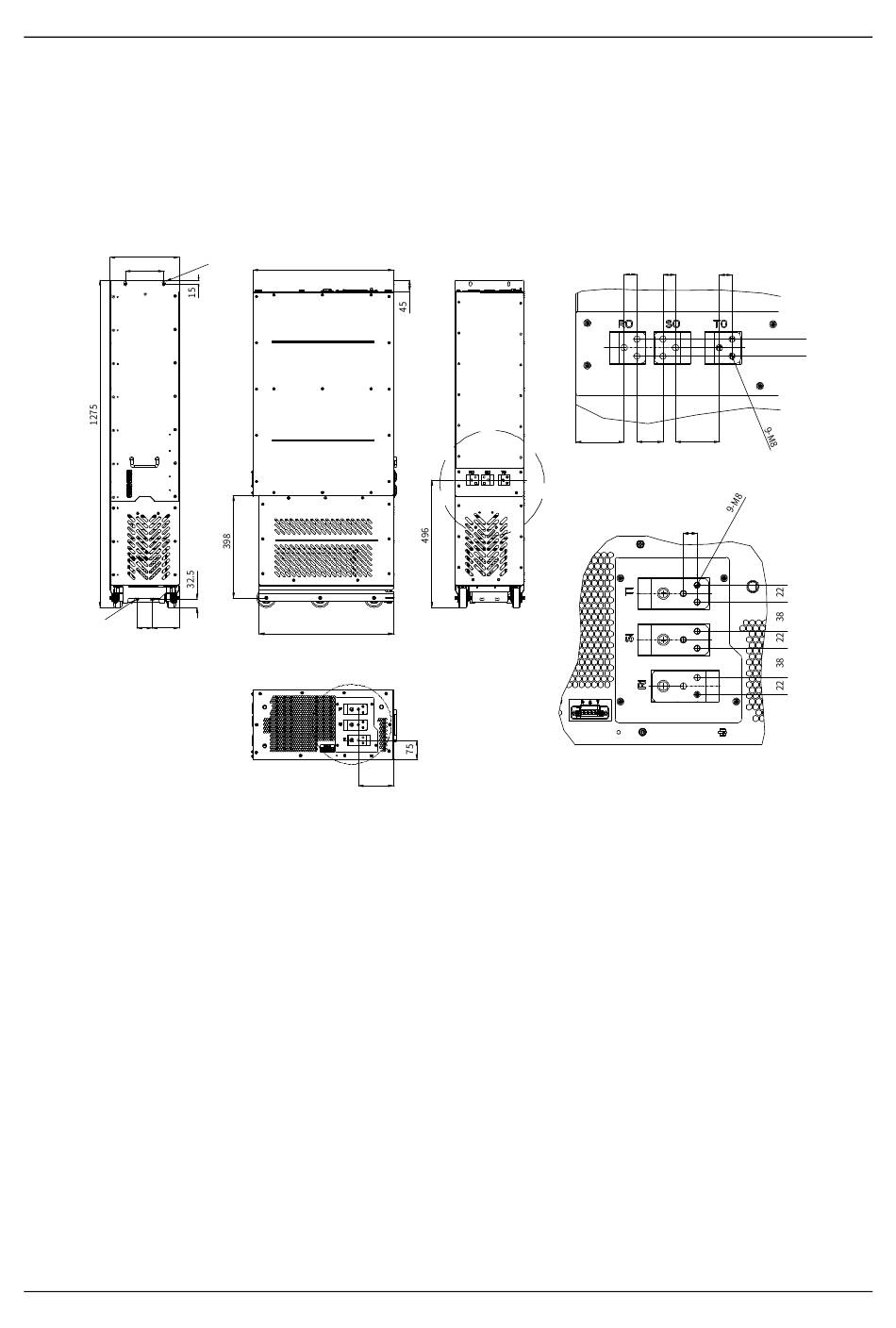

The following figure shows the dimension drawings of the regenerative rectifier filer.
Figure C-1 Installation dimensions
270
2-OB10X16
150
550
16.5
16.5
16.5
62.9
34
56.9
Back view
18
60 105
2-OB10X16
525
Top view
137
202308 (V1.1)
