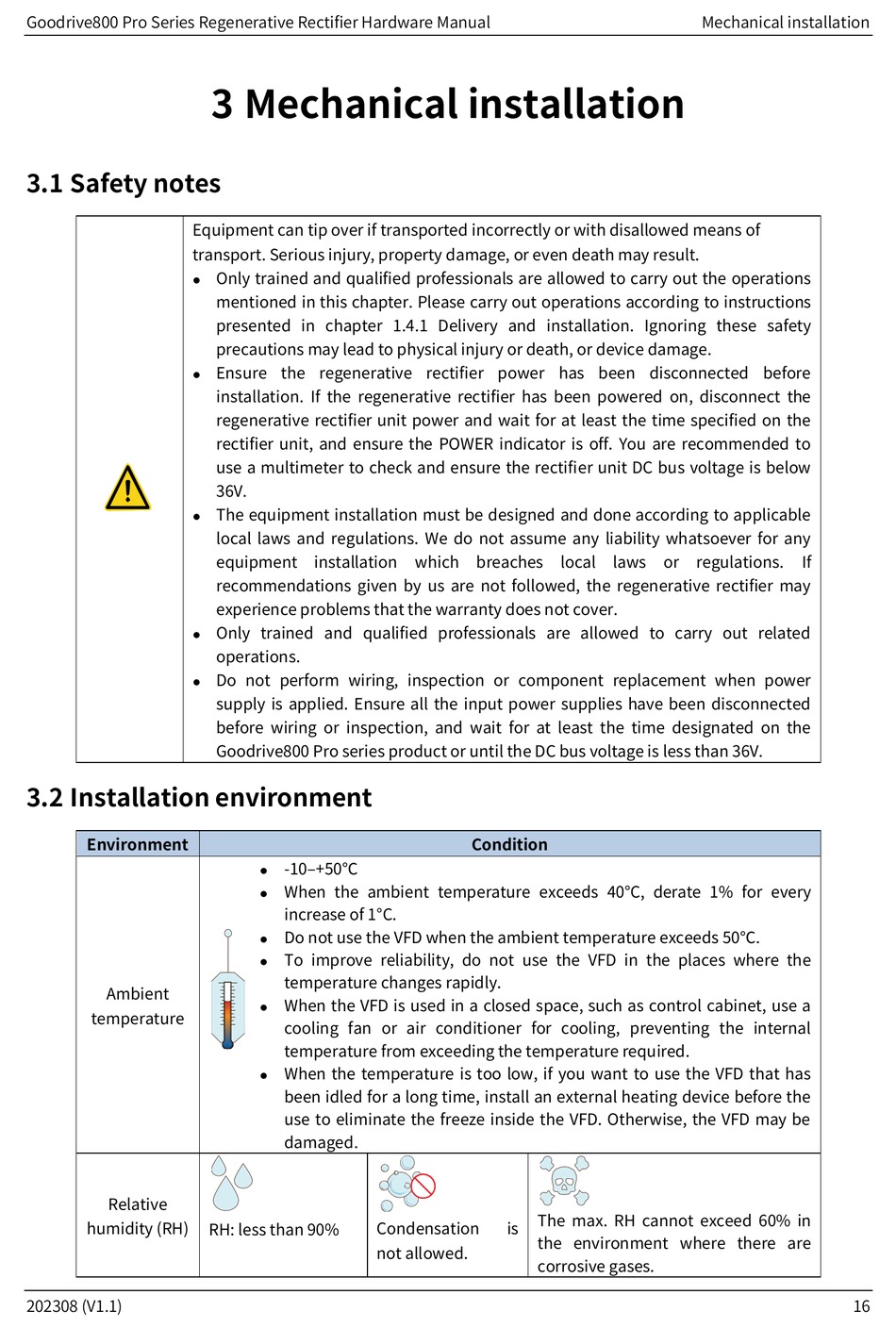

Goodrive800 Pro Series Regenerative Rectifier Hardware Manual

3.1 Safety notes

Equipment can tip over if transported incorrectly or with disallowed means of
transport. Serious injury, property damage, or even death may result.






3.2 Installation environment

Environment
Ambient
temperature
Relative
humidity (RH)
202308 (V1.1)

3 Mechanical installation

Only trained and qualified professionals are allowed to carry out the operations
mentioned in this chapter. Please carry out operations according to instructions
presented in chapter 1.4.1 Delivery and installation. Ignoring these safety
precautions may lead to physical injury or death, or device damage.
Ensure the regenerative rectifier power has been disconnected before
installation. If the regenerative rectifier has been powered on, disconnect the
regenerative rectifier unit power and wait for at least the time specified on the
rectifier unit, and ensure the POWER indicator is off. You are recommended to
use a multimeter to check and ensure the rectifier unit DC bus voltage is below
36V.
The equipment installation must be designed and done according to applicable
local laws and regulations. We do not assume any liability whatsoever for any
equipment installation
recommendations given by us are not followed, the regenerative rectifier may
experience problems that the warranty does not cover.
Only trained and qualified professionals are allowed to carry out related
operations.
Do not perform wiring, inspection or component replacement when power
supply is applied. Ensure all the input power supplies have been disconnected
before wiring or inspection, and wait for at least the time designated on the
Goodrive800 Pro series product or until the DC bus voltage is less than 36V.
-10–+50℃

When the ambient temperature exceeds 40°C, derate 1% for every

increase of 1°C.
Do not use the VFD when the ambient temperature exceeds 50℃.

To improve reliability, do not use the VFD in the places where the

temperature changes rapidly.
When the VFD is used in a closed space, such as control cabinet, use a

cooling fan or air conditioner for cooling, preventing the internal
temperature from exceeding the temperature required.
When the temperature is too low, if you want to use the VFD that has

been idled for a long time, install an external heating device before the
use to eliminate the freeze inside the VFD. Otherwise, the VFD may be
damaged.
Condensation
RH: less than 90%
not allowed.
which breaches local
Condition
The max. RH cannot exceed 60% in
is
the environment where there are
corrosive gases.
Mechanical installation
laws or regulations. If
16
