Goodrive800 Pro Series Regenerative Rectifier Hardware Manual

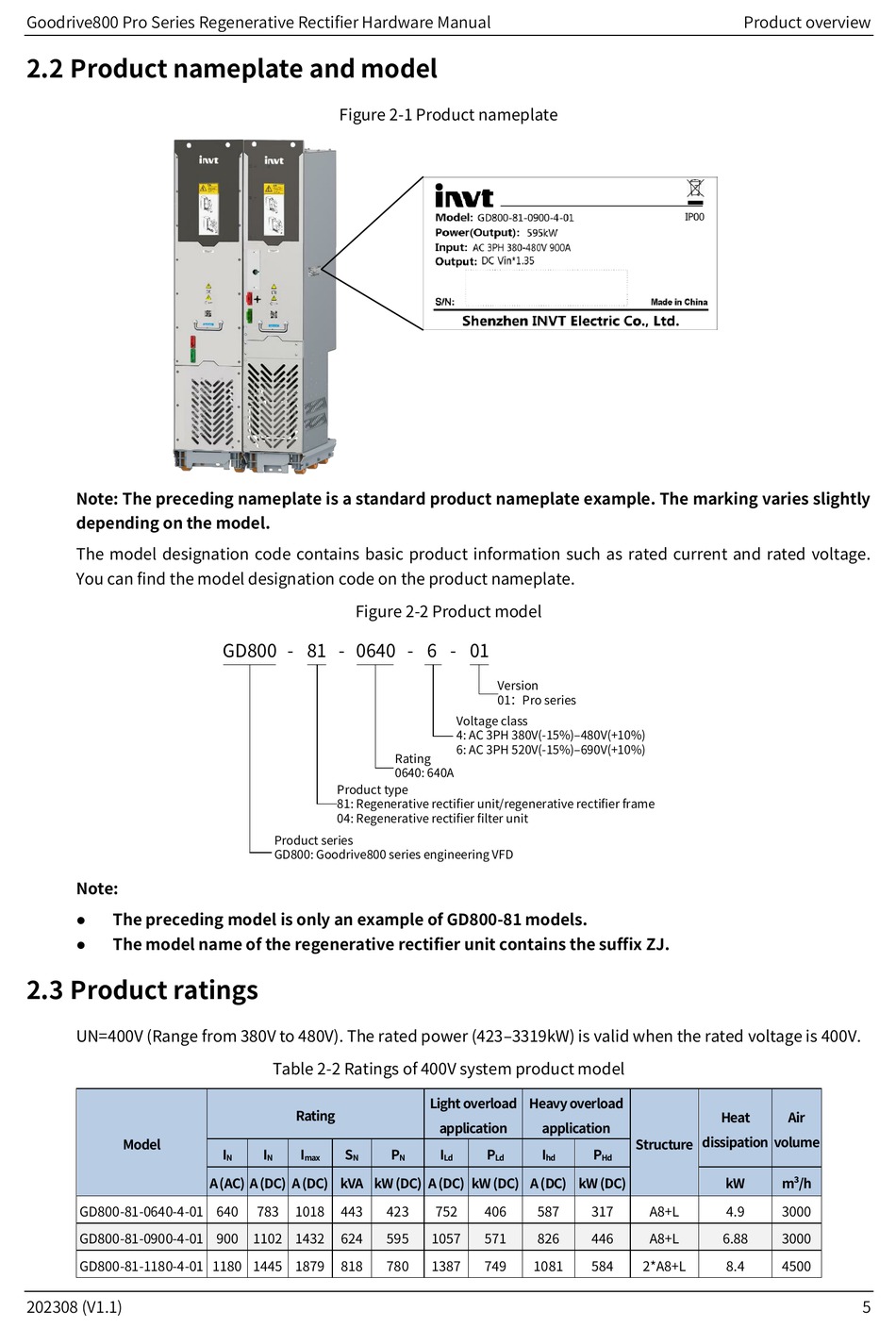

2.2 Product nameplate and model

Note: The preceding nameplate is a standard product nameplate example. The marking varies slightly
depending on the model.
The model designation code contains basic product information such as rated current and rated voltage.
You can find the model designation code on the product nameplate.
Note:
The preceding model is only an example of GD800-81 models.

The model name of the regenerative rectifier unit contains the suffix ZJ.


2.3 Product ratings

UN=400V (Range from 380V to 480V). The rated power (423–3319kW) is valid when the rated voltage is 400V.
Model
GD800-81-0640-4-01 640
GD800-81-0900-4-01 900
GD800-81-1180-4-01 1180 1445 1879
202308 (V1.1)
Figure 2-1 Product nameplate
Figure 2-2 Product model
GD800 - 81 - 0640
Product type
81: Regenerative rectifier unit/regenerative rectifier frame
04: Regenerative rectifier filter unit
Product series
GD800: Goodrive800 series engineering VFD
Table 2-2 Ratings of 400V system product model
Rating
I I I S
N N max N
A (AC) A (DC) A (DC) kVA kW (DC) A (DC) kW (DC) A (DC) kW (DC)
783 1018 443
1102 1432 624
818
- 6 - 01
Version
01：Pro series
Voltage class
4: AC 3PH 380V(-15%)–480V(+10%)
6: AC 3PH 520V(-15%)–690V(+10%)
Rating
0640: 640A
Light overload Heavy overload
application application
P I P I
N Ld Ld hd
423 752 406 587
595 1057 571 826
780 1387 749 1081
Product overview
Heat
dissipation
Structure
P
Hd
kW
317 A8+L 4.9
446 A8+L 6.88
584 2*A8+L 8.4
Air
volume
m³/h
3000
3000
4500
