5.3 RCU interface

Multifunction input 1
Multifunction input 2
Multifunction input 3
Multifunction input 4
Multifunction input 5
Multifunction input 6
Multifunction input 7
High-speed pulse input
Multifunction Analog input
AI3 supports external
connection to -10V power.
STO safety input
202308 (V1.1)

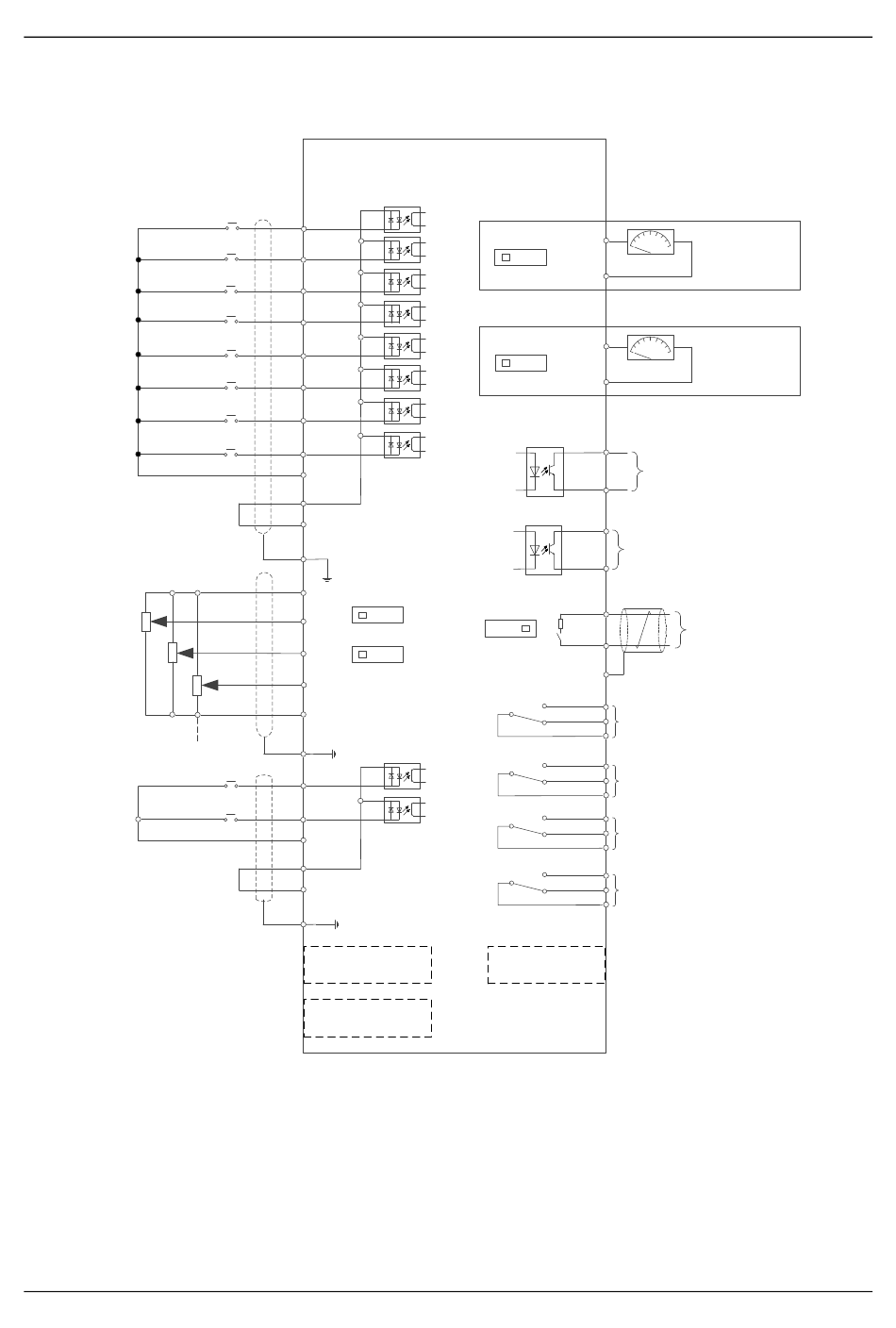

Figure 5-5 RCU circuit wiring
S1
S2
S3
S4
S5
S6
S7
HDI
COM
PW
+24V
PE
Power for
frequency setting
+10V
J3
AI1
V I
J4
AI2
V I
AI3
GND
PE
H1
H2
COM
PW
+24V
PE
(Optional)
Communication card
(Optional) PG card
J1
AO1
V I
GND
J2
AO2
V I
GND
Y1
CME collector output
Y2
Y2 high-speed pulse output or
open collector output
CME
485+
J5
485-
OFF
ON
485G
RO1A
Output of
RO1B
RO1C relay 1
RO2A
Output of
RO2B
RO2C relay 2
RO3A
Output of
RO3B
RO3C relay 3
RO4A
Output of
RO4B
RO4C relay 4
(Optional) IO card
Rectifier Control Unit (RCU)
Analog output
0–10V/0–20mA
Analog output
-10–10V/-20–20mA
Y1 open
RS485
communication
