5.2 RCU size and installation

5.2.1 Preparing

1. Required tools
Phillips screwdriver may be required during installation.
2. Fastening torque
Screws are used to install the RCU with fastening torque.

5.2.2 RCU size

5.2.3 RCU installation space

To make the RCU installation smooth, the distance between the upper and lower parts of the RCU and the
building and its components should be left as shown in the following figure, and the RCU must be installed
on a conductive metal plate, the entire conductive bottom of the RCU must properly work with the
installation surface.
202308 (V1.1)
Screw
M4

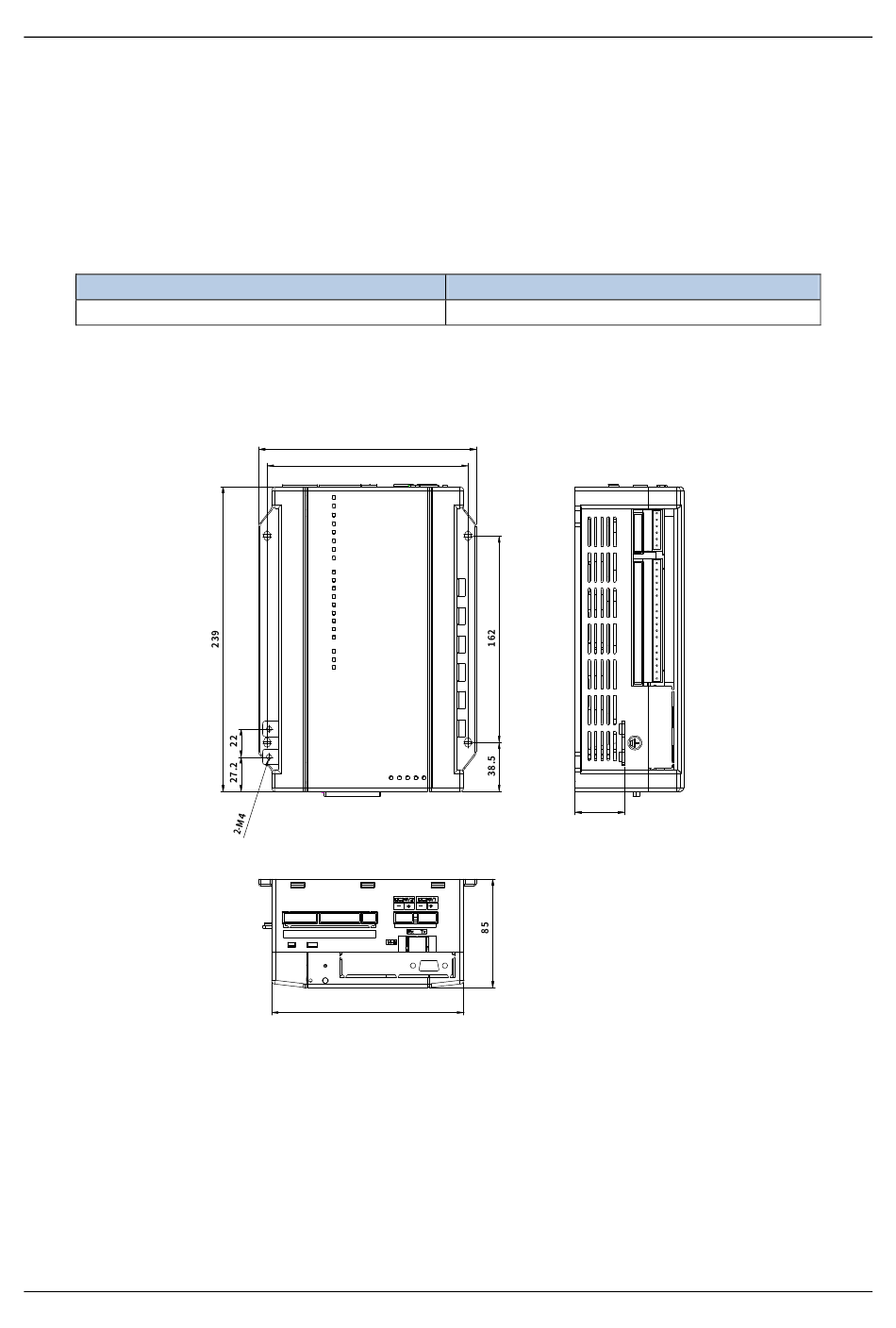

Figure 5-2 RCU dimensions (unit: mm)
170
157
150
Rectifier Control Unit (RCU)
Fastening torque
1.5N.M
38.8
43
