Goodrive800 Pro Series Regenerative Rectifier Hardware Manual

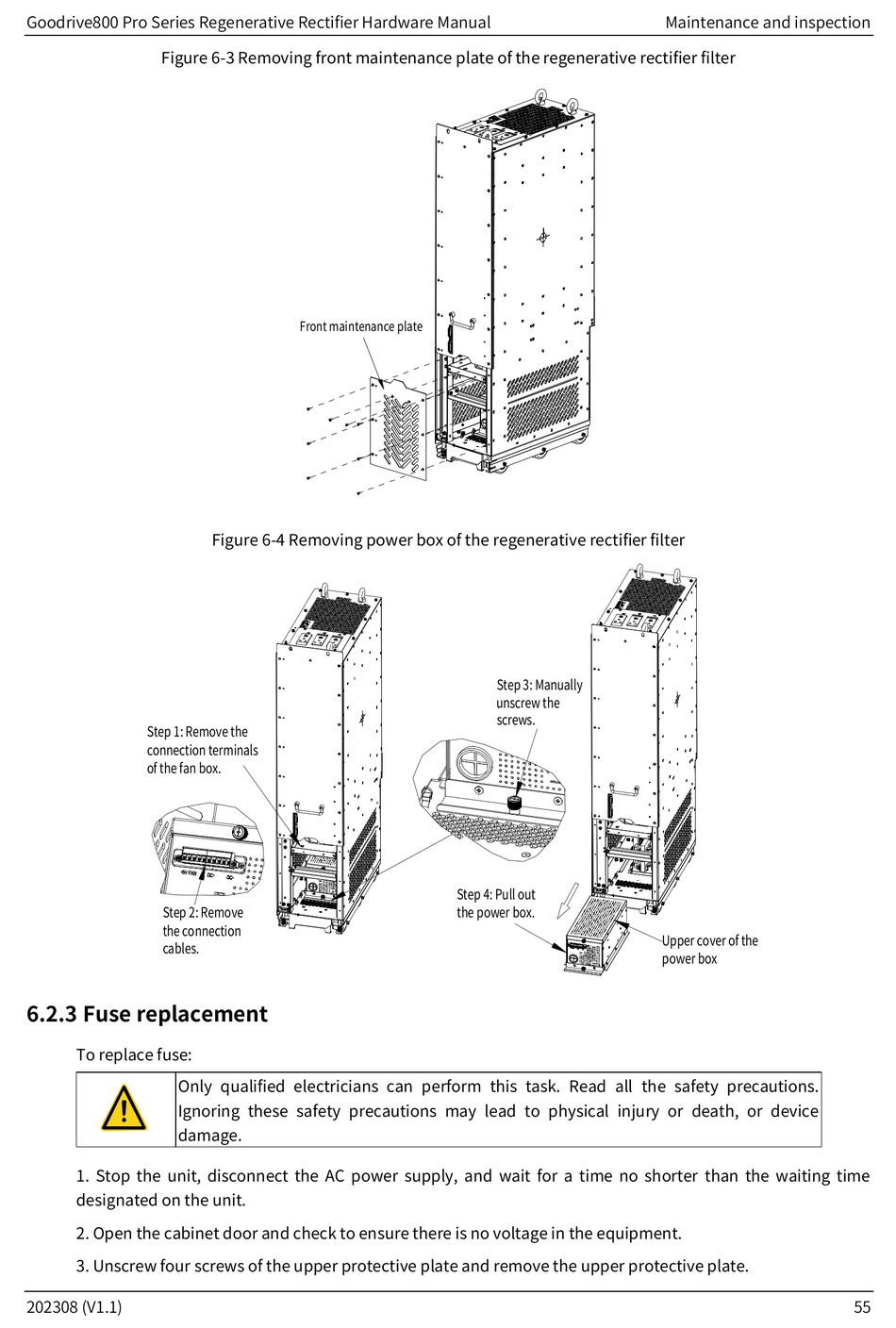

Figure 6-3 Removing front maintenance plate of the regenerative rectifier filter
Step 1: Remove the
connection terminals
of the fan box.
Step 2: Remove
the connection
cables.

6.2.3 Fuse replacement

To replace fuse:
Only qualified electricians can perform this task. Read all the safety precautions.

Ignoring these safety precautions may lead to physical injury or death, or device
damage.
1. Stop the unit, disconnect the AC power supply, and wait for a time no shorter than the waiting time
designated on the unit.
2. Open the cabinet door and check to ensure there is no voltage in the equipment.
3. Unscrew four screws of the upper protective plate and remove the upper protective plate.
202308 (V1.1)
Front maintenance plate
Figure 6-4 Removing power box of the regenerative rectifier filter
Step 3: Manually
unscrew the
screws.
Step 4: Pull out
the power box.
Maintenance and inspection
Upper cover of the
power box
55
