Figure 3-15 shows the 850mm-wide cabinet installation for L+2*A8.

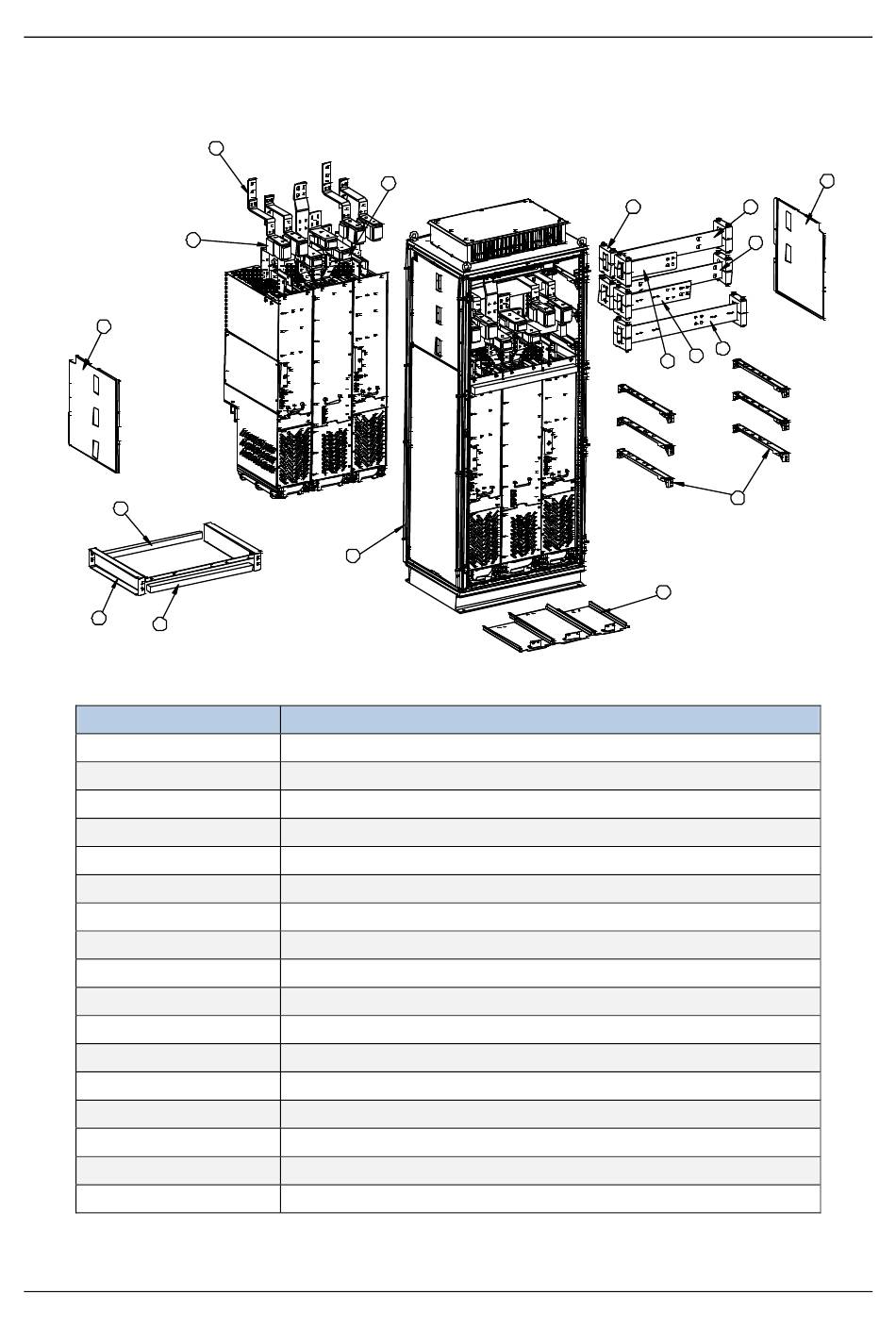

Figure 3-15 Installation diagram of L+2*A8 in an 850mm-wide cabinet
12
17
16
14
15
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Note: A 40X40 sealing sponge must be used at the position corresponding to the air baffle in the
front/back door panel, which prevents air duct reflow.
202308 (V1.1)
11
1
13
Name
Cabinet
Unit bottom fixed plate
Busbar clamp support
Busbar clamp
R-phase copper busbar
S-phase copper busbar
T-phase copper busbar
Copper busbar of (+)
Copper busbar of (-)
Right protective plate
Unit-top copper bar assembly
DC fuse
AC fuse
Unit-top fixing assembly
Front sealing sponge
Back sealing sponge
Left protective plate
