Goodrive800 Pro Series Regenerative Rectifier Hardware Manual
Appendix B Expansion card
B.1 External view

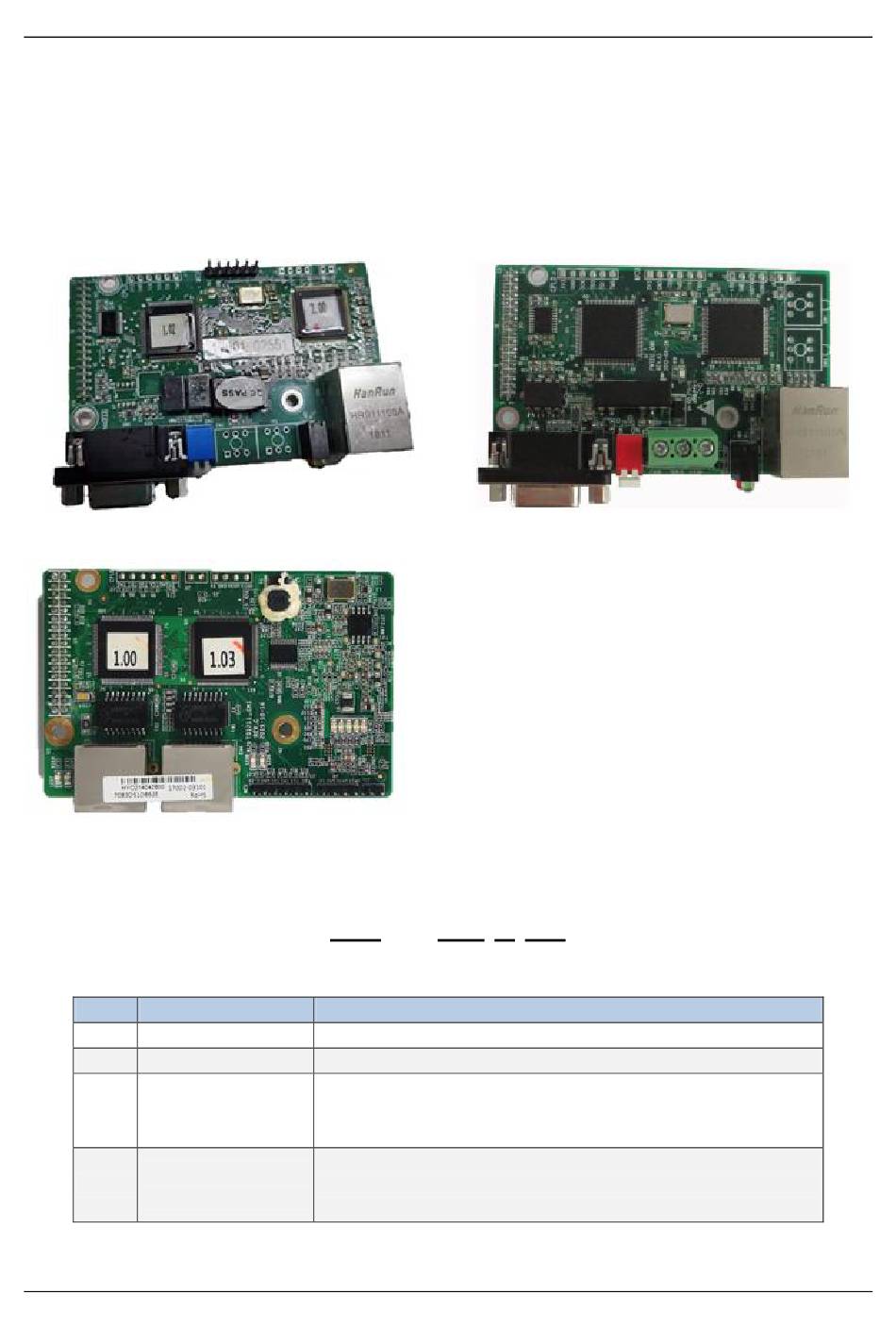

Figure B-1 Ethernet + PROFIBUS communication card
Figure B-3 Ethernet + PROFINET communication card
B.2 Naming rule
Symbol
①
Product category
②
Board card category TX: communication card
③
Technology version
Card type
④
identification
202308 (V1.1)
EC – TX 1 03
①
Name
EC: Expansion card
Indicates the generation of a technical version by using odd
numbers, for example, 1, 3, 5, and 7 indicate the 1st, 2nd, 3rd and 4th
generations of the technical version.
03: PROFIBUS+Ethernet communication card
05: CANopen+Ethernet communication card
09: PROFINET+Ethernet communication card
Figure B-2 Ethernet + CANopen communication card
②
③
④
Description
Expansion card
