(2) Push the regenerative rectifier unit into the cabinet slowly. See Figure 3-18.
Note:
Since the regenerative rectifier unit barycenter is too high, use the auxiliary rope for mounting to prevent

the unit from rollover during the push-in or push-out.
When pushing in/out the regenerative rectifier unit, use one foot to apply force to the bottom of the unit

while holding the handle to prevent the unit from tipping over, falling over, hitting or injury. See Figure
3-18.
When installing or replacing the unit, wear gloves and safety shoes to prevent against scratching or

smashing.
(3) Ensure that the unit is pushed into place. See Figure 3-19.
202308 (V1.1)

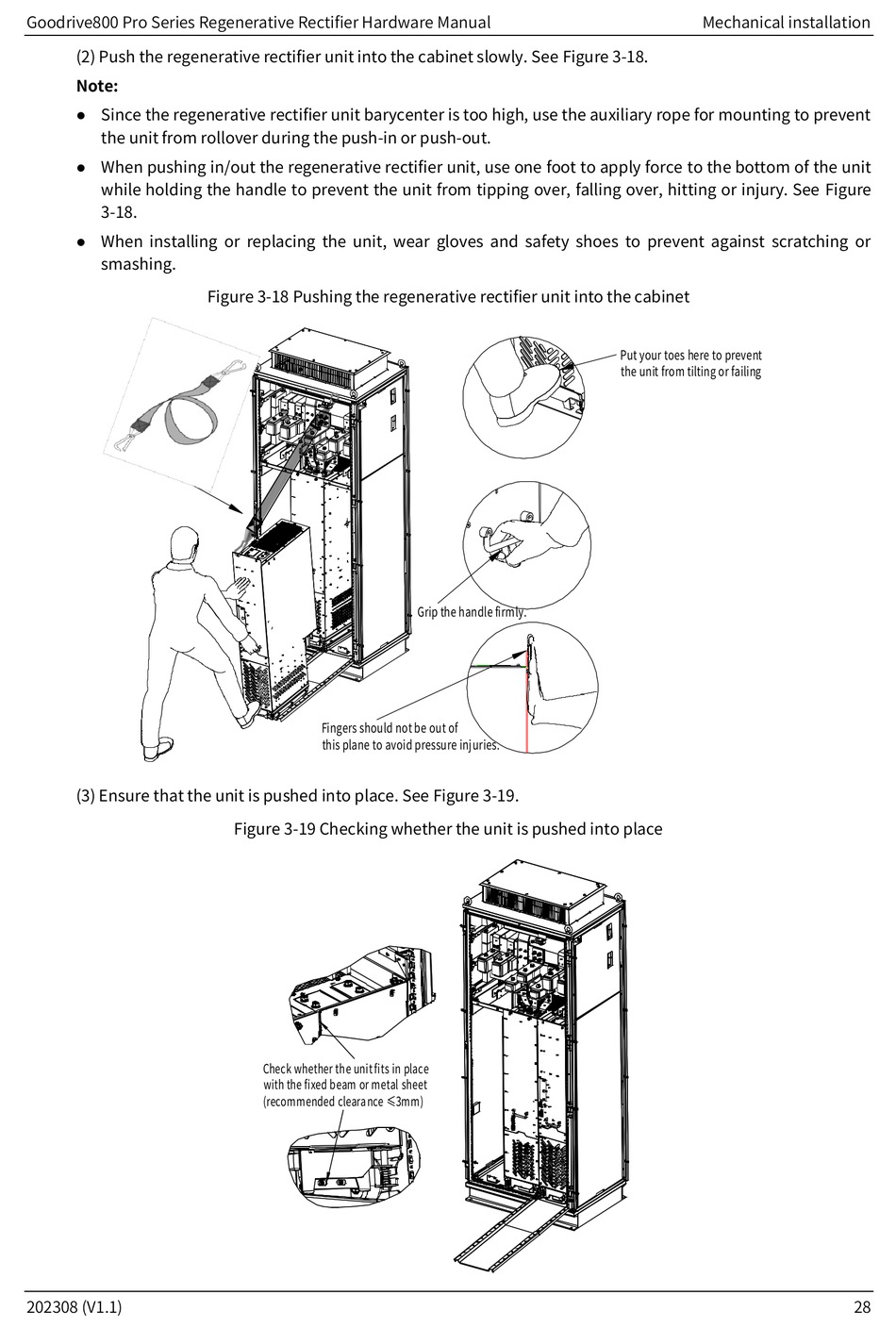

Figure 3-18 Pushing the regenerative rectifier unit into the cabinet
Fingers should not be out of
this plane to avoid pressure injuries.
Figure 3-19 Checking whether the unit is pushed into place
Check whether the unit fits in place
with the fixed beam or metal sheet
(recommended clearance ≤3mm)
Grip the handle firmly.
Mechanical installation
Put your toes here to prevent
the unit from tilting or failing
