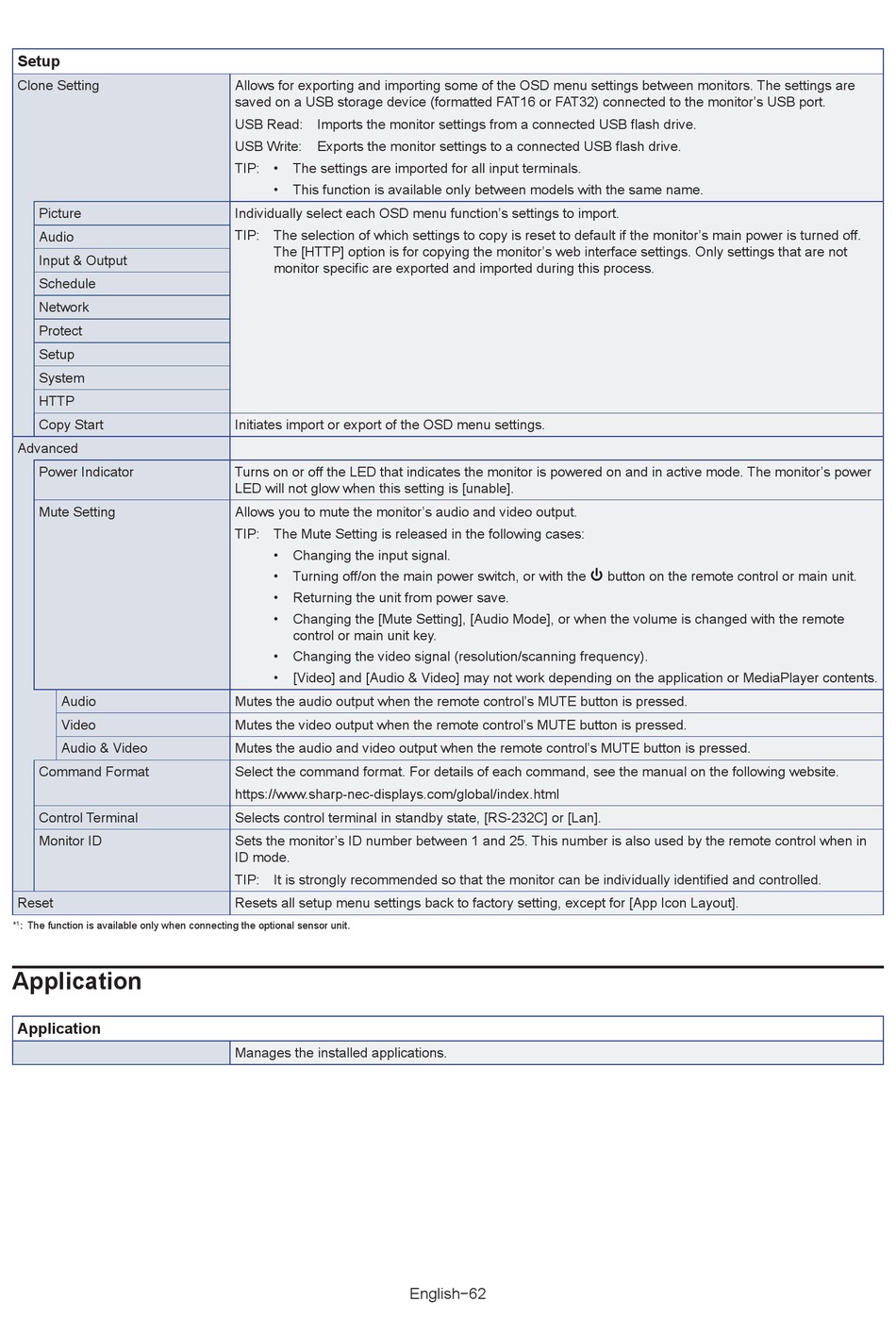

Setup
Clone Setting
Audio
Input & Output
Schedule
Network
Protect
Setup
System
HTTP
Copy Start
Advanced
Power Indicator
Mute Setting
Audio
Video
Audio & Video
Command Format
Control Terminal
Monitor ID
Reset
* : The function is available only when connecting the optional sensor unit.
1

Application

Application
Allows for exporting and importing some of the OSD menu settings between monitors. The settings are
saved on a USB storage device (formatted FAT16 or FAT32) connected to the monitor's USB port.
USB Read: Imports the monitor settings from a connected USB flash drive.
USB Write: Exports the monitor settings to a connected USB flash drive.
TIP:
• The settings are imported for all input terminals.

• This function is available only between models with the same name.
Individually select each OSD menu function's settings to import.
TIP:
The selection of which settings to copy is reset to default if the monitor's main power is turned off.
The [HTTP] option is for copying the monitor's web interface settings. Only settings that are not
monitor specific are exported and imported during this process.
Initiates import or export of the OSD menu settings.
Turns on or off the LED that indicates the monitor is powered on and in active mode. The monitor's power
LED will not glow when this setting is [unable].
Allows you to mute the monitor's audio and video output.

TIP: The Mute Setting is released in the following cases:

• Changing the input signal.

• Turning off/on the main power switch, or with the ⏻ button on the remote control or main unit.

• Returning the unit from power save.

• Changing the [Mute Setting], [Audio Mode], or when the volume is changed with the remote
control or main unit key.

• Changing the video signal (resolution/scanning frequency).

• [Video] and [Audio & Video] may not work depending on the application or MediaPlayer contents.
Mutes the audio output when the remote control's MUTE button is pressed.
Mutes the video output when the remote control's MUTE button is pressed.
Mutes the audio and video output when the remote control's MUTE button is pressed.
Select the command format. For details of each command, see the manual on the following website.
https://www.sharp-nec-displays.com/global/index.html
Selects control terminal in standby state, [RS-232C] or [Lan].
Sets the monitor's ID number between 1 and 25. This number is also used by the remote control when in
ID mode.
TIP:
It is strongly recommended so that the monitor can be individually identified and controlled.
Resets all setup menu settings back to factory setting, except for [App Icon Layout].
Manages the installed applications.
English−62
