External Control; Controlling The Monitor Via Rs-232C - Sharp MultiSync ME652 User Manual

Connecting an external device
There are two options to connect an external device to control the monitor.
• RS-232C terminal.
Connecting an external device to the RS-232C terminal of the monitor with an RS-232C cable.
• LAN port.
Connecting a network to the LAN port of the monitor with a LAN cable (RJ-45 category 5 or higher).

Controlling the Monitor via RS-232C

This monitor can be controlled by connecting a personal computer with an RS-232C (reverse type) terminal.
For example, some of the functions that can be controlled by a personal computer are:
• Power ON or standby.
• Switching between input signals.
• Sound Mute ON or OFF.
Connection

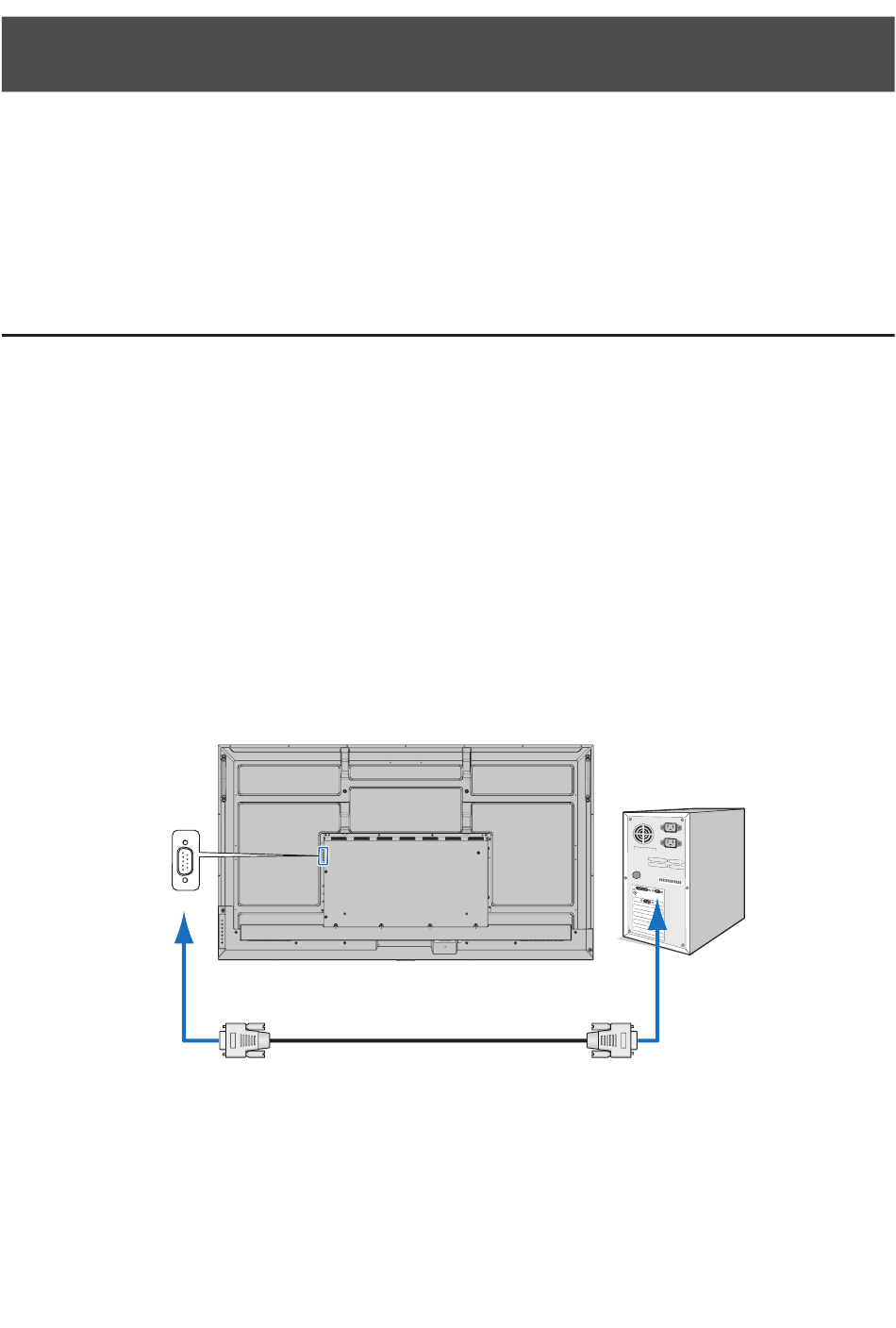

Monitor + computer.
• Please turn off the monitor's main power before connecting a computer to the monitor.
• Please turn on the connected computer first then turn on the monitor's main power.
If you turn on the computer and monitor in reverse order, the com port may not work.
To control the monitor via commands sent from a computer connected with an RS-232C cable, please use the control
command. Instructions for the control command can be found in the "External_Control.pdf". See
RS-232C
TIP:
• If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required.
Contact your supplier for details.

• For the pin assignment, please see "RS-232C input/output" on
This monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not included) should be used for RS-232C control.

External Control

RS-232C Cable
English−42
Computer
page 43.
page 52.
