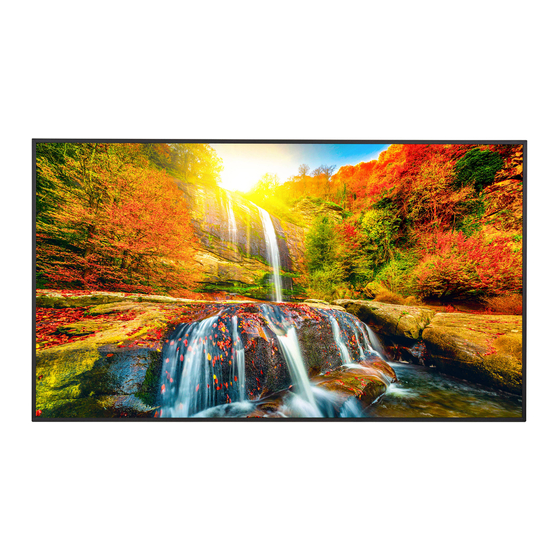

Sharp PN-ME432 Firmware Update Procedure
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Monitor
  5. MultiSync PN-ME432
  6. Firmware update procedure
Sharp PN-ME432 Firmware Update Procedure

Sharp PN-ME432 Firmware Update Procedure

Firmware update by http server
Hide thumbs Also See for PN-ME432:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Firmware Update Procedure
by HTTP Server
Rev.1.3

Advertisement

loading

Related Manuals for Sharp PN-ME432

Summary of Contents for Sharp PN-ME432

  • Page 1 Firmware Update Procedure by HTTP Server Rev.1.3...
  • Page 2 ◼ Precautions  Target models: PN-ME432/PN-ME502/PN-ME552/PN-ME652  Do not turn off the main power to the monitor or remove the LAN cable during firmware update.  For details on making a connection to the monitor from a computer through a network, using the HTTP server function of the monitor, read "LAN Control"...
  • Page 3 Preparations for the Firmware Update Get a firmware from FIRMWARE download page. Download a firmware ZIP file from FIRMWARE download page. Then unzip the ZIP file.  A file name of the firmware ZIP file is listed as below. Category File name Extension ZIP file...

  • Page 4: Updating Firmware

    Updating Firmware Start the Web browser on the computer to access the home screen of the monitor. The URL of the home screen of the monitor is "http://<IP address of the monitor>/home". Click "UPDATE FIRMWARE" on the menu on the left side of the screen.
  • Page 5 Click the [Select A File] button. When you click on the [Select A File] button, a file select screen will appear by file explorer.
  • Page 6 Select the firmware image file to be updated and then click the [Open] button. Select the firmware image file then uploading will start. When uploading completed, “Upload Status” will be “Success” and a message “Firmware update is ready. Press “UPDATE” will be shown. ...
  • Page 7 Click the [UPDATE] button. When you click on the [UPDATE] button, updating will start. The firmware update will start and LED will blink in green during the update. Note Do not turn off the main power to the monitor or remove the LAN cable during firmware update.
  • Page 8 Check the Firmware Update result Confirm the the firmware version in the home screen is the version you have updated.
  • Page 9 When the monitor does not operate with power on When the monitor does not operate with power on, please contact your dealer.

This manual is also suitable for:

Pn-me502Pn-me552Pn-me652
