Connecting Multiple Monitors
[Setup] - [Tile Matrix] – allows one image to be expanded and shown over multiple screens (up to 25) through a distribution
amplifier.
•
[H Monitors] - Number of monitors arranged horizontally.
•
[V Monitors] - Number of monitors arranged vertically.
•
[Position] - Sets the section of the tiled image to view on the current monitor.
•
[Tile Comp] - Scales the image to compensate for the width of the screen bezel in order to create a seamless image.

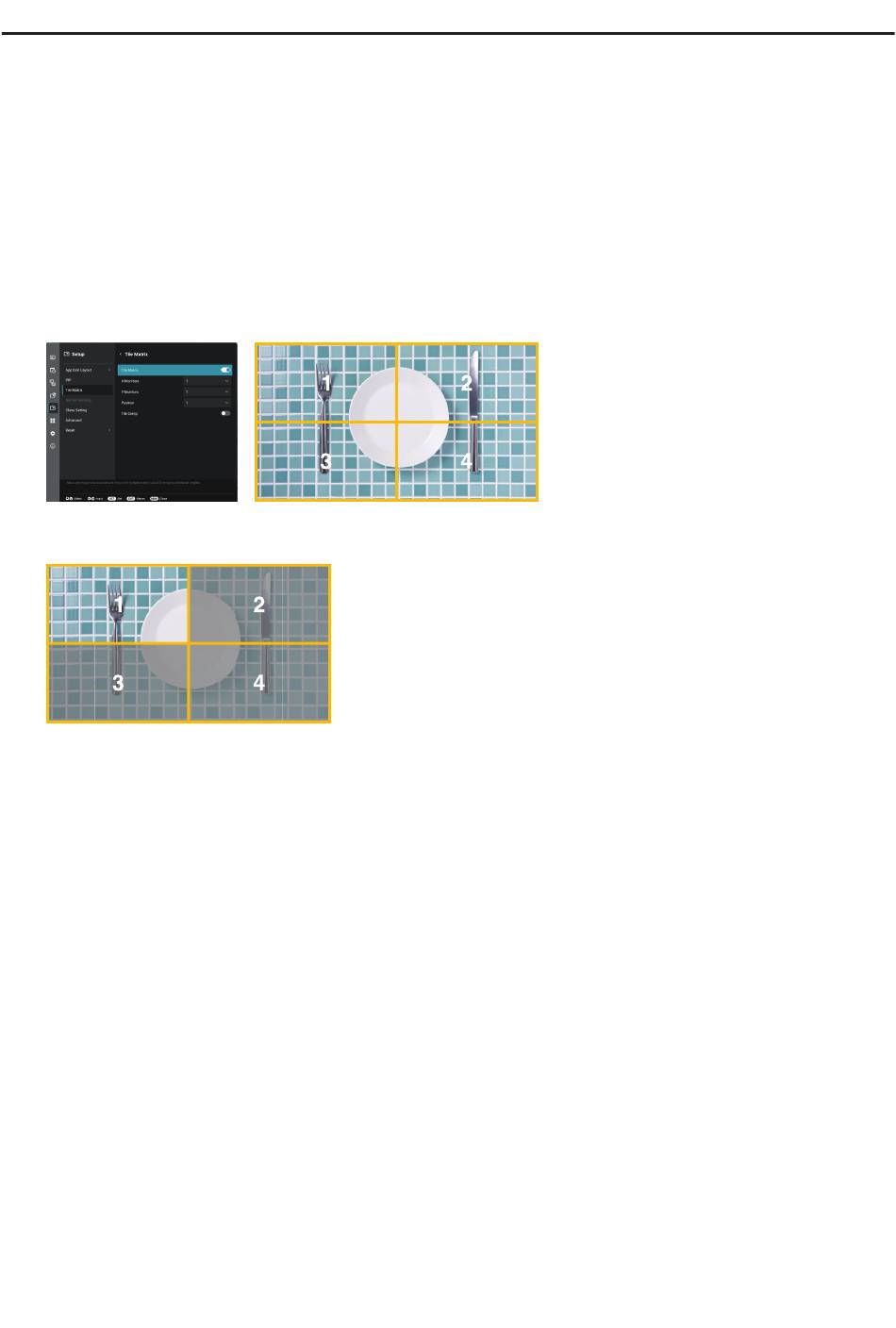

Example of Tile Matrix 2x2
For the monitor on top:
1. Set H Monitors [2] and V Monitors [2].
One image will be divided by 4 then put number from 1 to 4.
OSD
2. Select 1 to 4 at [Position].
e.g. Selecting 1
Monitor screen
English−41
