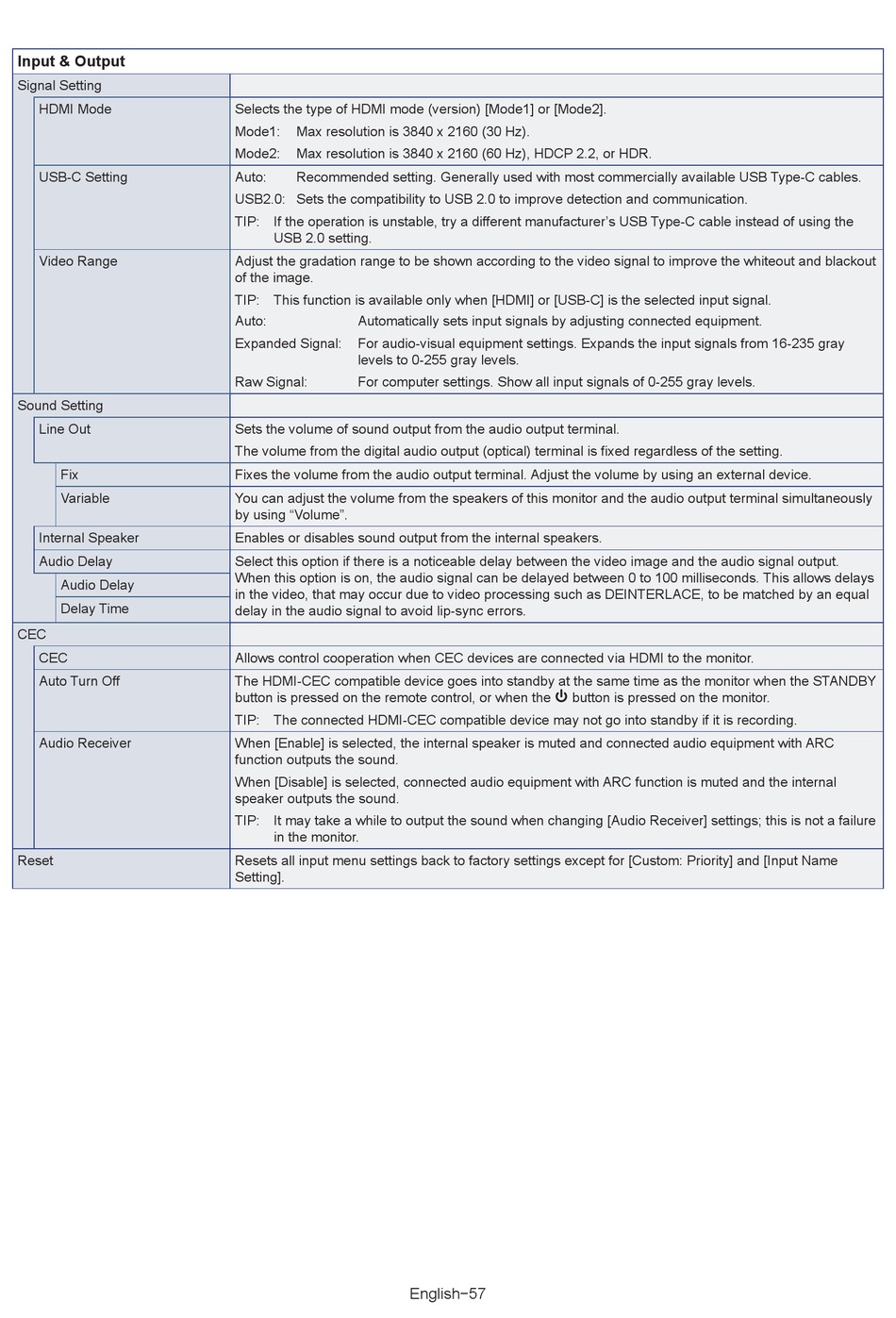

Sharp MultiSync ME652 User Manual page 57

Input & Output
Signal Setting
HDMI Mode
USB-C Setting
Video Range
Sound Setting
Line Out
Fix
Variable
Internal Speaker
Audio Delay
Audio Delay
Delay Time
CEC
CEC
Auto Turn Off
Audio Receiver
Reset
Selects the type of HDMI mode (version) [Mode1] or [Mode2].
Mode1: Max resolution is 3840 x 2160 (30 Hz).
Mode2: Max resolution is 3840 x 2160 (60 Hz), HDCP 2.2, or HDR.
Auto: Recommended setting. Generally used with most commercially available USB Type-C cables.
USB2.0: Sets the compatibility to USB 2.0 to improve detection and communication.

TIP: If the operation is unstable, try a different manufacturer's USB Type-C cable instead of using the
USB 2.0 setting.
Adjust the gradation range to be shown according to the video signal to improve the whiteout and blackout
of the image.

TIP: This function is available only when [HDMI] or [USB-C] is the selected input signal.
Auto: Automatically sets input signals by adjusting connected equipment.
Expanded Signal: For audio-visual equipment settings. Expands the input signals from 16-235 gray
levels to 0-255 gray levels.
Raw Signal: For computer settings. Show all input signals of 0-255 gray levels.
Sets the volume of sound output from the audio output terminal.
The volume from the digital audio output (optical) terminal is fixed regardless of the setting.
Fixes the volume from the audio output terminal. Adjust the volume by using an external device.
You can adjust the volume from the speakers of this monitor and the audio output terminal simultaneously
by using "Volume".
Enables or disables sound output from the internal speakers.
Select this option if there is a noticeable delay between the video image and the audio signal output.
When this option is on, the audio signal can be delayed between 0 to 100 milliseconds. This allows delays
in the video, that may occur due to video processing such as DEINTERLACE, to be matched by an equal
delay in the audio signal to avoid lip-sync errors.
Allows control cooperation when CEC devices are connected via HDMI to the monitor.
The HDMI-CEC compatible device goes into standby at the same time as the monitor when the STANDBY
button is pressed on the remote control, or when the ⏻ button is pressed on the monitor.

TIP: The connected HDMI-CEC compatible device may not go into standby if it is recording.
When [Enable] is selected, the internal speaker is muted and connected audio equipment with ARC
function outputs the sound.
When [Disable] is selected, connected audio equipment with ARC function is muted and the internal
speaker outputs the sound.
TIP:
It may take a while to output the sound when changing [Audio Receiver] settings; this is not a failure
in the monitor.
Resets all input menu settings back to factory settings except for [Custom: Priority] and [Input Name
Setting].
English−57
