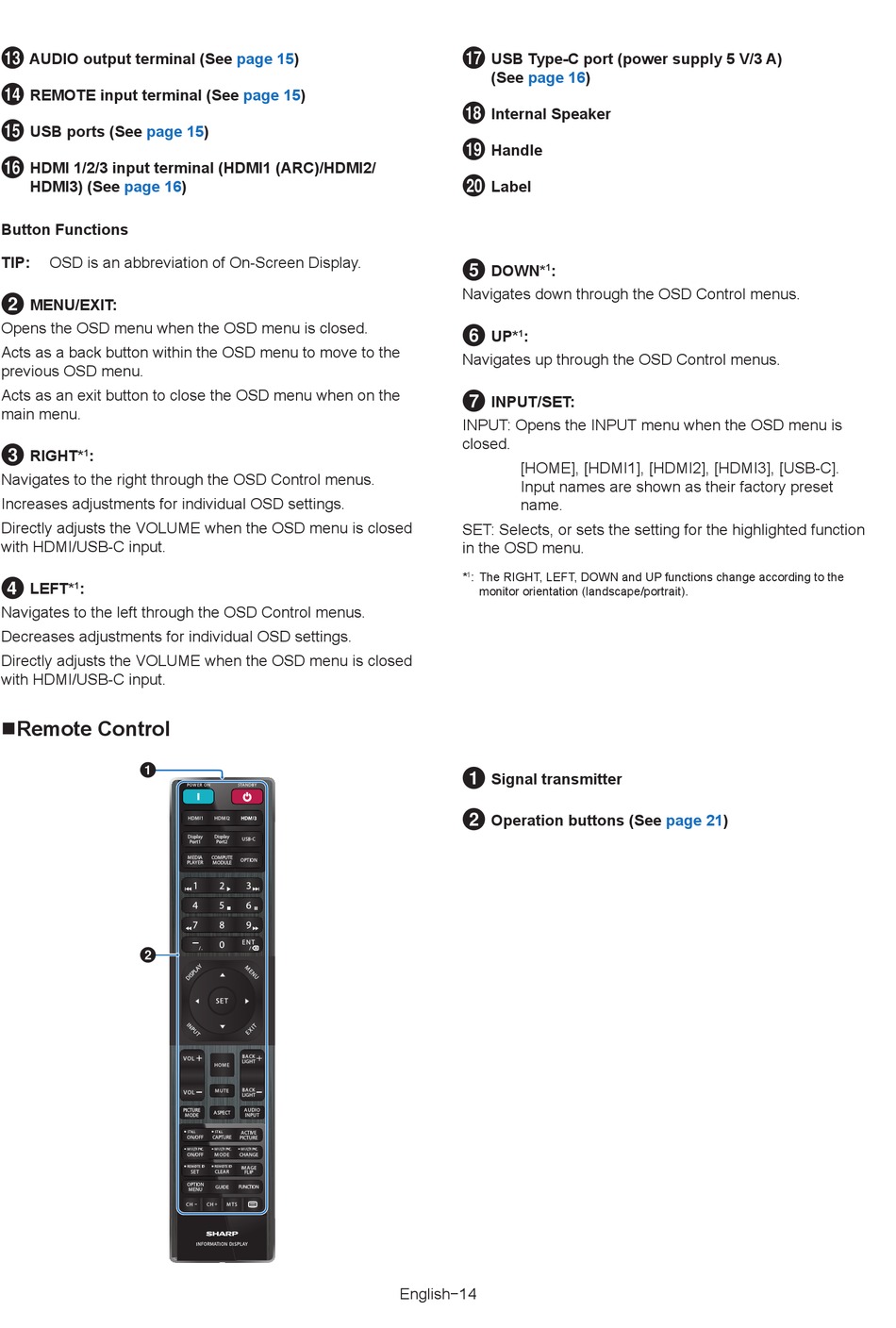

Sharp MultiSync ME652 User Manual page 14

#
AUDIO output terminal (See
$
REMOTE input terminal (See
%
USB ports (See page
^
HDMI 1/2/3 input terminal (HDMI1 (ARC)/HDMI2/
HDMI3) (See page 16)
Button Functions
TIP:

OSD is an abbreviation of On-Screen Display.
2
MENU/EXIT:
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
3
RIGHT* :
1
Navigates to the right through the OSD Control menus.
Increases adjustments for individual OSD settings.
Directly adjusts the VOLUME when the OSD menu is closed
with HDMI/USB-C input.
4
LEFT* :
1
Navigates to the left through the OSD Control menus.
Decreases adjustments for individual OSD settings.
Directly adjusts the VOLUME when the OSD menu is closed
with HDMI/USB-C input.
nRemote Control
1
2
page 15)
page 15)
15)
&
USB Type-C port (power supply 5 V/3 A)
(See page
*
Internal Speaker
(
Handle
)
Label
5
DOWN* :
1
Navigates down through the OSD Control menus.
6
UP* :
1
Navigates up through the OSD Control menus.
7
INPUT/SET:
INPUT: Opens the INPUT menu when the OSD menu is
closed.
[HOME], [HDMI1], [HDMI2], [HDMI3], [USB-C].
Input names are shown as their factory preset
name.
SET: Selects, or sets the setting for the highlighted function
in the OSD menu.
* : The RIGHT, LEFT, DOWN and UP functions change according to the
1
monitor orientation (landscape/portrait).
1
Signal transmitter
2
Operation buttons (See
English−14
16)
page 21)
