Model 108 FLEX-AUGER® Feed Delivery System
6.Support the Power Unit and Control Unit securely. Points are provided at the gear head and the tube anchor for
suspending the equipment with chain and "S" hooks supplied with the delivery system. See Figure 14.
Note: Other ways of supporting the delivery system can be used where it is practical, as long as the
supports do not let the equipment sag or do not make flat spots in the auger tubes.
Note: The motor should be fastened to keep it from twisting. "S" hooks and chain can be attached to the
motor base to prevent the motor from shifting.
7.Install the driver assembly on the power unit shaft. Start the socket head screws but leave the anchor clamp
loose enough to slip in the auger.
8.Replace the plastic shipping plug in the gear head with the vent plug provided.
Note: Other ways of supporting the delivery system can be used where it is practical, as long as the supports
do not allow the equipment sag or do not make flat spots in the auger tubes.
Note: Unit must be protected from the elements. Unit as installed is not protected from direct rain or snow.

Belt Drive Control Unit Installation

The Belt Drive Control Unit installation is much the same as the direct drive unit. Mount the Belt Drive Adapter
and Motor to the control unit, then proceed with installation to the auger tube as described in this manual. See
"Belt Drive Control Unit (Part No. 46138-2)" on page 38 for an assembly guide for the Belt Drive Control
Unit.
MA1714C
Figure 15.Belt Drive Control Unit. (Belt Guard not installed)
K e y D e s c r i p t i o n
1 R e p l a c e t h e p l a s t i c s h i p p i n g
p lu g w i t h v e n t p l u g .
2 C h a in
3 " S " H o o k

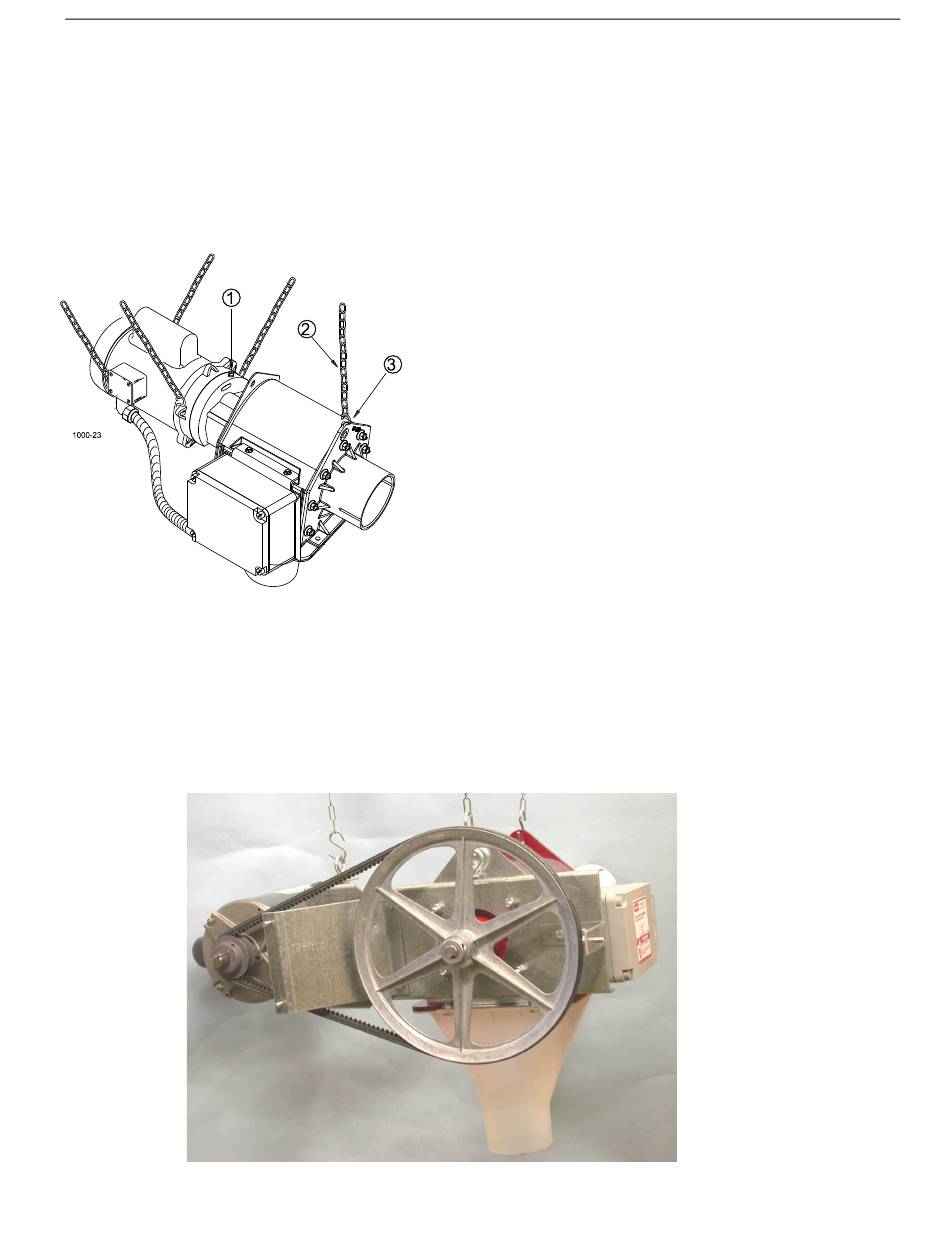

Figure 14.Control Unit/Power Unit Suspension
Installation
23
