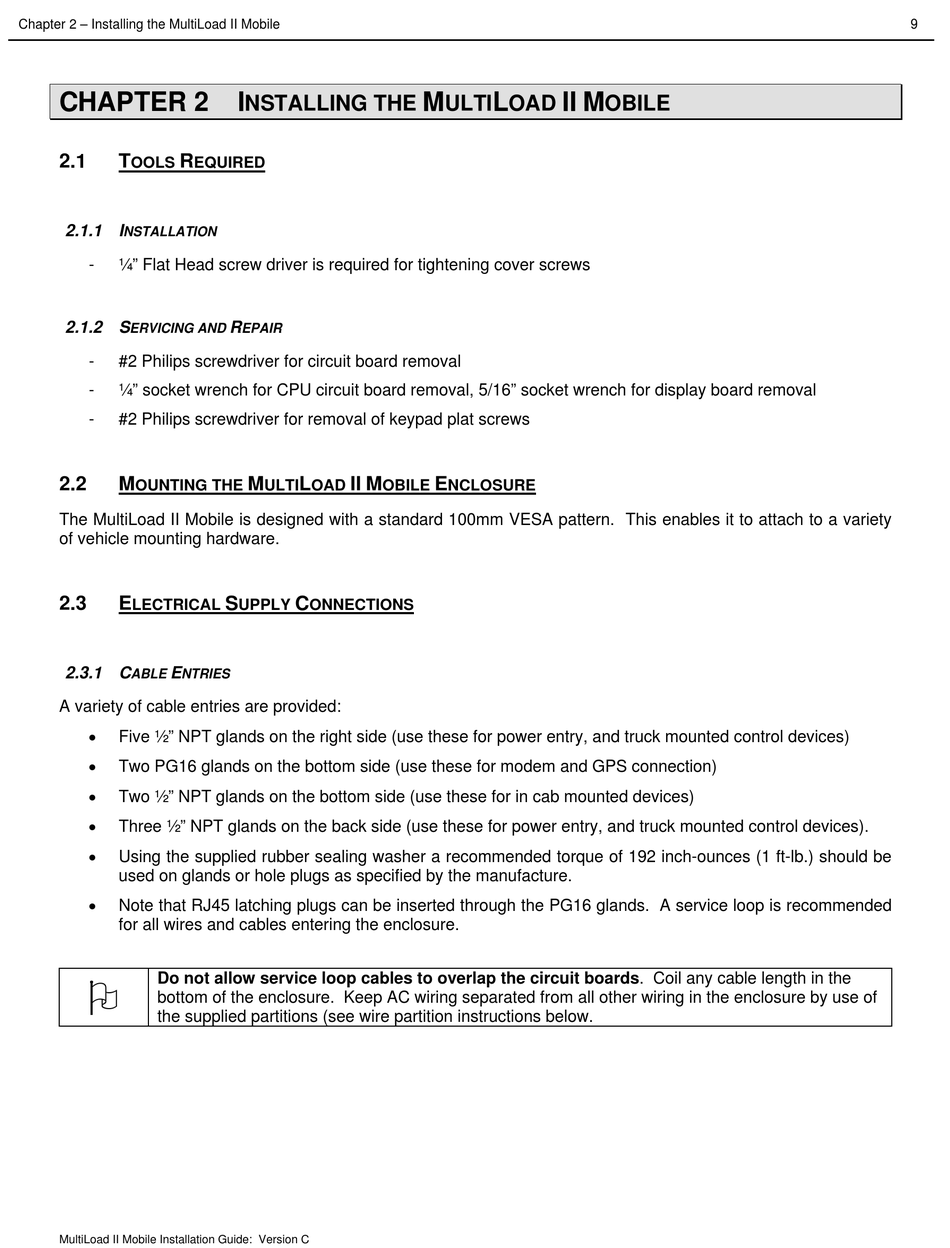

Chapter 2 – Installing the MultiLoad II Mobile
CHAPTER 2
2.1 T R
OOLS EQUIRED
2.1.1 I
NSTALLATION
- ¼" Flat Head screw driver is required for tightening cover screws
2.1.2 S
ERVICING AND
- #2 Philips screwdriver for circuit board removal
- ¼" socket wrench for CPU circuit board removal, 5/16" socket wrench for display board removal
- #2 Philips screwdriver for removal of keypad plat screws
2.2 M
OUNTING THE
The MultiLoad II Mobile is designed with a standard 100mm VESA pattern. This enables it to attach to a variety
of vehicle mounting hardware.
2.3 E
LECTRICAL
2.3.1 C E
ABLE NTRIES
A variety of cable entries are provided:

Five ½" NPT glands on the right side (use these for power entry, and truck mounted control devices)

Two PG16 glands on the bottom side (use these for modem and GPS connection)

Two ½" NPT glands on the bottom side (use these for in cab mounted devices)

Three ½" NPT glands on the back side (use these for power entry, and truck mounted control devices).

Using the supplied rubber sealing washer a recommended torque of 192 inch-ounces (1 ft-lb.) should be
used on glands or hole plugs as specified by the manufacture.

Note that RJ45 latching plugs can be inserted through the PG16 glands. A service loop is recommended
for all wires and cables entering the enclosure.
Do not allow service loop cables to overlap the circuit boards. Coil any cable length in the

bottom of the enclosure. Keep AC wiring separated from all other wiring in the enclosure by use of
the supplied partitions (see wire partition instructions below.
MultiLoad II Mobile Installation Guide: Version C
I
NSTALLING THE
R
EPAIR
M L II M
ULTI OAD OBILE
S C
UPPLY ONNECTIONS
M L II M
ULTI OAD
E
NCLOSURE
OBILE
9
