Chapter 7 – Troubleshooting
7.1.1 O
PERATING THE
Removal:
1. To remove the Display Cable rotate the cam to the open (up) position. (See Figure 6.1.)
2. Gently pull the cable straight out free of the connector.
Installation:
1. To install the display cable make sure the cam is in the open (up) position.
2. Gently insert the cable with the dark insulated side towards the cam. (See Figure 6.2.) When inserting
the cable make sure that it is not tilted to one side or the other and that the bottom of the cable is
completely seating in the connector.
3. Rotate the cam to the closed (down) position to lock in place. (See Figure 6.3.)
MultiLoad II Mobile Installation Guide: Version C
F
D
C
C
LAT
ISPLAY
ABLE
ONNECTORS

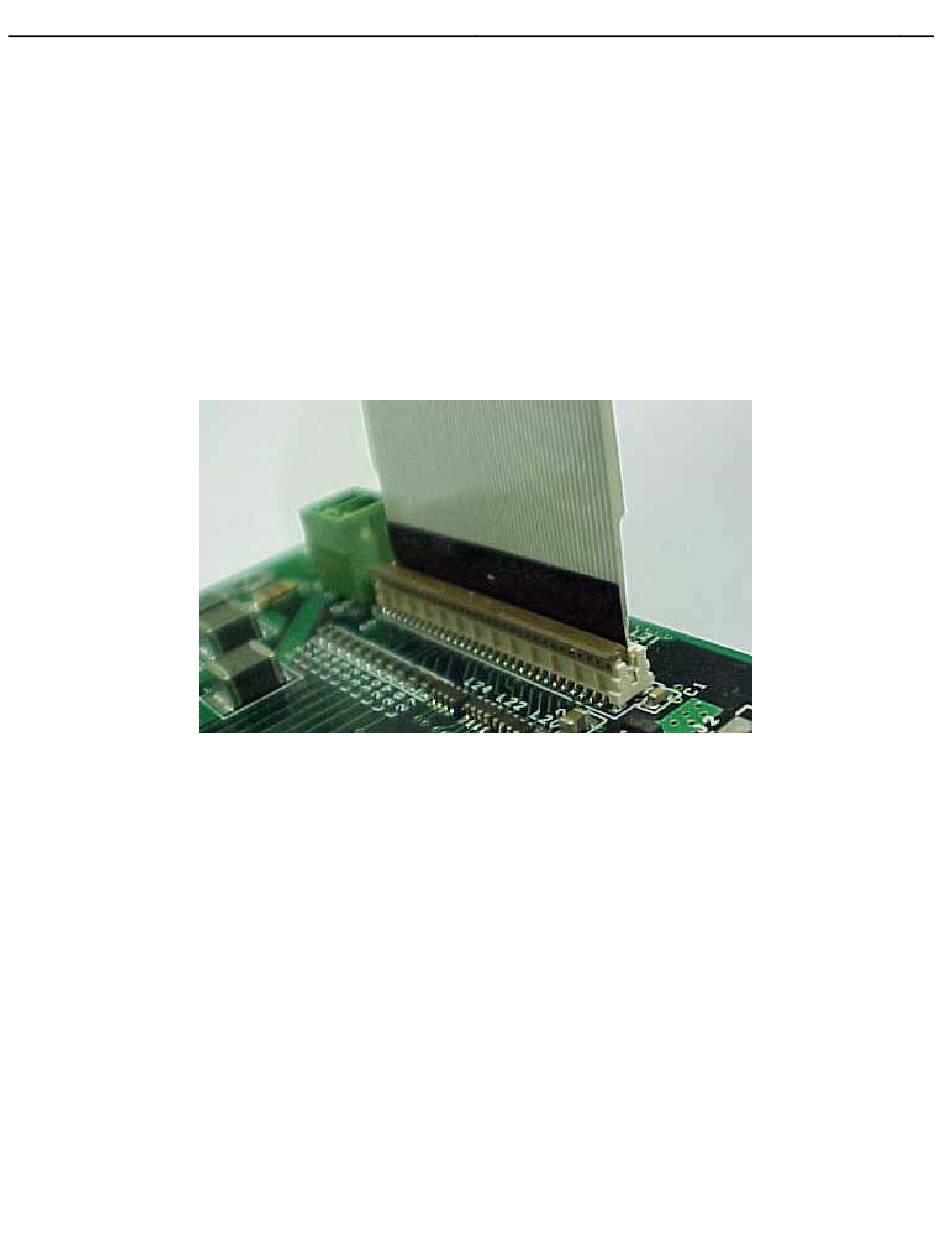

Figure 7-1
Cam lock in the Open (Up) position
:
