Chapter 3 – Data Communications Interface
3.1.3 E
THERNET

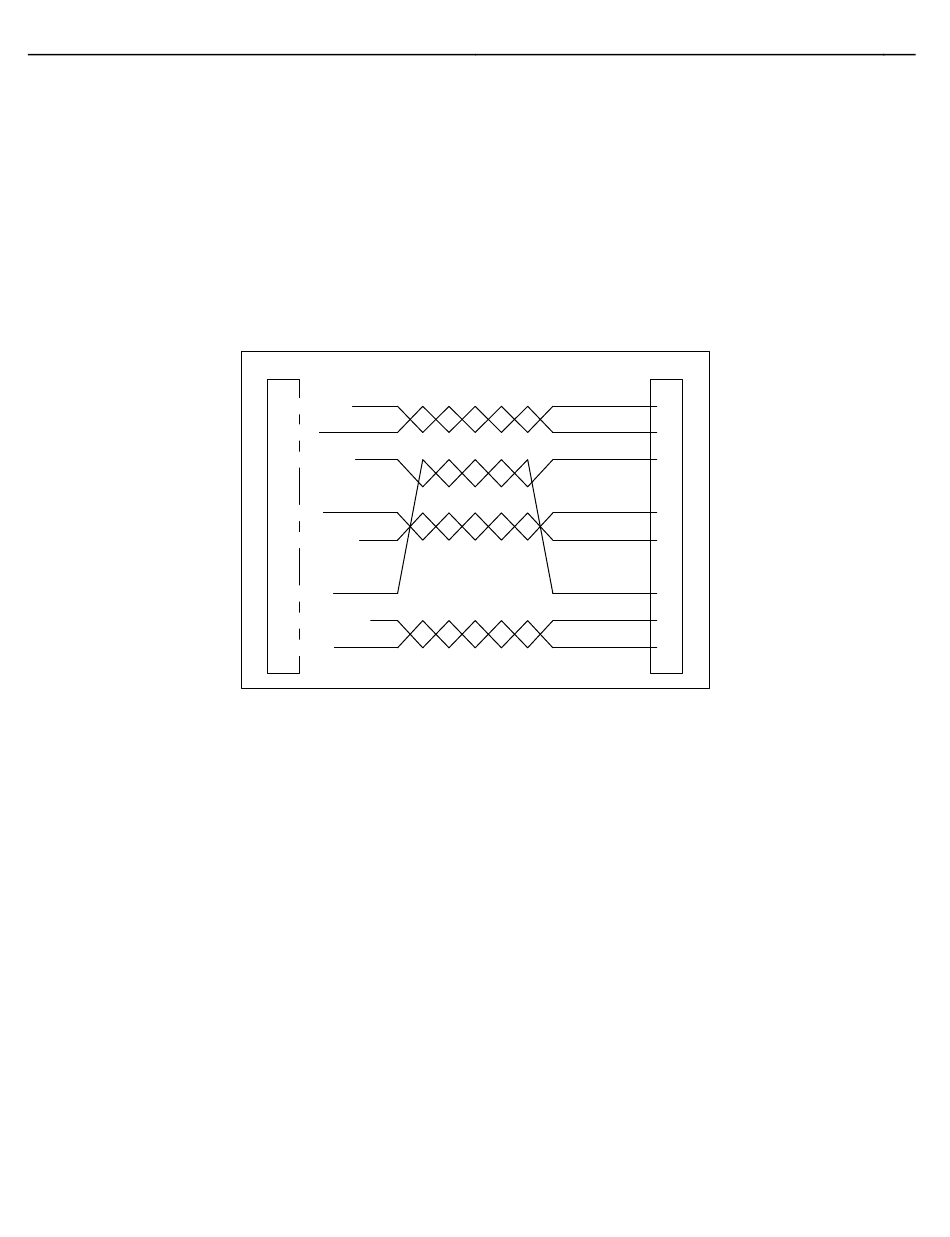

Figure 3.9 illustrates the required connections for Ethernet.
The Ethernet controller on revision 2.0 CPU boards uses HP Auto-MDIX technology. By automatically detecting
the signaling on the connected device, the transceiver will configure the port settings automatically. Thus, the
choice of a straight through or cross over cable no longer has to be made—either will work.
MultiLoad II Mobile Installation Guide: Version C
Ethernet wiring standard T568B - Cat5 cable (or greater).
Twisted Pairs
1 White/org
2 Org
3 White/Grn
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
Figure 3.9
8 - DCD
Ethernet Connections
1
2
3
4
5
6
7
8
17
