Chapter 4 – I/O Configuration
RTD.
Analog Input
Analog Output
12Vdc, 2W supply
Available for pulsers
6 DC Inputs:
5-30Vdc
MultiLoad II Mobile Installation Guide: Version C

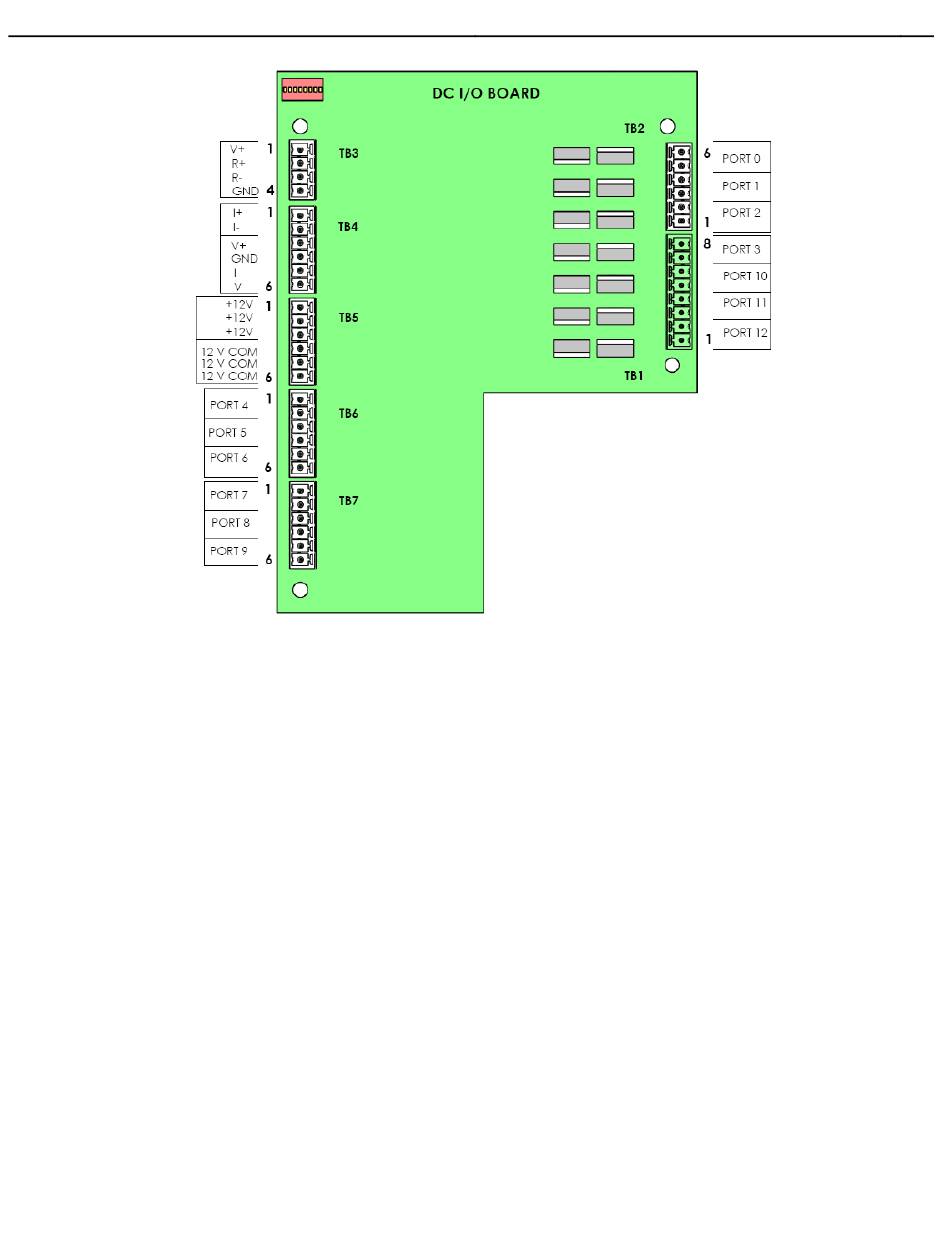

Figure 4.1
I/O Board Terminal Block Assignments
19
7 DC Outputs
0 – 30Vdc
0.6A
No orientation on pins.
