Chapter 3 – Data Communications Interface
Host/TMS Communications (COM 1 - RS-232)
The Host/TMS Computer System can be connected to the MultiLoad II/ RCU II via RS232 on COM 1.
The TX and RX are swapped at the Host/TMS.
MultiLoad II/ RCU II has the ability to multi-drop onto a RS232 line.
Host/TMS
RS232
TX
RX
GND
MultiLoad II Mobile Installation Guide: Version C
Host/TMS
RS232
TX
RX
GND

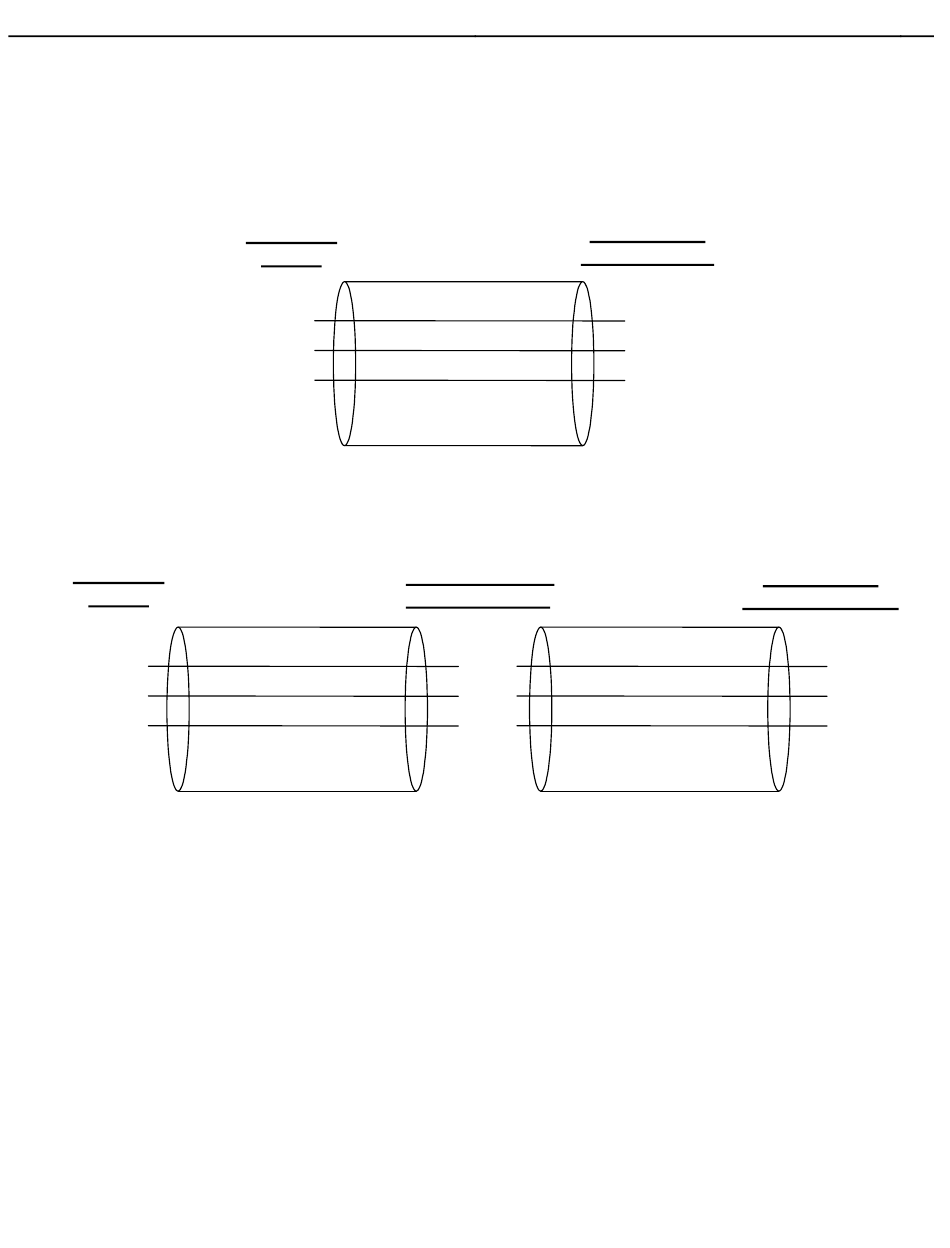

Figure 3.5
RS232, Host to a Single MultiLoad II/ RCU II
MultiLoad
RCU II #1 COM
Figure 3.6
RS232, Host to Multiple MultiLoad II/ RCU IIs
MultiLoad II/
RCU II COM 1
RX
TX
GND
II/
RX
TX
GND
15
MultiLoad II/
RCU II #n COM 1
RX
TX
GND
