Chapter 2 – Installing the MultiLoad II Mobile
10
2.3.2 A
.
TTACHING VEHICLE POWER
Connect red and black wire pairs to the left and center pins of TB1 respectively. This terminal block is located on
the power supply board shown. Connection of the red wire to the accessory voltage is recommended over wiring
to the battery in order to prevent battery drain while the vehicle is not running.
The required power is 9 -30Vdc, 1.2A.

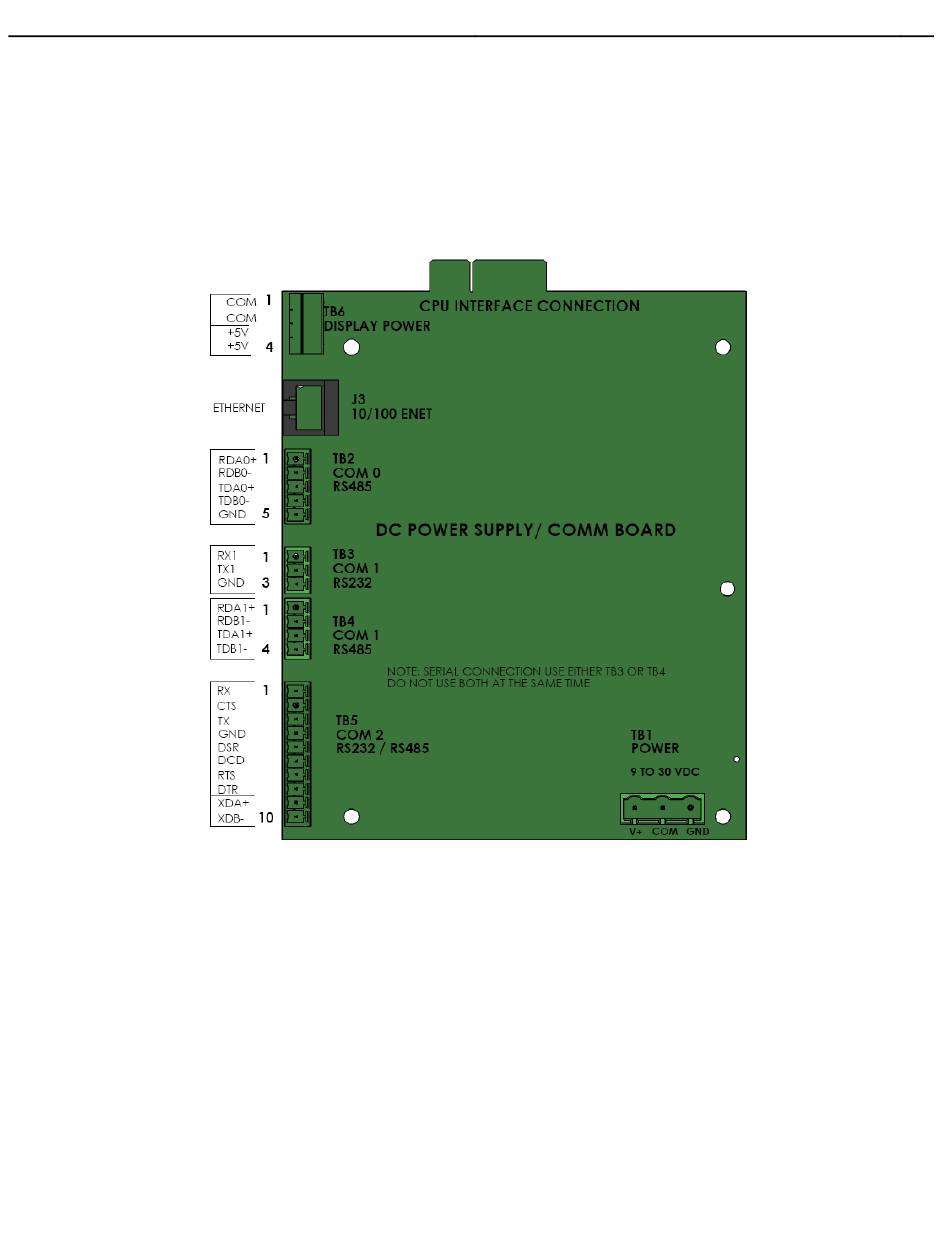

Figure 2.1
MultiLoad II Mobile DC Power Supply/Comm Board
MultiLoad II Mobile Installation Guide: Version C
