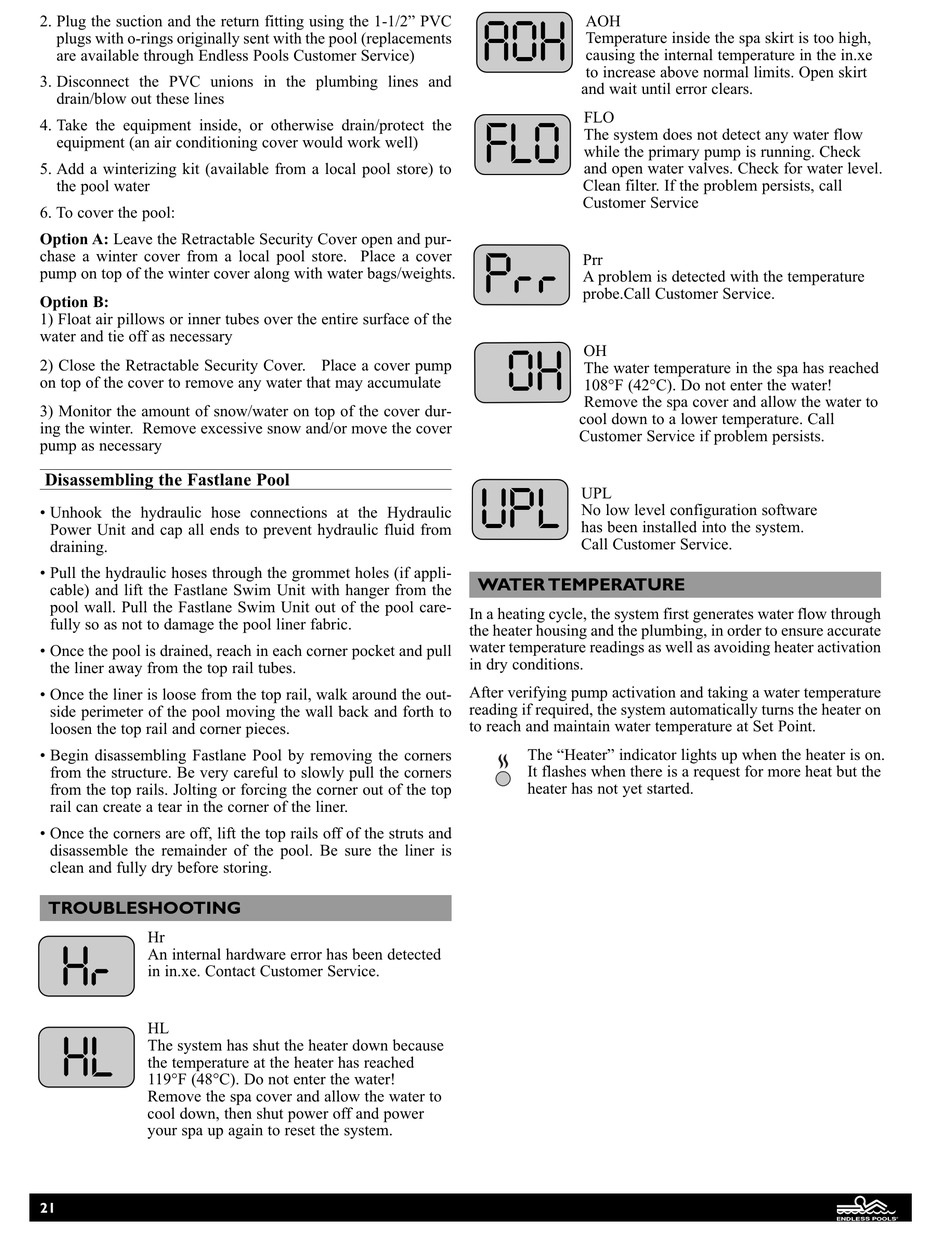

Troubleshooting - Endless Pools Fastlane Installation Manual And User's Manual

2. Plug the suction and the return fitting using the 1-1/2" PVC
plugs with o-rings originally sent with the pool (replacements
are available through Endless Pools Customer Service)
3. Disconnect the PVC unions in the plumbing lines and
drain/blow out these lines
4. Take the equipment inside, or otherwise drain/protect the
equipment (an air conditioning cover would work well)
5. Add a winterizing kit (available from a local pool store) to
the pool water
6. To cover the pool:
Option A: Leave the Retractable Security Cover open and pur-
chase a winter cover from a local pool store. Place a cover
pump on top of the winter cover along with water bags/weights.
Option B:
1) Float air pillows or inner tubes over the entire surface of the
water and tie off as necessary
2) Close the Retractable Security Cover. Place a cover pump
on top of the cover to remove any water that may accumulate
3) Monitor the amount of snow/water on top of the cover dur-
ing the winter. Remove excessive snow and/or move the cover
pump as necessary
Disassembling the Fastlane Pool
• Unhook the hydraulic hose connections at the Hydraulic
Power Unit and cap all ends to prevent hydraulic fluid from
draining.
• Pull the hydraulic hoses through the grommet holes (if appli-
cable) and lift the Fastlane Swim Unit with hanger from the
pool wall. Pull the Fastlane Swim Unit out of the pool care-
fully so as not to damage the pool liner fabric.
• Once the pool is drained, reach in each corner pocket and pull
the liner away from the top rail tubes.
• Once the liner is loose from the top rail, walk around the out-
side perimeter of the pool moving the wall back and forth to
loosen the top rail and corner pieces.
• Begin disassembling Fastlane Pool by removing the corners
from the structure. Be very careful to slowly pull the corners
from the top rails. Jolting or forcing the corner out of the top
rail can create a tear in the corner of the liner.
• Once the corners are off, lift the top rails off of the struts and
disassemble the remainder of the pool. Be sure the liner is
clean and fully dry before storing.

TROUBLESHOOTING

Hr
An internal hardware error has been detected
in in.xe. Contact Customer Service.
HL
The system has shut the heater down because
the temperature at the heater has reached
HL
119°F (48°C). Do not enter the water!
Remove the spa cover and allow the water to
cool down, then shut power off and power
your spa up again to reset the system.
21
AOH
Temperature inside the spa skirt is too high,
causing the internal temperature in the in.xe
OH
to increase above normal limits. Open skirt
and wait until error clears.
FLO
The system does not detect any water flow
while the primary pump is running. Check
FLO
and open water valves. Check for water level.
Clean filter. If the problem persists, call
Customer Service
Prr
A problem is detected with the temperature
probe.Call Customer Service.
OH
The water temperature in the spa has reached
108°F (42°C). Do not enter the water!
Remove the spa cover and allow the water to
cool down to a lower temperature. Call
Customer Service if problem persists.
UPL
No low level configuration software
has been installed into the system.
Call Customer Service.
WATER TEMPERATURE
In a heating cycle, the system first generates water flow through
the heater housing and the plumbing, in order to ensure accurate
water temperature readings as well as avoiding heater activation
in dry conditions.
After verifying pump activation and taking a water temperature
reading if required, the system automatically turns the heater on
to reach and maintain water temperature at Set Point.
The "Heater" indicator lights up when the heater is on.
It flashes when there is a request for more heat but the
heater has not yet started.
